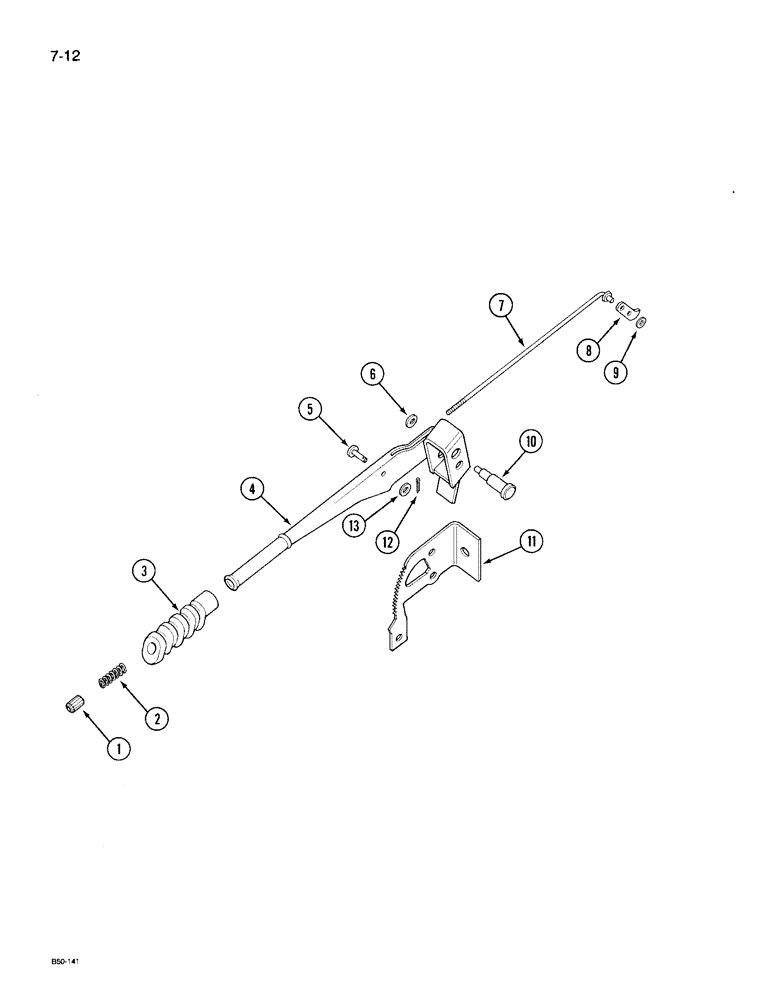

Запчасти Case IH 495 (7-012) - PARK BRAKE HAND LEVER, TWO WHEEL DRIVE TRACTOR (07) - BRAKES

3129929R92

LEVER ASSY.

LEVER ASSEMBLY - hand, park brake, Includes: Ref. 1 - 13

1шт.

1

3125177R1

BUTTON

- hand brake release

1шт.

2

3125184R1

SPRING

- button return

1шт.

3

3125185R1

GRIP

- lever (PVC)

1шт.

4

3125173R1

LEVER

- hand brake

1шт.

5

3125180R1

PIN

- pawl fulcrum

1шт.

6

3125176R1

WASHER

- ratchet fulcrum

1шт.

7

3125178R1

ROD

- pawl

1шт.

8

3125179R1

PAWL

-ratchet

1шт.

9

3125182R1

WASHER

- pawl fulcrum spring

1шт.

10

1502073C1

PIN

- ratchet fulcrum

1шт.

11

1502072C1

RATCHET

- hand brake

1шт.

12

3125183R1

PIN, SPLIT (COTTER)

PIN - cotter, pawl fulcrum

1шт.

13

3125181R1

WASHER

- pawl fulcrum

1шт.
