(6-100) - REAR WHEELS, 38 INCH

Запчасти Case IH 495 (6-100) - REAR WHEELS, 38 INCH (06) - POWER TRAIN

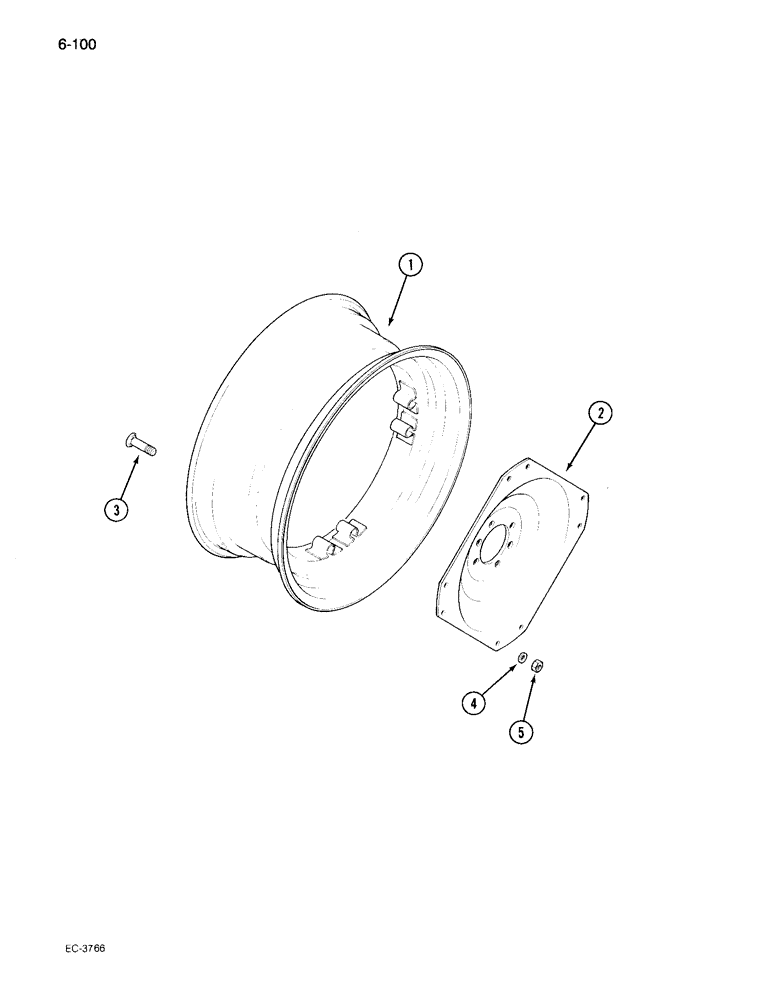

Схема запчастей Case IH 495 - (6-100) - REAR WHEELS, 38 INCH (06) - POWER TRAIN
5
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1265244C1

RIM

WHEEL - complete, DW11-38 (For 12.4 x 38 tires), Includes: Ref. 1 - 5

2шт.

1

1265244C1

RIM

- wheel, DW11-38

1шт.

2

1265242C1

DISC, WHEEL

DISC - wheel, 36 inch

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm, grade 8.8

8шт.

4

1332731C1

WASHER

- 16.8 x 28 x 4 mm

8шт.

5

1332732C1

NUT

- hex, 16 mm, grade 8

8шт.
