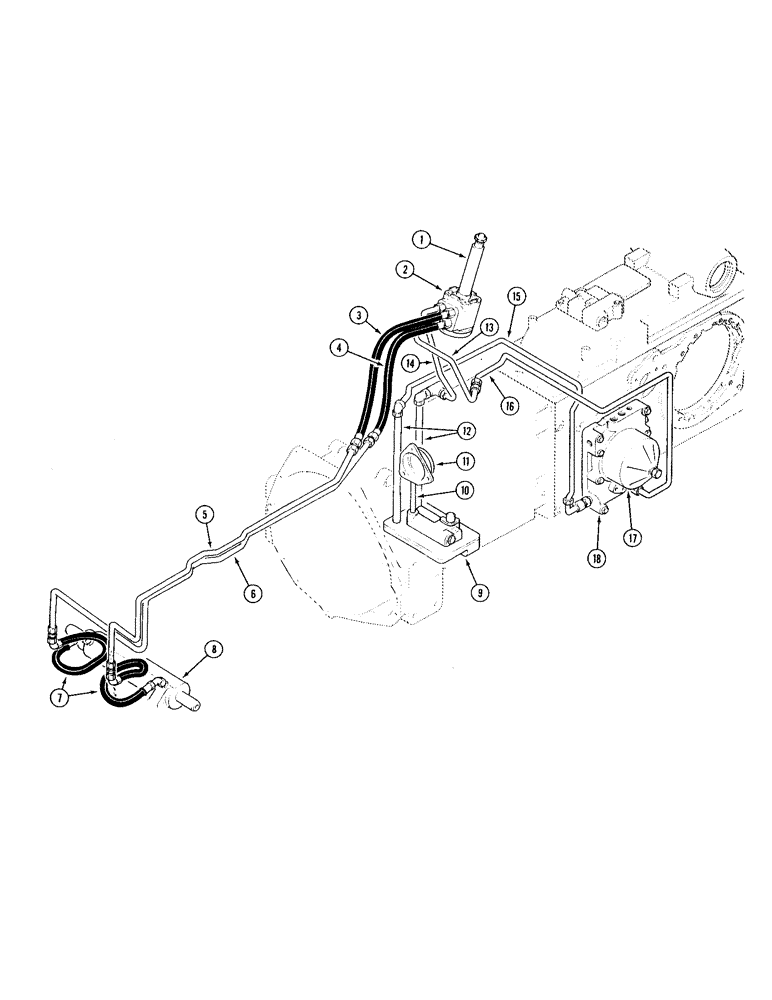

Запчасти Case IH 495 (1-014) - PICTORIAL INDEX, POWER STEERING SYSTEM, WITH 2 SPEED POWER SHIFT (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-3, 2WD tractor

1шт.

2

Integral Power Steering Valve, Pages 5-3, 19, 2WD tractor

1шт.

3

Left Turn Steering Hose, Page 5-5, 2WD tractor

1шт.

4

Right Turn Steering Hose, Page 5-5, 2WD tractor

1шт.

5

Left Turn Steering Tube, Page 5-5, 2WD tractor

1шт.

6

Right Turn Steering Tube, Page 5-5, 2WD tractor

1шт.

7

Power Steering Cylinder Hoses, Page 5-7, 2WD tractor

1шт.

8

Power Steering Cylinders, Page 5-7, 2WD tractor

1шт.

9

Pressure Regulator Valve and Plate, Pages 8-11, 19, 2WD tractor

1шт.

9

Pressure Regulator Valve and Plate, Pages 8-11, 19, 2WD tractor

1шт.

10

Oil Inlet Tube, Page 8-11, 2WD tractor

1шт.

11

IPTO and Clutch Retaining Cage, Page 5-19, 2WD tractor

1шт.

12

Oil Return Tubes, Page 8-11, 2WD tractor

1шт.

13

Forward Power Steering Pressure Tube, Page 5-13, 2WD tractor

1шт.

14

Forward Power Steering Return Tube, Page 5-13, 2WD tractor

1шт.

15

Rear Power Steering Return Tube, Page 5-13, 2WD tractor

1шт.

16

Rear Power Steering Pressure Tube, Page 5-13, 2WD tractor

1шт.

17

Hydraulic Oil Filter, Page 8-3, 2WD tractor

1шт.

18

Multiple Control Valve, Pages 8-7, 9, 2WD tractor

1шт.

1

Steering Shaft Assembly, Page 5-3, dog clutch MFD tractor

1шт.

2

Integral Power Steering Valve, Pages 5-3, 19, dog clutch MFD tractor

1шт.

3

Left Turn Steering Hose, Page 5-9, dog clutch MFD tractor

1шт.

4

Right Turn Steering Hose, Page 5-9, dog clutch MFD tractor

1шт.

5

Left Turn Steering Tube, Page 5-9, dog clutch MFD tractor

1шт.

6

Right Turn Steering Tube, Page 5-9, dog clutch MFD tractor

1шт.

7

Power Steering Cylinder Hoses, Page 5-9, dog clutch MFD tractor

1шт.

8

Power Steering Cylinder, Pages 5-53, 57, dog clutch MFD tractor

1шт.

9

Pressure Regulator Valve and Plate, Pages 8-11, 19, dog clutch MFD tractor

1шт.

10

Oil Inlet Tube, Page 8-11, dog clutch MFD tractor

1шт.

11

IPTO and Clutch Retaining Cage, Page 6-19, dog clutch MFD tractor

1шт.

12

Oil Return Tubes, Page 8-11, dog clutch MFD tractor

1шт.

13

Forward Power Steering Pressure Tube, Page 5-13, dog clutch MFD tractor

1шт.

14

Forward Power Steering Return Tube, Page 5-13, dog clutch MFD tractor

1шт.

15

Rear Power Steering Return Tube, Page 5-13, dog clutch MFD tractor

1шт.

16

Rear Power Steering Pressure Tube, page 5-13, dog clutch MFD tractor

1шт.

17

Hydraulic Oil Filter, Page 8-3, dog clutch MFD tractor

1шт.

18

Multiple Control Valve, Pages 8-7, 9, dog clutch MFD tractor

1шт.
