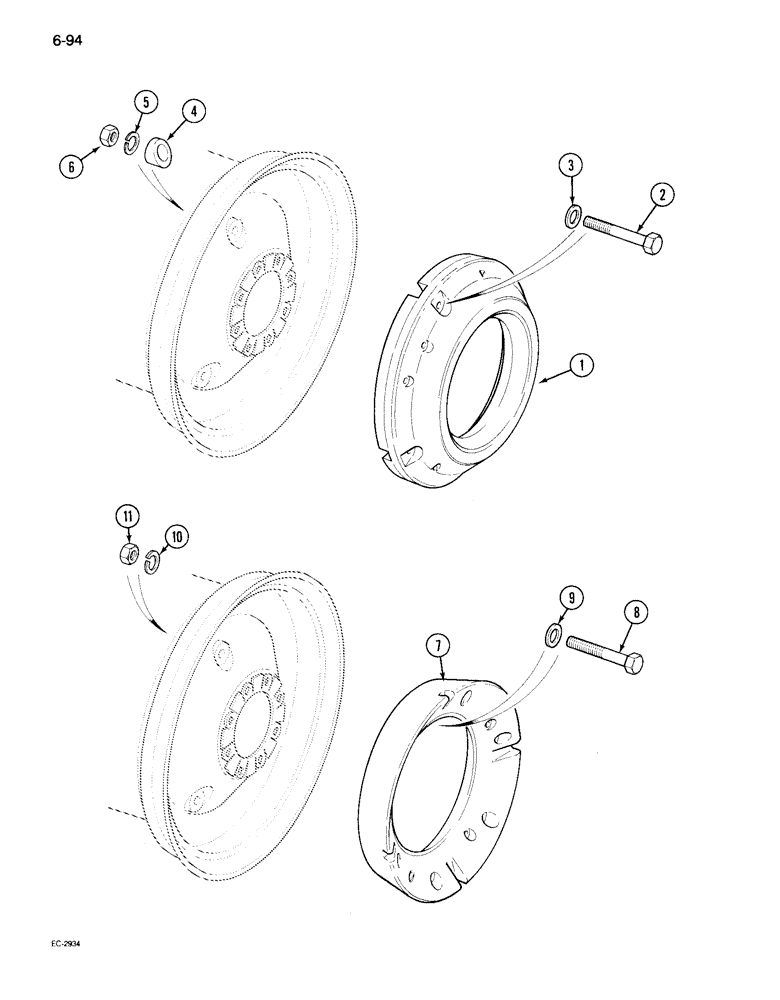

Запчасти Case IH 495 (6-094) - REAR WHEEL WEIGHTS, SOLID TYPE (06) - POWER TRAIN

1

3123758R3

WEIGHT

- 120lbs. (1st set only), 28" or 30" attached clamp wheels

2шт.

2

313-752

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW - cap, hex head, 7/16 NC x 3-1/4 inch, 28" or 30" attached clamp wheels

8шт.

3

495-81009

WASHER,.469" x 1" x .120"

- flat, 15/32 x 1 x 3/32 inch, 28" or 30" attached clamp wheels

8шт.

4

537133R1

SPACER

- taper, 28" or 30" attached clamp wheels

8шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , 28" or 30" attached clamp wheels 7/16"

8шт.

6

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, 28" or 30" attached clamp wheels

8шт.

7

1500992C1

WEIGHT

- 1st set , 28" or 30" Lemmerz wheels

2шт.

8

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

28" or 30" Lemmerz wheels Hex, 5/8"-11 x 3", G5

12шт.

9

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, 28" or 30" Lemmerz wheels

12шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28" or 30" Lemmerz wheels 5/8"

12шт.

11

425-1010

NUT,5/8"-11, G5

28" or 30" Lemmerz wheels 5/8"-11, G5

12шт.
