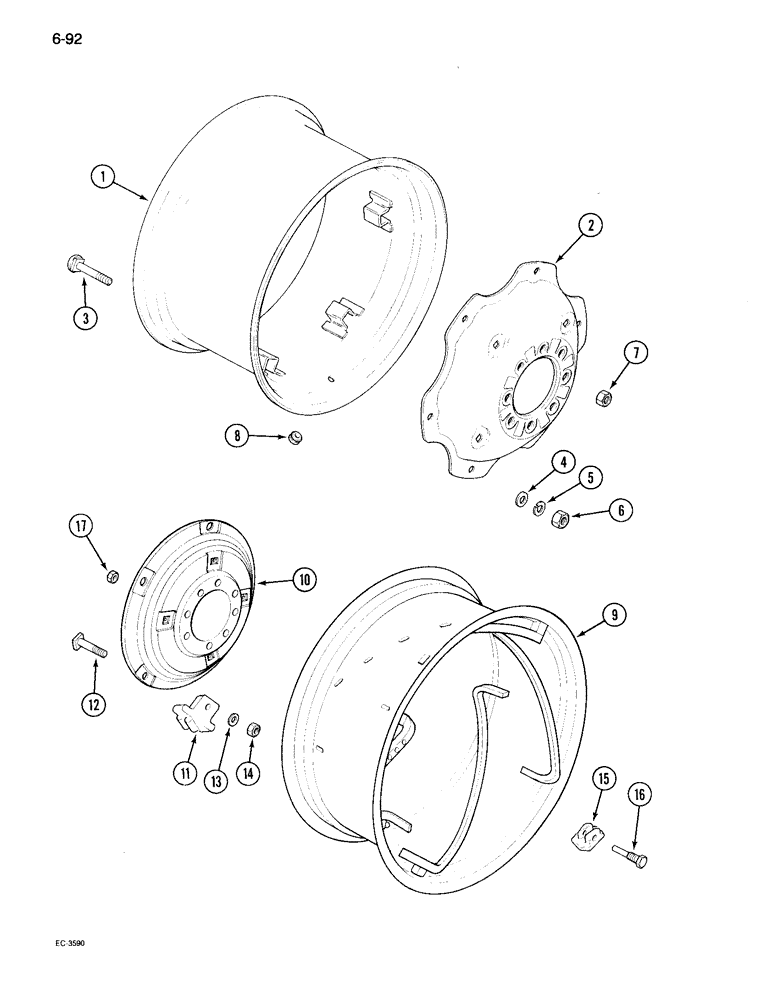

Запчасти Case IH 495 (6-092) - REAR WHEELS, 26, 28 AND 30 INCH (06) - POWER TRAIN

1

3129777R1

RIM

- wheel, DW16-26 (For 18.4 x 26 tire), 26" wheel

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 26" wheel

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/15 x 9/64 inch, 26" wheel

12шт.

5

492-21062

LOCK WASHER,5/8"

26" wheel 5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, 26" wheel

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), 26" Wheel 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 26" wheel

16шт.

8

383697R1

PLUG

- valve hole, 26" wheel

1шт.

1

395855R2

RIM

- wheel, DW16-30 (For 18.4 x 30 tire), 30" heavy duty wheel

2шт.

2

1333149C1

DISC, WHEEL

DISC - 28 and 30 inch wheel, heavy duty wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 30" heavy duty wheel

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/15 x 9/64 inch, 30" heavy duty wheel

12шт.

5

492-21062

LOCK WASHER,5/8"

30" heavy duty wheel 5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, 30" heavy duty wheel

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), 30" Heavy duty wheel 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 30" heavy duty wheel

16шт.

8

383697R1

PLUG

- valve hole, 30" heavy duty wheel

1шт.

9

1282568C1

RIM

- wheel, W12-28 (For 13.6 x 28 or 14.9 x 28 tires) (Order A167901), 28" power adjusted wheel

2шт.

10

1282567C1

DISC, WHEEL

DISC - formed, 28 inch diameter, 28" power adjusted wheel

2шт.

11

399004R1

SHIN

CLAMP - double ramp, 28" power adjusted wheel

10шт.

12

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT - square head, 3/4 NC x 2-1/4 inch, 28" power adjusted wheel

10шт.

13

399007R1

WASHER

- flat, 3/4 inch, 28" power adjusted wheel

10шт.

14

399006R1

WHEEL NUT

- hex, 3/4 inch NC, 28" power adjusted wheel

10шт.

15

A9406

STOP

BODY - stop, 28" power adjusted wheel

4шт.

16

K200142

SCREW,Hex, 9/16" x 2 1/8"

- stop, 28" power adjusted wheel

4шт.

17

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28" power adjusted wheel

16шт.
