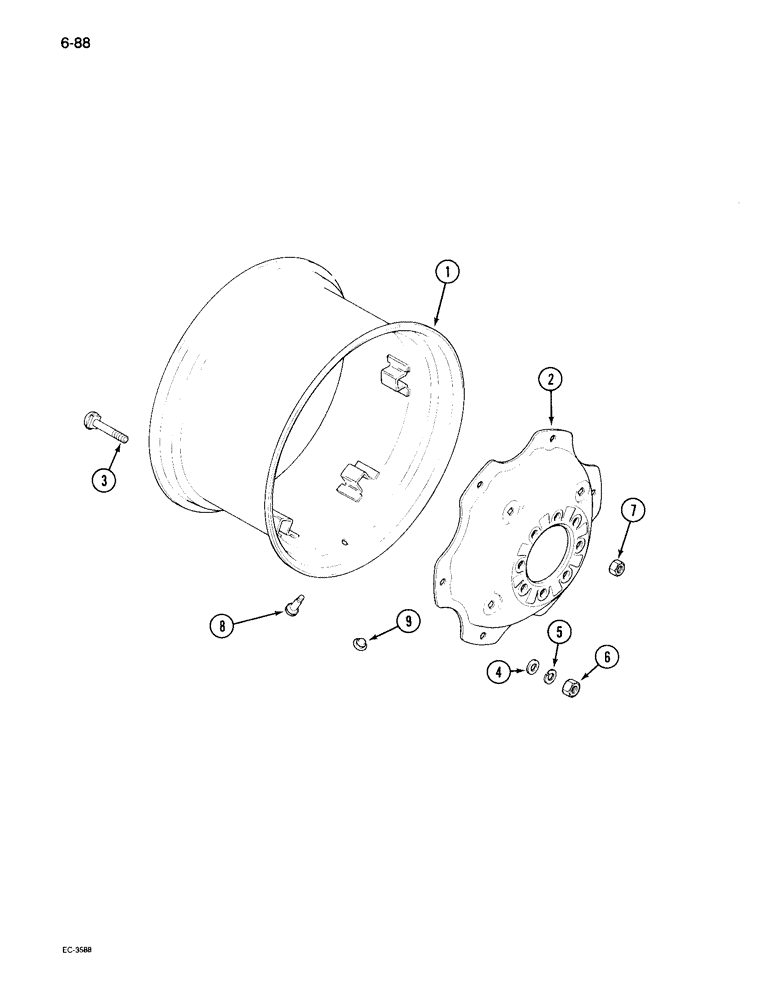

Запчасти Case IH 495 (6-088) - REAR WHEELS, 24 AND 28 INCH (06) - POWER TRAIN

1

382268R91

RIM

- wheel, W7-24 (For 8.3 x 24 tire), 24" dual rear wheels

4шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1), dual rear wheels

4шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 24" dual rear wheels

24шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/15 x 9/64 inch, 24" dual rear wheels

24шт.

5

492-21062

LOCK WASHER,5/8"

24" dual rear wheels 5/8"

24шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, 24" dual rear wheels

24шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), 24" Dual rear wheels 5/8"-18, G8

24шт.

1

361700R92

RIM

- wheel, W10-28 (For 12.4 x 28 tire)(Order G12002), 28" wheels

2шт.

2

361724R1

WHEEL DISC

DISC - 26 and 28 inch wheel (Order 1333149C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 28" wheels

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/15 x 9/64 inch, 28" wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

28" wheels 5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, 28" wheels

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), 28" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28" wheels

16шт.

1

1265034C1

RIM

- wheel, W11-28 (For 13.6 x 28 tire), 28" wheels

2шт.

2

361724R1

WHEEL DISC

DISC - 26 and 28 inch wheel (Order 1333149C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 28" wheels

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/15 x 9/64 inch, 28" wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

28" wheels 5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, 28" wheels

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), 28" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28" wheels

16шт.

1

363988R92

RIM

- wheel, W12-28 (For 14.9 x 28 tire)(Order G45710), 28" wheels

2шт.

2

361724R1

WHEEL DISC

DISC - 26 and 28 inch wheel (Order 1333149C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 28" wheels

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/15 x 9/64 inch, 28" wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

28" wheels 5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, 28" wheels

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), 28" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28" wheels

16шт.

8

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058), 28" wheels

2шт.

9

383697R1

PLUG

- valve hole, 28" wheels

2шт.
