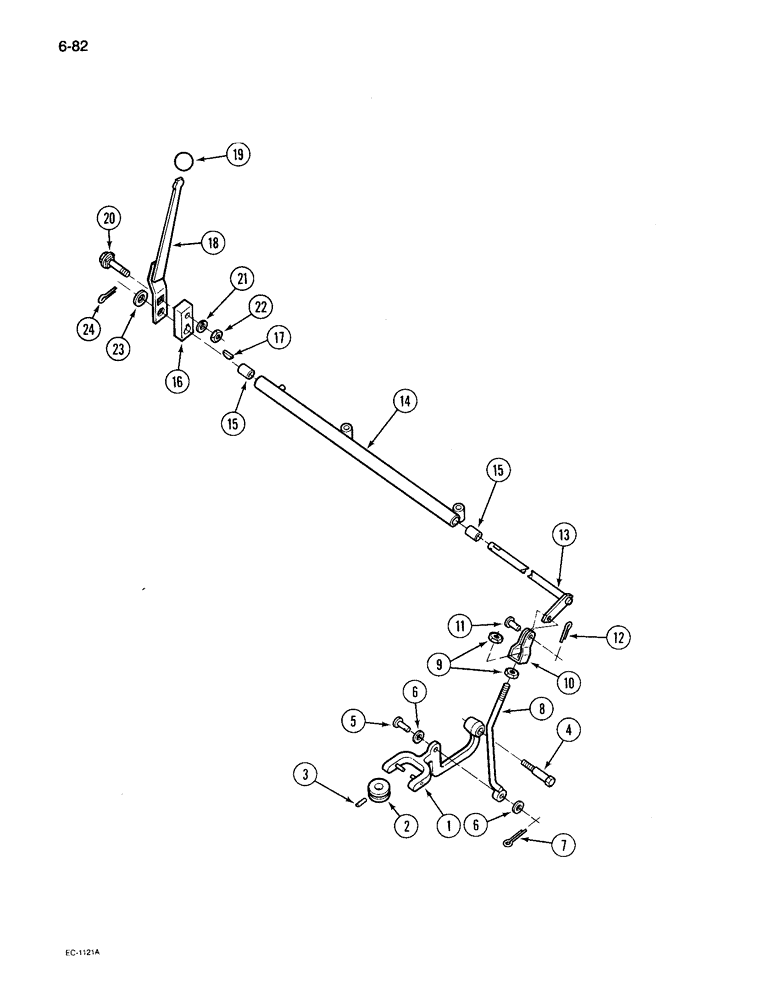

Запчасти Case IH 495 (6-082) - INDEPENDENT POWER TAKE OFF CONTROL (06) - POWER TRAIN

1

94344C2

LEVER

ASSEMBLY - IPTO, control

1шт.

2

530813R2

GUIDE BUSHING

COLLAR - IPTO, control

1шт.

3

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

4

401754R1

BOLT,3/8" - 16 x 2.20"

- control arm pivot shaft

1шт.

5

138084

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/8 x 1-1/16 inch

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

8

3129234R2

ROD ASSY.

ROD ASSEMBLY - IPTO, control

1шт.

9

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF

2шт.

10

3129237R1

CLEVIS

- IPTO control

1шт.

11

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis, 5/16 x 23/32 inch

1шт.

12

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

13

3129240R1

SHAFT ASSY.

SHAFT - cross-over, IPTO control

1шт.

14

3129238R91

SUPPORT ASSY.

SUPPORT ASSEMBLY - IPTO control shaft, Includes: Ref. 15

1шт.

15

528839R1

BUSHING

- control shaft support

2шт.

16

538719R1

PIVOT

- control handle

1шт.

17

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

18

1536837C1

LEVER ASSY.

LEVER ASSEMBLY - adjusting, IPTO

1шт.

19

99863C1

BUTTON

KNOB - IPTO hand lever (Yellow)

1шт.

20

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x1-1/4 inch

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

23

495-81016

WASHER,17/32" x 3/4" x .060"

- flat, 17/32 x 3/4 x 3/32 inch

1шт.

24

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.
