Запчасти Case IH 495 (6-074) - MECHANICAL FRONT DRIVE "CARRARO", DRIVE SHAFT AND SHIELD (06) - POWER TRAIN

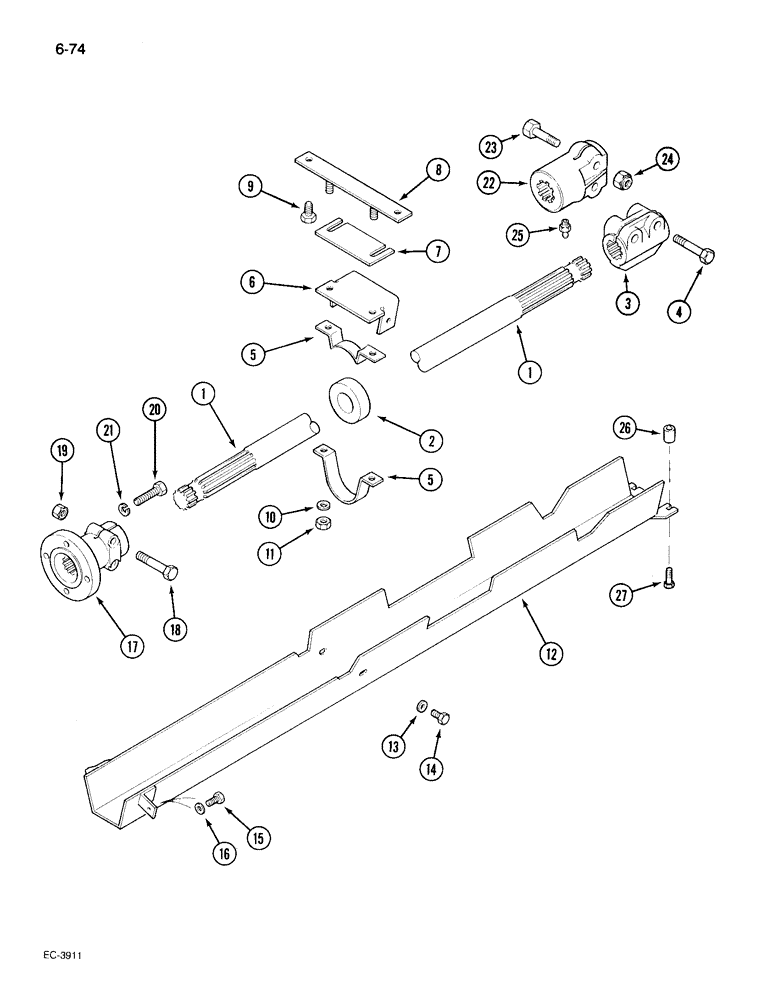

Схема запчастей Case IH 495 - (6-074) - MECHANICAL FRONT DRIVE "CARRARO", DRIVE SHAFT AND SHIELD (06) - POWER TRAIN
14
2
5
5
26
13
8
25
24
19
12
1
10
22
23
1
27
20
11
6
16
18
9
21
3
4
15
17
7

Артикул

Название

Примечание

Количество

1

1537422C1

DRIVE SHAFT

SHAFT - drive

1шт.

2

82236C92

BALL BEARING,32 mm ID x 62 mm OD x 19 mm

ASSEMBLY

1шт.

3

90030C2

FERRULE

COUPLING - rear

1шт.

4

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

- 12 mm x 45 mm

2шт.

5

82234C1

CLAMP

HOUSING - bearing

1шт.

6

82211C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - bearing

1шт.

7

82226C1

SHIM

- 0.5 mm thick

1шт.

7

82227C1

SHIM

- 1.0 mm thick

1шт.

7

82228C1

SHIM

- 2.0 mm thick

1шт.

8

89485C3

BAR ASSY.

BAR ASSEMBLY - bearing support

1шт.

9

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

10

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

11

829-1310

NUT,M10, Cl 10

- hex, 10 - 1.25 mm

2шт.

12

1537406C1

GUARD ASSY.

SHIELD - drive shaft

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm x 20 mm

2шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

16

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

17

1537306C2

FLANGE

- 24 splines

1шт.

18

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

NUT - hex, 10 - 1.25 mm

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

4шт.

21

892-11010

LOCK WASHER,M10

4шт.

22

1537839C1

SPLINED COUPLING,24T

COUPLING - use with Carraro transfer box

1шт.

23

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

Use with Carraro transfer box Hex, M10 x 60, 8.8

2шт.

24

905822R1

NUT

- use with Carraro transfer box

2шт.

25

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Use with transfer box M6 x 1, 16mm lg

1шт.

26

1537849C1

SPACER

- shield mounting

2шт.

27

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- shield mounting

2шт.

Выбрано товаров: 29
