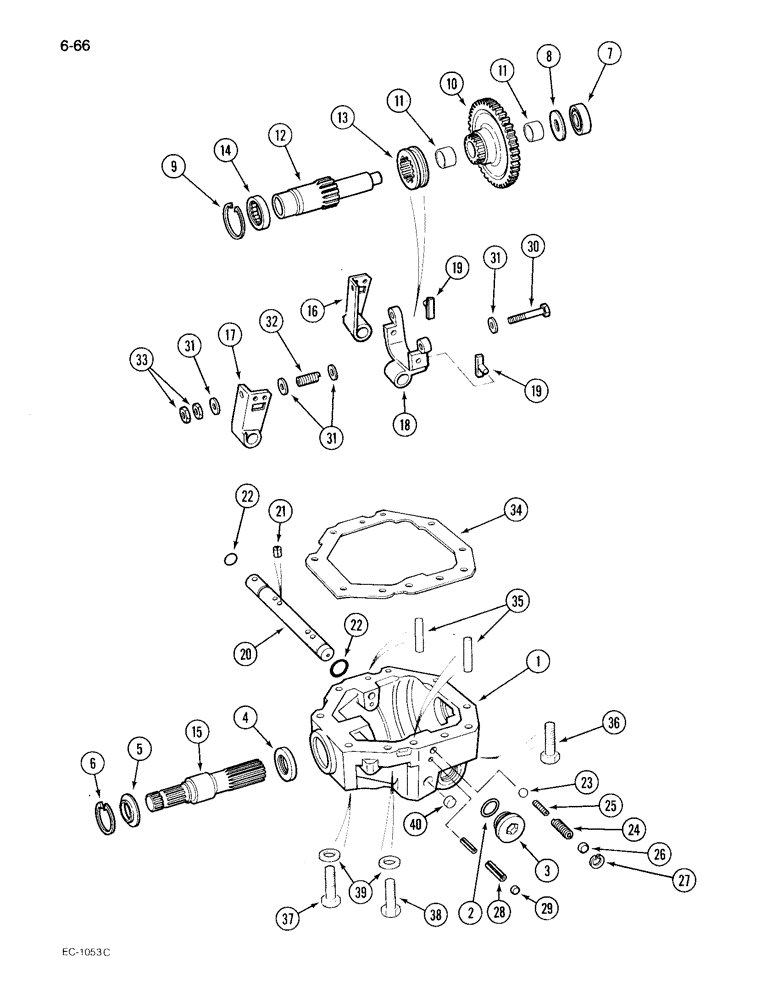

Запчасти Case IH 495 (6-066) - MECHANICAL FRONT DRIVE "ZF", TRANSFER GEARBOX, DOG CLUTCH (06) - POWER TRAIN

1

81085C2

HOUSING

- dog clutch

1шт.

2

31354R1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

- 32.5 x 2.65 mm

1шт.

3

905476R1

PLUG

- drain, 36 mm - 4.00

1шт.

4

81086C2

OIL SEAL,37mm ID x 56mm OD x 10mm Thk

- oil

1шт.

5

81087C2

SNAP RING

RETAINER - output shaft

1шт.

6

934443R1

SNAP RING,M58, Int

RING - retaining, internal, 61.74 mm

1шт.

7

1536482C1

BEARING, ROLLER, CYL,19.99mm ID x 52mm OD x 15mm W

BEARING - roller

1шт.

8

81089C2

THRUST WASHER

WASHER - thrust

1шт.

9

933237R1

SNAP RING,M55, Int

RING - retaining, internal, 55 x 2 mm

1шт.

10

81090C2

GEAR

ASSEMBLY - driven, 42 teeth, Includes: Ref. 11

1шт.

11

1342515C1

BUSHING

- driven gear

2шт.

12

81091C2

SHAFT

- driven gear

1шт.

13

81092C1

RING

SLEEVE - gear engagement

1шт.

14

81093C2

BEARING, ROLLER

BEARING - roller

1шт.

15

81158C2

SHAFT

- output

1шт.

16

81159C2

LEVER

- right

1шт.

17

81160C2

LEVER

- left

1шт.

18

81161C2

FORK

- shift

1шт.

19

81162C1

PLUG

PAD - shift, sliding

2шт.

20

81163C2

SHAFT

- MFD control

1шт.

21

31372R1

PIN,M8 x 18, Coiled

- coiled spring, 8 x 18 mm

4шт.

22

31371R1

O-RING,Cl 8, 17MM ID x 2.65 Thk

- 17 x 2.65 mm

2шт.

23

933975R1

BALL,14mm Dia

- 14 mm, class III

2шт.

24

81164C2

SPRING

- compression

2шт.

25

81165C2

SPRING

- compression

2шт.

26

931620R1

PLUG,M15, Tapered

- cup

2шт.

27

933687R1

SNAP RING,M15, Int

RING - retaining, internal, 16 mm O.D.

2шт.

28

617941R1

PIN,5/16" x 2", Coiled

2шт.

29

933536R1

PLUG,M10, Conical

- cup

2шт.

30

813-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

- hex, 10 mm - 1.5 x 75 mm

2шт.

31

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- flat, 10 mm

8шт.

32

81166C2

SPRING

- compression

2шт.

33

933681R1

THIN NUT,Thin, M10 x 1.5, Cl 04

- hex, 10 mm

4шт.

34

1970896C1

GASKET

- transfer gear box

1шт.

35

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

36

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

2шт.

37

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

38

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

3шт.

39

396-21053

WASHER,17/32" x 1 1/16" x .134"

7шт.

40

3401931R1

PLUG

CUP - plug, 22 mm

2шт.
