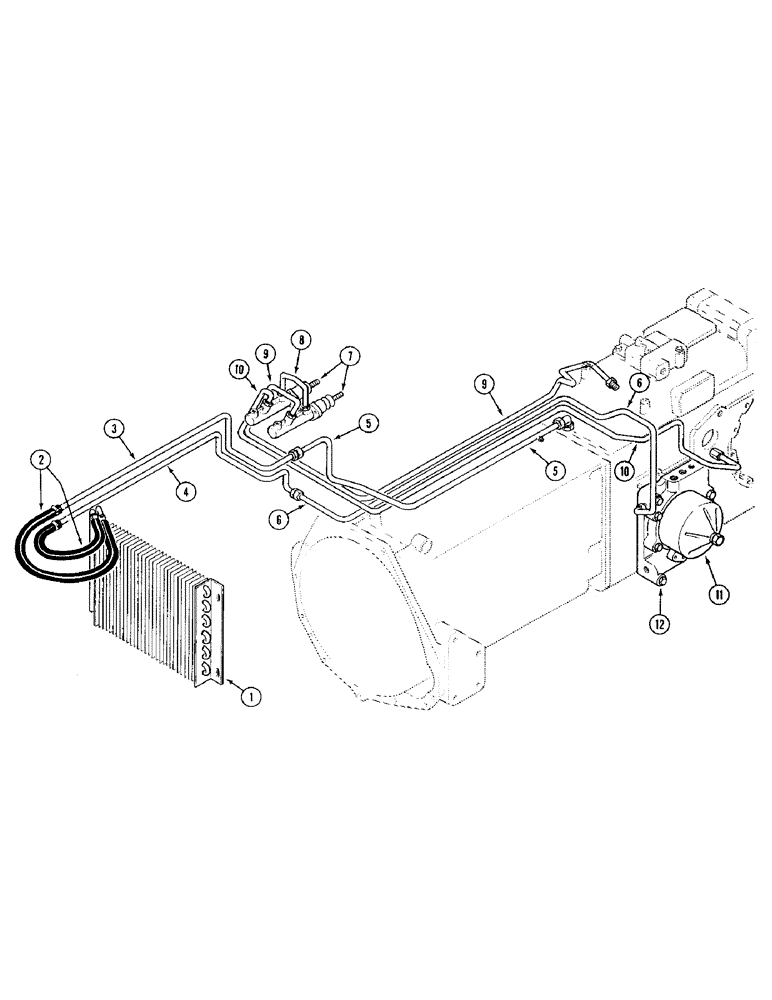

Запчасти Case IH 495 (1-010) - PICTORIAL INDEX, OIL COOLER AND BRAKE TUBES (00) - PICTORIAL INDEX

1

Oil Cooler, Page 8-5

1шт.

2

Oil Cooler Inlet and Outlet Hoses, Page 8-5

1шт.

3

Oil cooler Front Return Tube, Page 8-5

1шт.

4

Oil cooler Front Supply Tube, Page 8-5

1шт.

5

Oil Cooler Rear Return Tube, Page 8-5

1шт.

6

Oil Cooler Rear Supply Tube, Page 8-5

1шт.

7

Brake Master Cylinders, Pages 7-5, 7

1шт.

8

Master Cylinder Equalizer Tube, Page 7-5

1шт.

9

Right Brake Tube, Page 7-5

1шт.

10

Left Brake Tube, Page 7-5

1шт.

11

Hydraulic Oil Filter, Page 8-3

1шт.

12

Multiple Control Valve, Pages 8-7, 9

1шт.
