Запчасти Case IH 495 (6-048) - TRANSMISSION RANGE SHIFT CONTROLS, WITH FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

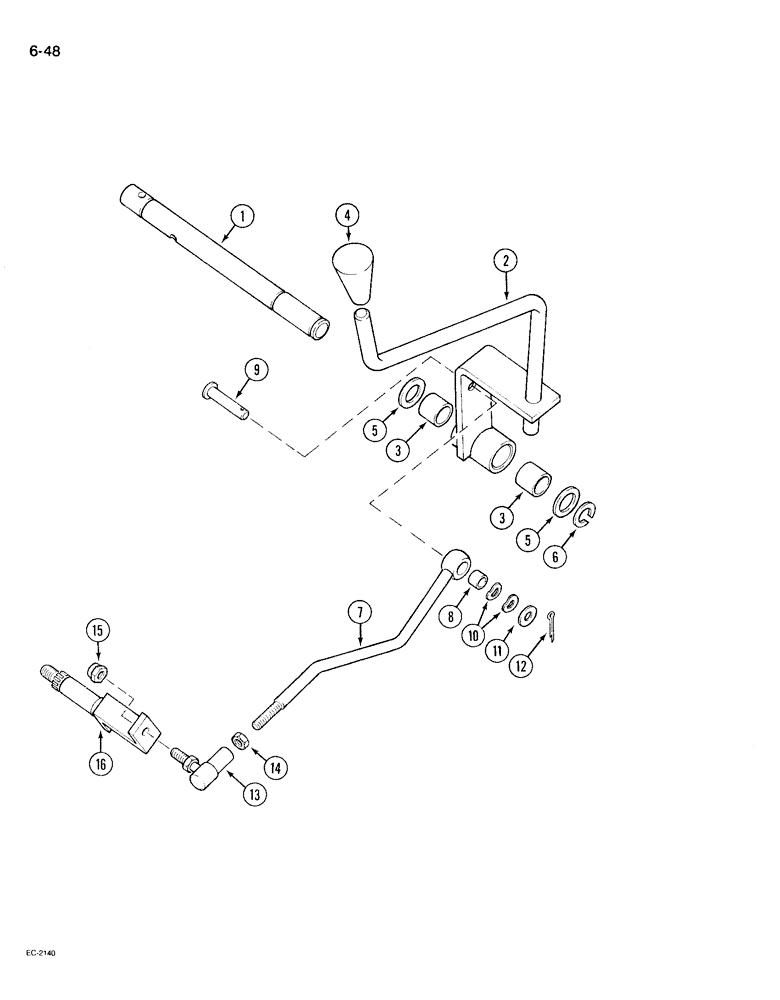

Схема запчастей Case IH 495 - (6-048) - TRANSMISSION RANGE SHIFT CONTROLS, WITH FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN
5
11
2
6
5
1
8
14
13
16
3
10
3
7
15
4
9
12

Артикул

Название

Примечание

Количество

1

3129270R1

SHAFT

- idle, range shift lever

1шт.

2

3129271R95

LEVER ASSY.

LEVER ASSEMBLY - range shift, Includes: Ref. 3

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

- lever

2шт.

4

1332762C1

BALL KNOB

KNOB - range lever

1шт.

5

615192R1

WASHER

- flat, 29/64 x 1-1/4 x 1/64 inch

2шт.

6

454331R1

SNAP RING,#87, Ext

1шт.

7

1526648C1

ROD ASSY.

ROD ASSEMBLY - range shift, rear, Includes: Ref. 8

1шт.

Use 1536646C1 rod

1шт.

8

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

- rod end

1шт.

9

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN - clevis, 3/8 x 1-7/32 inch

1шт.

10

83723R1

WAVE WASHER

- spring

2шт.

11

95-81079

WASHER,13/32" x 3/4" x .024"

- plain, 13/32 x 5/8 x 3/64 inch

1шт.

12

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

1500497C1

BALL JOINT

JOINT ASSEMBLY - ball, 7/16 inch

1шт.

14

1500536C1

JAM NUT

- hex jam, 7/16 inch NF

1шт.

15

231-4617

LOCK NUT,7/16"-20, GB

NUT - lock, 7/16 inch NF

1шт.

16

1536518C1

ARM ASSY.

ARM ASSEMBLY - range shift (See Figure 6-054)

1шт.
