Запчасти Case IH 495 (6-046) - TRANSMISSION RANGE SHIFT CONTROL, WITHOUT FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

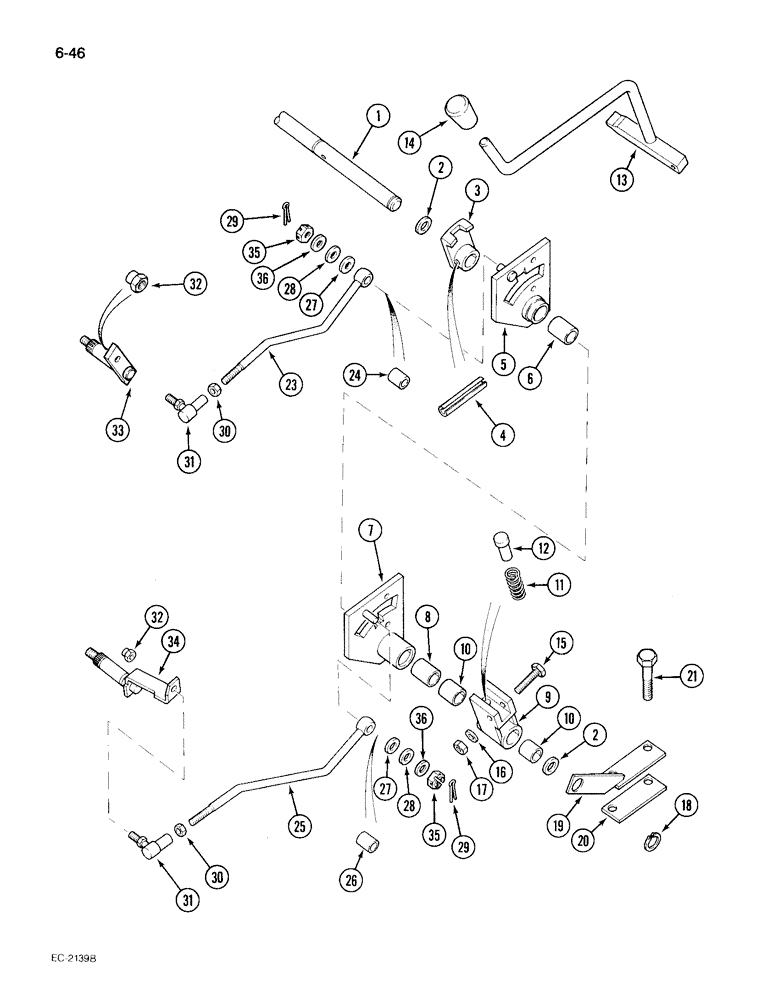

Схема запчастей Case IH 495 - (6-046) - TRANSMISSION RANGE SHIFT CONTROL, WITHOUT FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN
20
35
18
31
32
34
28
31
32
27
25
30
9
15
33
23
4
13
2
5
7
16
29
24
26
21
36
14
2
17
36
10
1
27
35
19
29
12
30
8
28
11
6
3
10

Артикул

Название

Примечание

Количество

1

3129155R2

SHAFT

- idle, range shift lever

1шт.

2

615192R1

WASHER

- flat, 28/32 x 1-1/4 x 1/32 inch

1шт.

3

98573C1

LEVER

GATE ASSEMBLY - shift

1шт.

4

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

5

1536634C1

LEVER

ASSEMBLY - range shift (L/R), Includes: Ref. 6

1шт.

6

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

7

1536635C1

LEVER ASSY.

LEVER ASSEMBLY - range shift (H/N), Includes: Ref. 8

1шт.

8

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

9

3129214R93

HOUSING ASSY.

HOUSING ASSEMBLY - selector arm, Includes: Ref. 10

1шт.

10

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

- housing

2шт.

11

71486C1

SPRING

- compression

1шт.

12

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

13

3129268R4

LEVER ASSY.

LEVER ASSEMBLY - range shift

1шт.

14

1265216C1

BALL KNOB

KNOB - range shift lever

1шт.

15

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

16

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

17

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

18

454331R1

SNAP RING,#87, Ext

1шт.

19

1287659C1

SUPPORT

BRACKET ASSEMBLY - shift lever

1шт.

20

1287660C1

PLATE

- shim

1шт.

21

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

23

1536646C1

ROD ASSY.

ROD ASSEMBLY - range shift (L/R), Includes: Ref. 24

1шт.

23

1537150C1

ROD ASSY.

ROD ASSEMBLY - range shift (L/R)(Orchard), Includes: Ref. 24

1шт.

24

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

- rod end

1шт.

25

1536648C1

ROD ASSY.

ROD ASSEMBLY - range shift (H/N), Includes: Ref. 26

1шт.

25

1537152C1

ROD ASSY.

ROD ASSEMBLY - range shift (H/N) (Orchard tractor), Includes: Ref. 26

1шт.

26

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

- rod end

1шт.

27

83723R1

WAVE WASHER

- spring

2шт.

28

95-81079

WASHER,13/32" x 3/4" x .024"

- flat, 13/32 x 5/8 x 3/64 inch

2шт.

29

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

30

1500536C1

JAM NUT

- hex, jam, 7/16 inch NF

2шт.

31

1500497C1

BALL JOINT

JOINT ASSEMBLY - ball, 7/16 inch, type G-4

2шт.

32

274841

BEARING CONE,2.9528" ID x 0.9843"

NUT - lock, nylon insert, 7/16 inch NF

2шт.

33

1536518C1

ARM ASSY.

ARM ASSEMBLY - range shift (L/R) (See Figure 6-052)

1шт.

34

1536657C1

ARM ASSY.

ARM ASSEMBLY - range shift (H/N) (See Figure 6-052)

1шт.

35

425-126

SLOTTED NUT,3/8"-16, G5

NUT - hex slotted, 3/8 inch NC, grade 8

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

Выбрано товаров: 37
