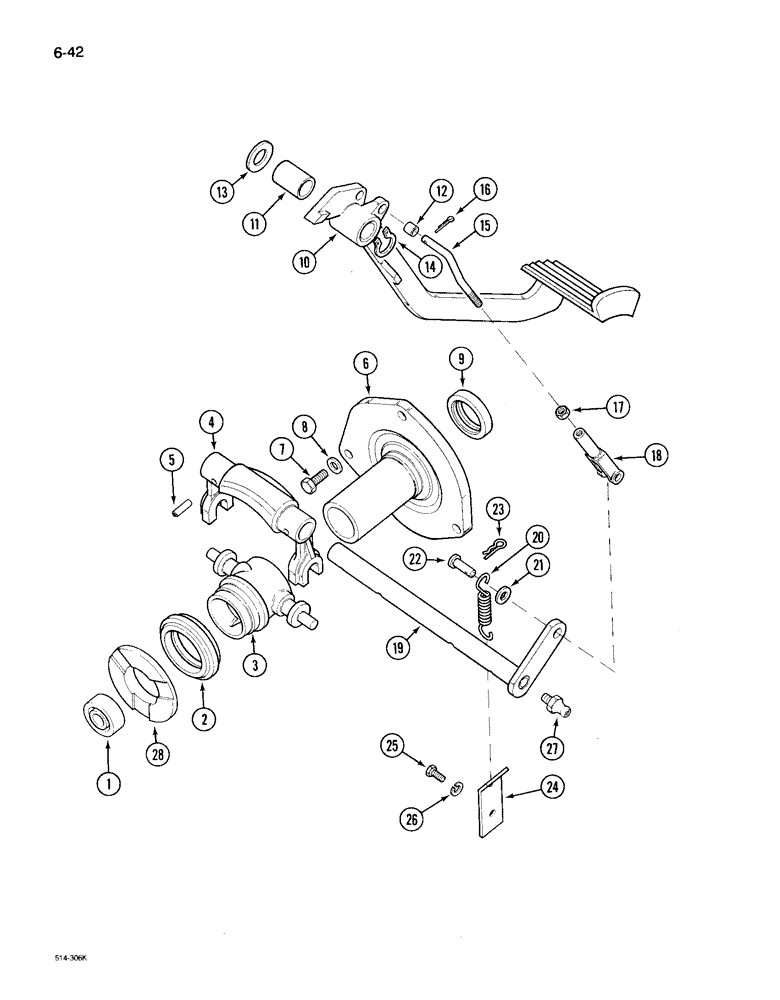

Запчасти Case IH 495 (6-042) - CLUTCH CONTROLS (06) - POWER TRAIN

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING - ball, clutch pilot

1шт.

2

85104C91

BEARING, BALL

BEARING - ball, clutch release

1шт.

3

1971045C1

BEARING CARRIER,Clutch

- clutch release (11 inch Laycock clutch)

1шт.

3

1970934C1

SLEEVE

- clutch release (12 inch heavy duty Rockford clutch)

1шт.

4

398342R2

CLUTCH FORK

FORK - clutch release

1шт.

5

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

6

71229C2

SLIPPER

CARRIER - clutch release sleeve

1шт.

7

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

8

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

3шт.

9

108982C1

OIL SEAL

SEAL - oil

1шт.

10

1500212C93

PEDAL ASSY.

PEDAL ASSEMBLY - clutch, with bushing, Includes: Ref. 11 and 12

1шт.

11

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

- clutch pedal

1шт.

12

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

- clutch operating rod

1шт.

13

495-81054

WASHER,0.91" ID x 1.38" OD x 0.06" Thk

- plain, 29/32 x 1-3/8 x 1/16 inch

1шт.

14

454331R1

SNAP RING,#87, Ext

1шт.

15

71086C1

ROD ASSY.

ROD ASSEMBLY - clutch operating

1шт.

16

38-812

PIN, SPLIT (COTTER)

PIN - cotter, 1/8 x 3/4 inch

1шт.

17

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

18

1500764C1

CLEVIS

- adjustable, rod end

1шт.

18

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - light adjustable (Optional to 1500764C1)

1шт.

19

1288115C2

PIN

SHAFT ASSEMBLY - clutch release

1шт.

20

1500587C2

SPRING

- bearing pre-load

1шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

22

74158H

CLEVIS PIN,3/8" x 1.344"

PIN - clevis, 3/8 x 1-11/32 inch

1шт.

23

3114469R1

SPLIT PIN/SAFETY PIN

PIN - quick release

1шт.

24

1500594C1

PLATE

- spring anchor

1шт.

25

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

26

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease, 65 degree, 1/4 inch hole

2шт.

28

1970876C2

THRUST WASHER

WASHER - thrust

1шт.
