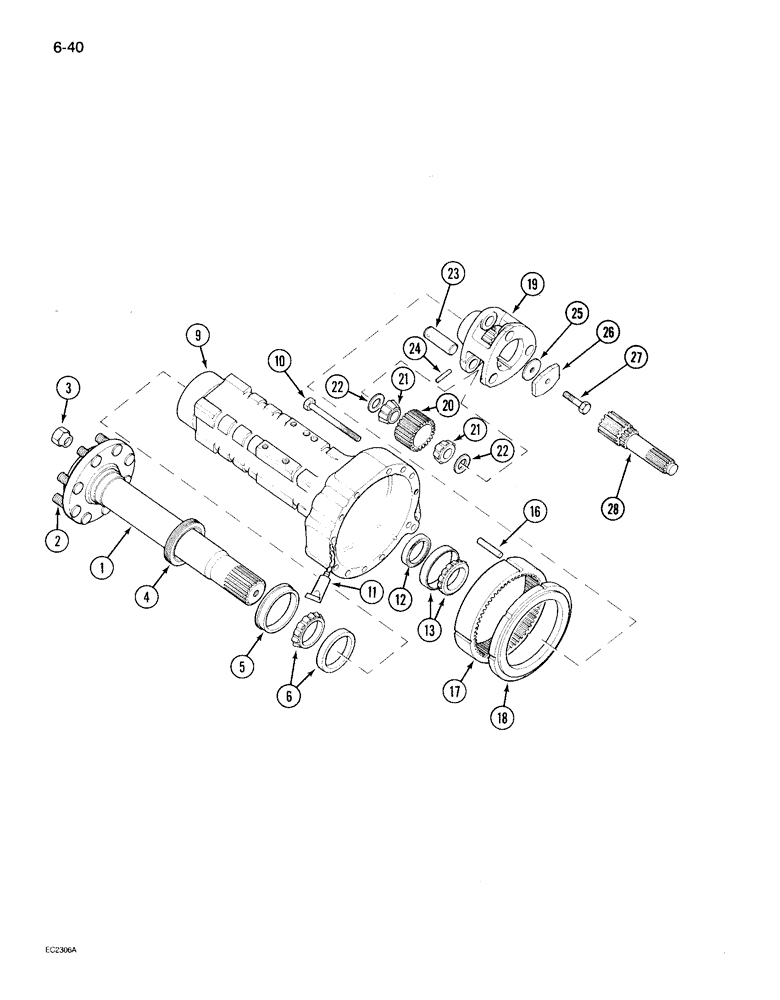

Запчасти Case IH 495 (6-040) - REAR AXLE AND CARRIER (06) - POWER TRAIN

1

404340R21

HALF SHAFT

AXLE - assembly, rear (Order 1349300C1), Includes: Ref. 2

2шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT - rear wheel mounting

8шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- rear wheel mounting

16шт.

4

105470C1

OIL SEAL

SEAL - oil, rear axle outer

2шт.

5

399754R1

SLEEVE

- wear

2шт.

6

1500904C91

ROLLER BEARING

ASSEMBLY - roller, (Order 102161H)

2шт.

9

94225C1

AXLE CARRIER

CARRIER - rear axle, left

1шт.

9

94226C1

AXLE CARRIER

CARRIER - rear axle, right

1шт.

10

26-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 8

- hex, 5/8 NC x 4-1/4 inch, grade 8 (11/52 bevel set)

22шт.

10

26-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8 (12/53 bevel set)

22шт.

11

B17555

LOCTITE

SEALANT - gasket maker No. 515, 50 ml tube

1шт.

12

380200R92

OIL SEAL

- oil, rear axle inner

2шт.

12

530094R1

SEAL

- oil, Serial Range: (Optional-380200R92)

2шт.

13

298188R91

BEARING ASSY

ASSEMBLY - roller, rear axle inner

2шт.

13

1500907C91

ROLLER BEARING

ASSEMBLY - roller, Serial Range: (Optional-299188R91)

2шт.

16

529685R1

DOWEL

PIN - dowel, 3/8 x 2-1/4 inch

6шт.

17

535316R1

GEAR, RING

GEAR - ring, 66 teeth

2шт.

18

114620C1

RING,260mm OD

- brake outer disc

2шт.

19

404339R3

PINION CARRIER

CARRIER - planet gear

2шт.

20

399784R2

PINION

GEAR - planet, 25 teeth

6шт.

21

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone, planet gear, inner

12шт.

65420C1

SHIM KIT

KIT - service, planet gear shim, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.049 inch

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.056 inch

3шт.

23

399788R1

PIN

- planet shaft

6шт.

24

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

65422C1

SHIM KIT

KIT - service, rear axle retainer shims, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.012 inch

3шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.0299 inch

2шт.

26

399748R1

SPACER

- planet carrier

2шт.

27

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch, grade 8

2шт.

28

404338R1

SHAFT

- planetary drive, right

1шт.

28

404337R1

SHAFT

- planetary drive, left

1шт.
