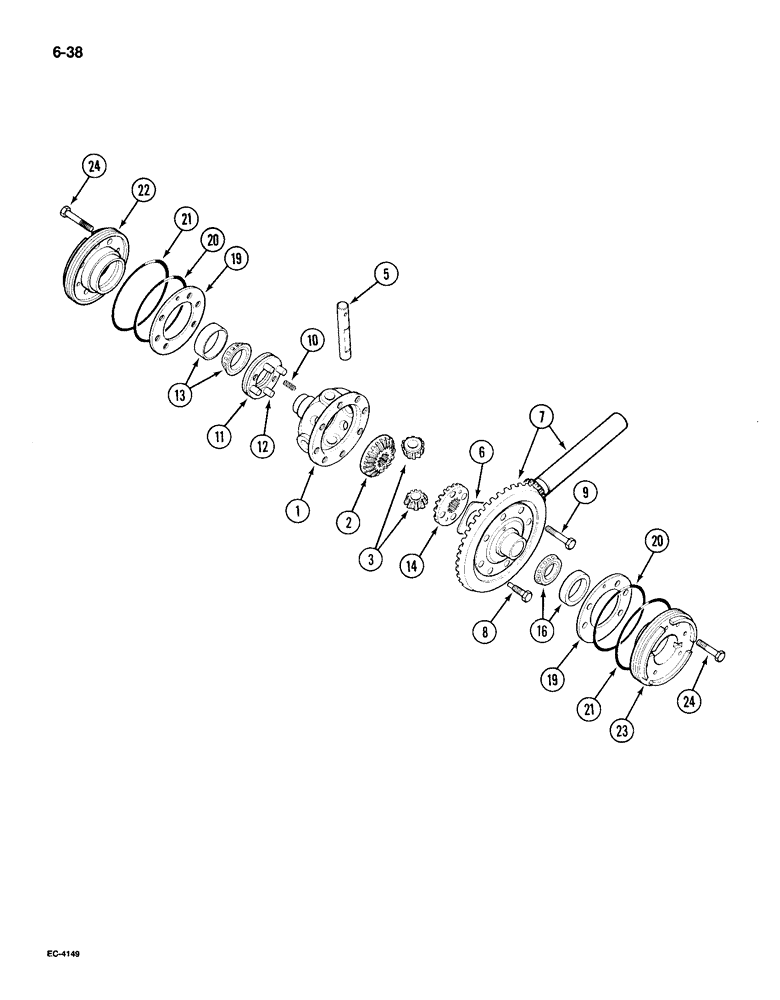

Запчасти Case IH 495 (6-038) - DIFFERENTIAL (06) - POWER TRAIN

1

399763R1

PINION CARRIER

CARRIER - differential

1шт.

2

404336R1

PINION

GEAR - bevel, differential, 20 teeth

1шт.

3

399776R1

PINION

GEAR - differential pinion, 10 teeth

2шт.

5

399775R1

SHAFT

- differential pinion

1шт.

6

399778R1

THRUST WASHER

- thrust, differential bevel gear

1шт.

7

94252C1

GEAR, BEVEL

GEAR - bevel, with matched shaft, 11/52 teeth (MFD tractor and 2WD orchard tractor)

1шт.

7

99449C1

GEAR, BEVEL

GEAR - bevel, with matched shaft, 12/53 teeth (2WD tractor)

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT - dowel, hex, 1/2 NC x 2-1/8 inch

1шт.

9

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

7шт.

10

400867R1

SPRING

- differential lock

2шт.

11

399764R11

LOCKING RING

RING ASSEMBLY - differential lock, Includes: Ref. 12

1шт.

12

399765R1

PIN

- coupling

4шт.

13

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

ASSEMBLY - roller, (Order 1054974)

1шт.

14

3129493R1

PINION

GEAR - bevel, differential

1шт.

16

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

ASSEMBLY - roller, (Order 105496H)

1шт.

65419C1

BEARING CARRIER

KIT - service differential bearing carrier shims, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.012 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

2шт.

20

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

- 7-1/2 ID x 3/16 inch wide

2шт.

This O-ring slides over the step on the backside (inside) step of the differential carrier. In some instances, this O-ring has a tendency to roll off when installing the carrier. If this happens, there are two methods that will help, but do not do this untiil you have gone throught the shimming procedures and are ready to install the carrier: 1. Apply a small amount of grease to the O-ring to help retain it. or 2. With clean surfaces (free of grease and oil) put a small amount of super glue at the 12-3-6-9

1шт.

21

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

- 7-1/2 ID x 1/16 inch wide, class 6

2шт.

22

399770R2

BEARING CARRIER

CARRIER - differential bearing, right

1шт.

23

399769R2

BEARING CARRIER

CARRIER - differential bearing, left

1шт.

24

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.
