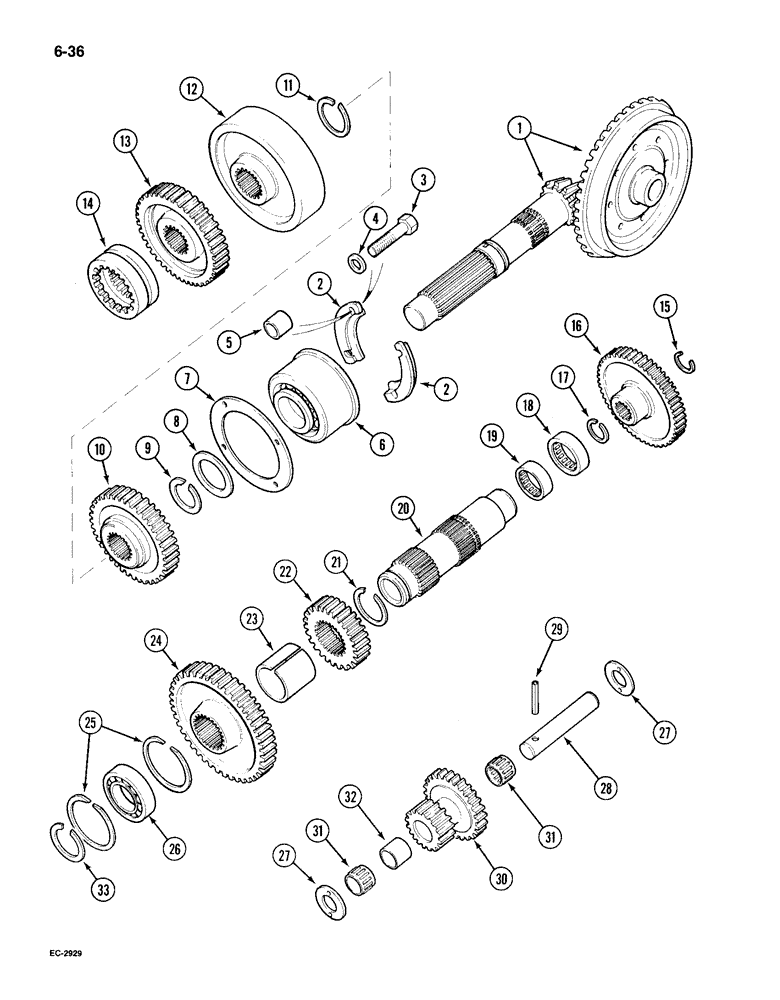

Запчасти Case IH 495 (6-036) - RANGE TRANSMISSION, MFD TRACTOR AND 2 WHEEL DRIVE ORCHARD TRACTOR (06) - POWER TRAIN

1

94252C1

GEAR, BEVEL

GEAR - bevel with matched shaft, 11/52 teeth

1шт.

2

83299C1

RETAINER

- main shaft bearing (MFD Tractor)

2шт.

2

65784C2

RETAINER

- main shaft bearing (2WD Orchard Tractor)

1шт.

3

NLS

NO LONGER SERVICED

4шт.

4

65787C1

WASHER

- bearing, retainer bolt

3шт.

5

94323C1

BUSHING

- bearing retainer (MFD Tractor)

1шт.

6

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

- main shaft (MFD Tractor)

1шт.

6

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

- main shaft (2WD Orchard Tractor)

1шт.

65423C1

SHIM KIT

KIT - shim, main shaft bearing cage, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.004 inch

2шт.

7

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

5шт.

8

65788C1

WASHER

- thrust, bevel pinion shaft

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining, main shaft bearing

1шт.

10

82354C1

GEAR

- drive, 38 teeth (MFD Tractor)

1шт.

11

67568C1

CIRCLIP

RING - retaining, 1.6764 mm thick

1шт.

11

67569C1

CIRCLIP

RING - retaining, 1.7526 mm thick

1шт.

11

67570C1

CIRCLIP

RING - retaining, 1.8288 mm thick

1шт.

11

67571C1

CIRCLIP

RING - retaining, 1.9050 mm thick

1шт.

11

67577C1

SHIM

RING - retaining, 1.9812 mm thick

1шт.

11

67572C1

CIRCLIP

RING - retaining, 2.0574 mm thick

1шт.

11

67573C1

SNAP RING,2.13mm Thk, Ext

RING - retaining, 2.1336 mm thick

1шт.

11

67574C1

CIRCLIP

RING - retaining, 2.2098 mm thick

1шт.

11

67575C1

CIRCLIP

RING - retaining, 2.2860 mm thick

1шт.

11

67628C1

CIRCLIP

RING - retaining, 2.3622 mm thick

1шт.

12

66074C1

HUB

- brake drum (2WD Orchard Tractor)

1шт.

13

1286470C1

GEAR

- sliding, forward/reverse, 42 teeth

1шт.

14

1277137C1

COLLAR ASSY.

COLLAR - high speed shift

1шт.

15

533266R1

RING, SNAP

RING - retaining, external, 0.98 inch

1шт.

16

94404C1

PINION

GEAR - pump drive, 55 teeth

1шт.

17

399837R1

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING - needle, pump drive gear

1шт.

19

158187C91

NEEDLE BEARING,47.62mm ID x 57.15mm OD x 25.27mm W

BEARING - needle

1шт.

20

94403C1

SHAFT

- counter, range transmission

1шт.

21

398264R1

SNAP RING,#215, 2.026", Ext

RING - retaining, external, 2.026 inch

1шт.

22

103150C1

PINION

GEAR - driving, lo range, 24 teeth

1шт.

23

399835R1

BUSHING

- countershaft gears

1шт.

24

404097R1

GEAR

- constant mesh, 46 teeth

1шт.

25

399832R1

RING, SNAP

RING - retaining

1шт.

26

G10418

BEARING, BALL

BEARING - ball, transmission countershaft

1шт.

27

3112846R1

THRUST WASHER

WASHER - thrust, idler bearing

2шт.

28

399838R3

SHAFT

- reverse idler

1шт.

29

366281R1

PIN,3/8" x 2", Coiled

1шт.

30

1975490C1

GEAR

- reverse idler, 20/24 teeth

1шт.

31

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - needle, 1.313 inch OD

2шт.

32

3112845R1

SPACER

- idler bearing

1шт.
