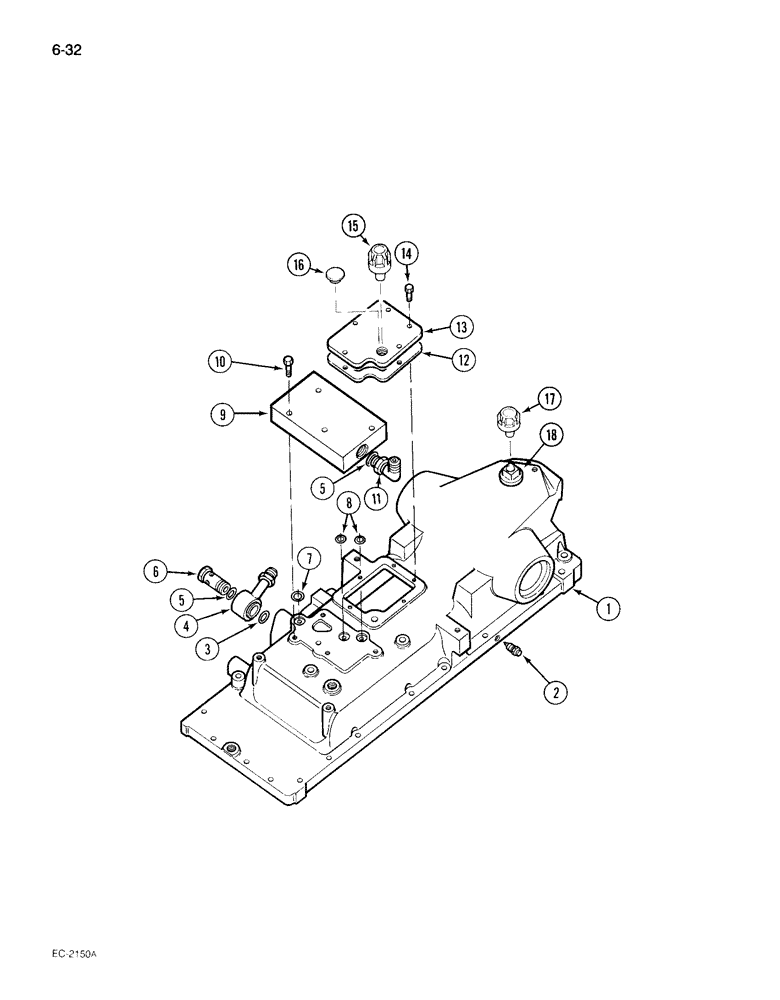

Запчасти Case IH 495 (6-032) - REAR FRAME, TOP COVER CONNECTIONS (06) - POWER TRAIN

1

529381R96

COVER ASSY

COVER ASSEMBLY - rear frame (See Figure 6-030)

1шт.

2

82301R1

BLEEDER,3/8" - 24 x 117mm

- brake bleed

2шт.

3

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- 15/16 ID x 1/16 inch wide, class 6

1шт.

4

66762C1

PIPE,0.625" OD, 3.5" Length

TUBE ASSEMBLY - inlet union

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

66766C1

PLUG

- inlet union

1шт.

7

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

8

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

9

529382R1

MANIFOLD

- auxiliary valve

1шт.

10

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8 inch NF flare x adj O-ring boss

1шт.

12

1970892C1

GASKET

- linkage access cover

1шт.

13

99969C1

COVER

- linkage access

1шт.

14

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

15

1971726C1

BREATHER,1/4" - 18

- hydraulic unit housing, 1/4 inch PT, Serial Range: -JJE0011771

1шт.

16

444619

PIPE CLAMP

PLUG - 1/4-18 PLN H/HD AUT, Start Serial: JJE0011771

1шт.

17

1971726C1

BREATHER,1/4" - 18

- hydraulic unit housing, 1/4 inch PT, Start Serial: JJE0011771

1шт.

18

1537543C1

ADAPTER

PLUG - square head 1-1/4 inch with breather (See Figure 6-030)

1шт.
