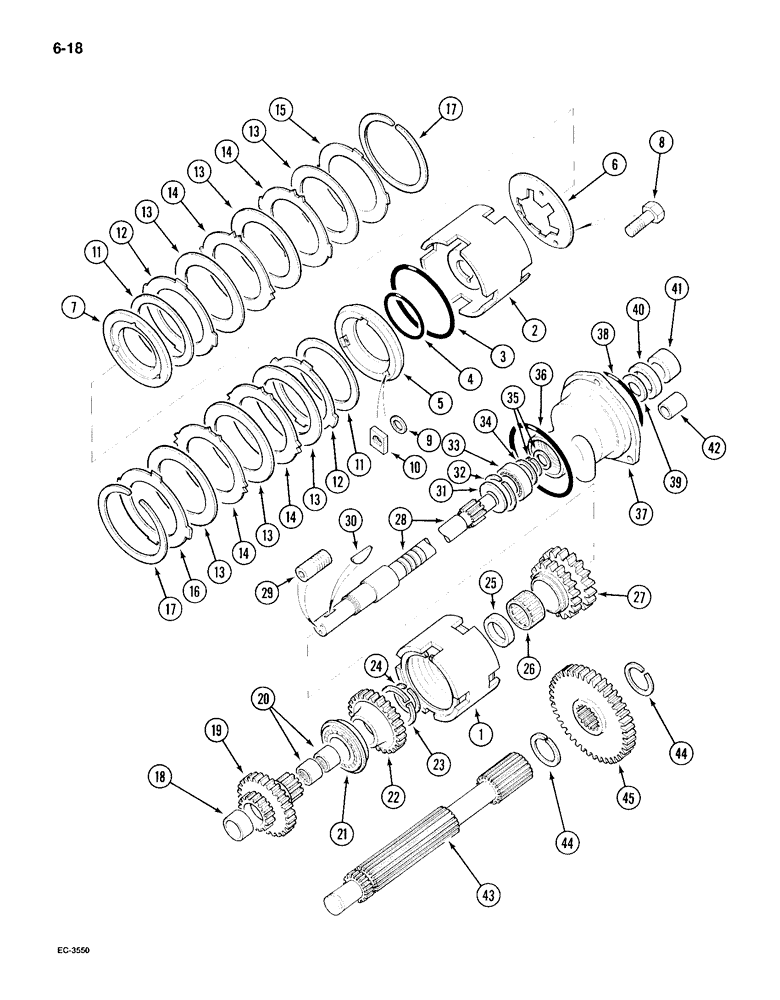

Запчасти Case IH 495 (6-018) - SPEED TRANSMISSION, TWO SPEED POWER SHIFT ATTACHMENT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - direct drive, Includes: Ref. 2 - 17

1шт.

2

1502339C1

HOUSING

CUP - direct drive clutch

1шт.

3

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer

1шт.

4

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

- piston, inner

1шт.

5

402570R1

PISTON

- direct drive clutch

1шт.

6

402574R1

BELLEVILLE WASHER

WASHER, Belleville

3шт.

7

402573R1

PLATE

- pressure, clutch lock-up

1шт.

8

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT - piston return

3шт.

9

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

- piston support

3шт.

10

65240C1

SQUARE NUT

- square, 1/4 inch NF

3шт.

1502338C91

SHIM KIT

KIT - service, shims, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 0.014 inch

2шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 0.024 inch

2шт.

11

NSS

NOT SOLD SEPARAT

SHIM - 0.036 inch

2шт.

12

402572R1

PLATE

- piston backing

2шт.

13

401716R3

DISC

PLATE - clutch driven

6шт.

14

401717R1

PLATE

- clutch separator

4шт.

15

1502340C1

PLATE

- clutch backing

1шт.

16

402569R1

PLATE

- clutch backing

1шт.

17

401720R1

CIRCLIP

RING - retaining, backing plate

2шт.

18

3118322R91

BEARING, NEEDLE

BEARING - needle, clutch shaft (Order A76557)

1шт.

19

3118321R2

PINION

GEAR - direct drive hub, 28 teeth

1шт.

20

550839R91

BEARING, NEEDLE

BEARING - needle, clutch shaft (Order A12652)

2шт.

21

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, direct drive gear

1шт.

22

404199R3

SPROCKET ASSY.

CARRIER - direct drive clutch disc

1шт.

23

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

1шт.

24

583976R1

SNAP RING,#125, 1.179", Ext

RING - retaining, external, 1.179 inch

1шт.

25

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SEAL - oil, sprag bore

1шт.

26

402566R1

BEARING ASSY

ASSEMBLY - sprag

1шт.

27

402563R2

PINION

GEAR ASSEMBLY - drive, 27 teeth, sprag clutch

1шт.

28

92757C91

SHAFT

ASSEMBLY - clutch, Includes: Ref. 29

1шт.

29

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket, 1/4 NC x 1/4 inch

1шт.

30

124554

O-RING

- woodruff, 5/16 x 1 inch

1шт.

31

402562R1

THRUST WASHER

WASHER - thrust clutch shaft

1шт.

32

377911R1

RING, SNAP

RING - retaining, inner, clutch shaft bearing

1шт.

33

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BEARING - ball, clutch shaft

1шт.

34

A21619

CIRCLIP

RING - retaining

1шт.

35

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

- clutch shaft piston

2шт.

36

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

37

1342861C1

BALL RACE

CAGE ASSEMBLY - IPTO and clutch cup retainer

1шт.

1277488C2

SEAL KIT

KIT - service, seals, Includes: Ref. 38 - 42

1шт.

38

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft

1шт.

41

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve (Order 108982C1)

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - installation

2шт.

43

404104R3

SHAFT

- counter

1шт.

44

381486R1

SNAP RING,#187, 1.759", Ext

RING - retaining, external, 1.759 inch

2шт.

45

404105R1

PINION

GEAR - driven, 42 teeth

1шт.
