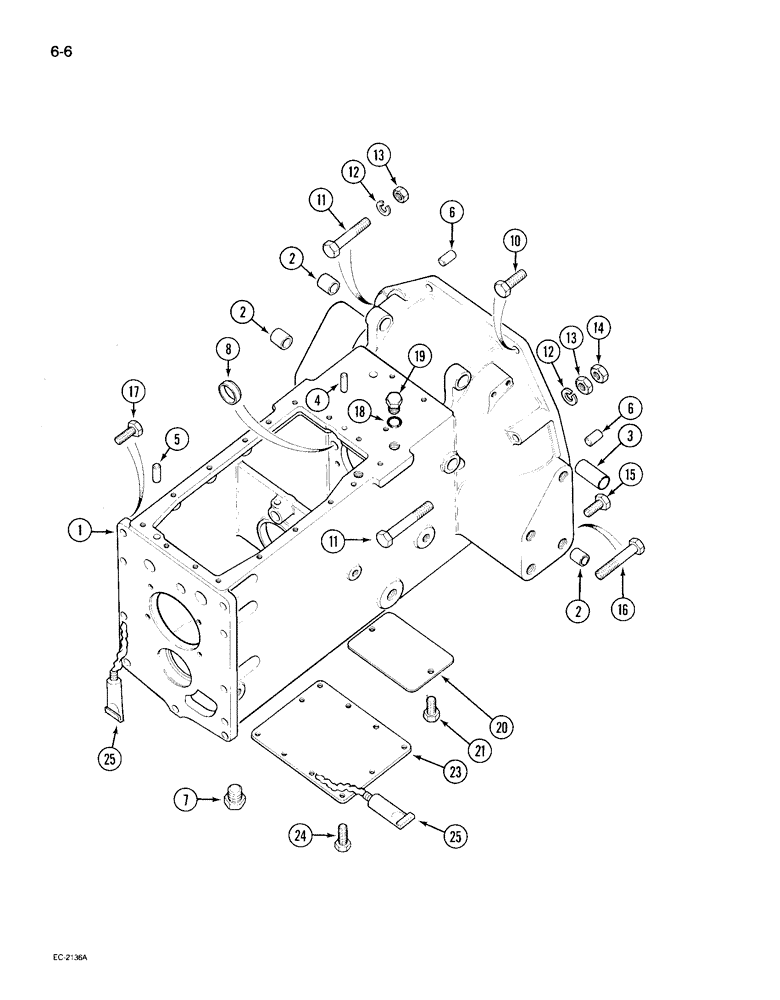

Запчасти Case IH 495 (6-006) - CLUTCH HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
94294C92
HOUSING
ASSEMBLY - clutch (Without creeper attachment), Includes: Ref. 2 - 8
1шт.
1
1343325C1
HOUSING
ASSEMBLY - clutch (With creeper attachment), Includes: Ref. 2 - 8
1шт.
2
530815R1
BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L
- clutch and brake shaft
3шт.
3
539834R1
BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L
- left brake pedal pivot
1шт.
4
19962R1
DOWEL,3/8" x 3/4"
PIN - dowel, 3/8 x 3/4 inch
1шт.
5
20556R1
DOWEL,1/2" x 3/4"
PIN - dowel, 1/2 x 3/4 inch
1шт.
6
19904R1
DOWEL,1/2" x 1"
PIN - dowel, 1/2 x 1 inch
2шт.
7
444836
PLUG,Hex Hd, 3/4"-14
- hex, 3/4 inch PT
1шт.
7
3113103R1
PLUG
- hex, 3/4 inch PT, Serial Range: (Optional-444836)
1шт.
8
327411R1
PLUG,Cup, 5/8"
- cup, 5/8 inch
1шт.
10
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
2шт.
11
13-896
BOLT,Hex, 1/2" - 13 x 6", Gr 5
2шт.
12
92-11050
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
13
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
14
25-148
JAM NUT,Jam, 1/2"-13, G5
- hex jam, 1/2 inch NC
1шт.
15
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
(Thru spacer to clutch housing) Hex, 1/2"-13 x 1 3/4", G5
4шт.
16
13-856
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
(Thru pan and spacer to clutch housing) Hex, 1/2"-13 x 3 1/2", G5
2шт.
17
26-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
9шт.
18
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
19
9410359
PLUG
- hex, 3/4-16 inch O-ring boss
1шт.
20
399817R1
COVER
- clutch compartment
1шт.
21
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
2шт.
23
1536388C1
COVER
- clutch housing bottom rear (Without pressure regulator valve)
1шт.
23
83013C2
LARGE PLATE
PLATE - core (With pressure regulator valve) (See Figures 8-010, 8-012 or 8-014)
1шт.
24
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Used with cover 1536388C1 Hex, 3/8"-16 x 3/4", G5, Full Thd
11шт.
25
B17501
LOCTITE
SEALANT - gasket maker No. 515, 6 ml tube
1шт.
Выбрано товаров: 26
