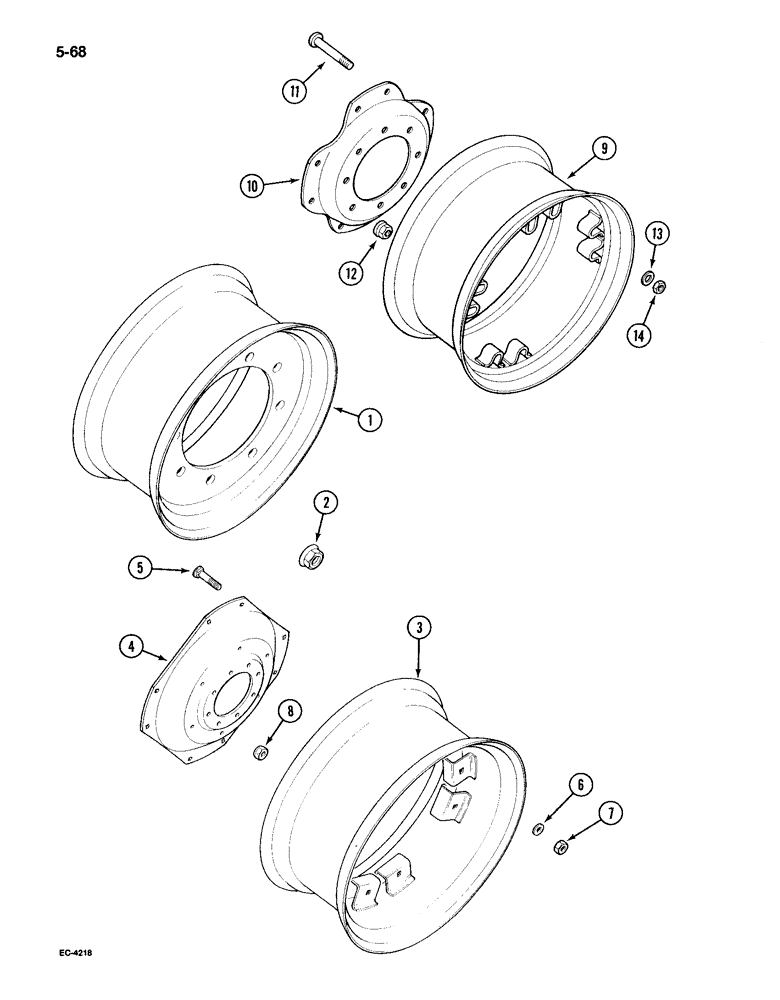

Запчасти Case IH 495 (5-068) - FRONT WHEELS, MFD TRACTOR (05) - STEERING

1

1343074C1

WHEEL

- front, 9.75-16.5 (For 31 x 10.5 x 16.5 Wrangler tire), 16-1/2"

2шт.

2

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining, 16-1/2" wheel

16шт.

3

1536642C1

RIM

- adjustable, W7-24 (For 8.3 x 24 or 9.5 x 24 tire), 24" wheel

2шт.

4

1536641C1

DISC, WHEEL

DISC - 24 inch wheel

2шт.

5

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, 24" wheel

16шт.

6

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, 24" wheel

16шт.

7

1335134C1

NUT

- hex, 16 mm - 2.00, 24" wheel

16шт.

8

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining, 24" wheel

16шт.

3

1536640C1

RIM

- adjustable, W10-24 (For 11.2 x 24 tire), 24" wheel

2шт.

4

1536641C1

DISC, WHEEL

DISC - 24 inch wheel

2шт.

5

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, 24" wheel

16шт.

6

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, 24" wheel

16шт.

7

1335134C1

NUT

- hex, 16 mm - 2.00, 24" wheel

16шт.

8

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining, 24" wheel

16шт.

9

1537916C1

RIM

- adjustable, W7-24, 24" wheel

2шт.

10

1537917C1

DISC

- 24 inch wheel

2шт.

11

1332730C1

BOLT,M16 x 790mm, Gr 8.8

BOLT, 24" wheel

16шт.

12

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining, 24" wheel

16шт.

13

1332731C1

WASHER

- flat, 16.8 x 28 x 4 mm, 24" wheel

16шт.

14

1332732C1

NUT

- hex, 16 mm, 24" wheel

16шт.
