Запчасти Case IH 495 (5-054) - MECHANICAL FRONT DRIVE "CARRARO", AXLE HOUSING (05) - STEERING

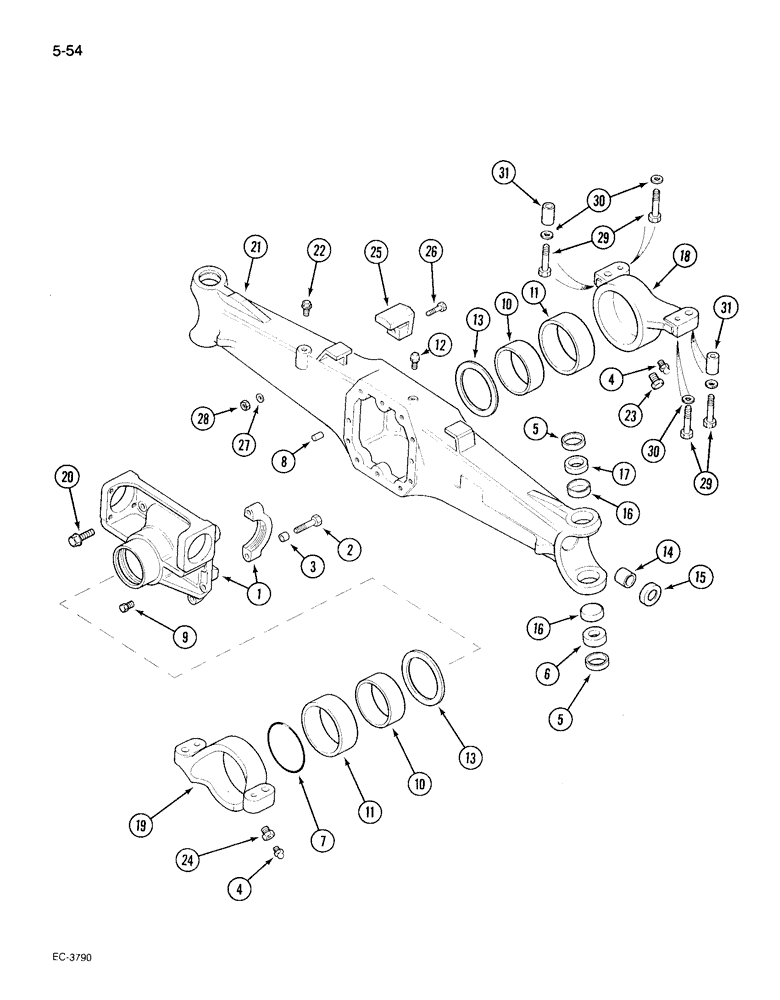

Схема запчастей Case IH 495 - (5-054) - MECHANICAL FRONT DRIVE "CARRARO", AXLE HOUSING (05) - STEERING
7
5
2
23
5
22
11
17
3
24
4
13
10
16
30
21
29
13
16
12
31
1
30
31
10
29
15
6
28
19
4
25
14
18
8
20
11
26
27
9

Артикул

Название

Примечание

Количество

1537850C1

4WD AXLE ASSY

AXLE ASSEMBLY - front, Includes: Ref. 1 - 24

1шт.

1

1537606C1

BOLSTER

SUPPORT - differential

1шт.

2

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, Hex Flg, M14 x 75, 12.9

4шт.

3

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- center

4шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

5

1966038C1

SEAL

4шт.

6

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

BEARING

2шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

1шт.

8

1966138C1

DOWEL

2шт.

9

A156873

PLUG, DRAIN,M22 x 1.5

1шт.

10

K965266

BUSHING

SLEEVE

2шт.

11

K965265

BUSHING

COLLAR

2шт.

12

1966149C1

BREATHER

1шт.

13

K395022

WASHER

- thrust

2шт.

14

1966186C1

BUSHING

2шт.

15

1966191C1

OIL SEAL

- oil

2шт.

16

1966208C1

COVER

PLUG

4шт.

17

100522A1

BUSHING

2шт.

18

1537607C1

SUPPORT

- front

1шт.

19

1537608C1

SUPPORT

- rear

1шт.

20

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, Hex Flg, M12 x 33, 12.9

10шт.

21

1537609C1

AXLE, FRONT

AXLE ASSEMBLY

1шт.

22

1537610C1

DIPSTICK

PLUG - drain

1шт.

23

1537654C1

BOLT

BOLT

1шт.

24

1537655C1

BOLT

BOLT

1шт.

25

1537537C1

STOP

2шт.

26

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

- hex, 12 - 1.75 x 70 mm

2шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

2шт.

29

626-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

8шт.

30

1538003C1

WASHER

- hardened, 17.5 x 32 x 6 mm

8шт.

31

905679R1

LOCK PIN,M21 x 36, Slotted

PIN - slotted spring, 21 x 36 mm

4шт.

Выбрано товаров: 32
