Запчасти Case IH 485 (00E11) - CLUTCH CONTROLS (04) - Drive Train

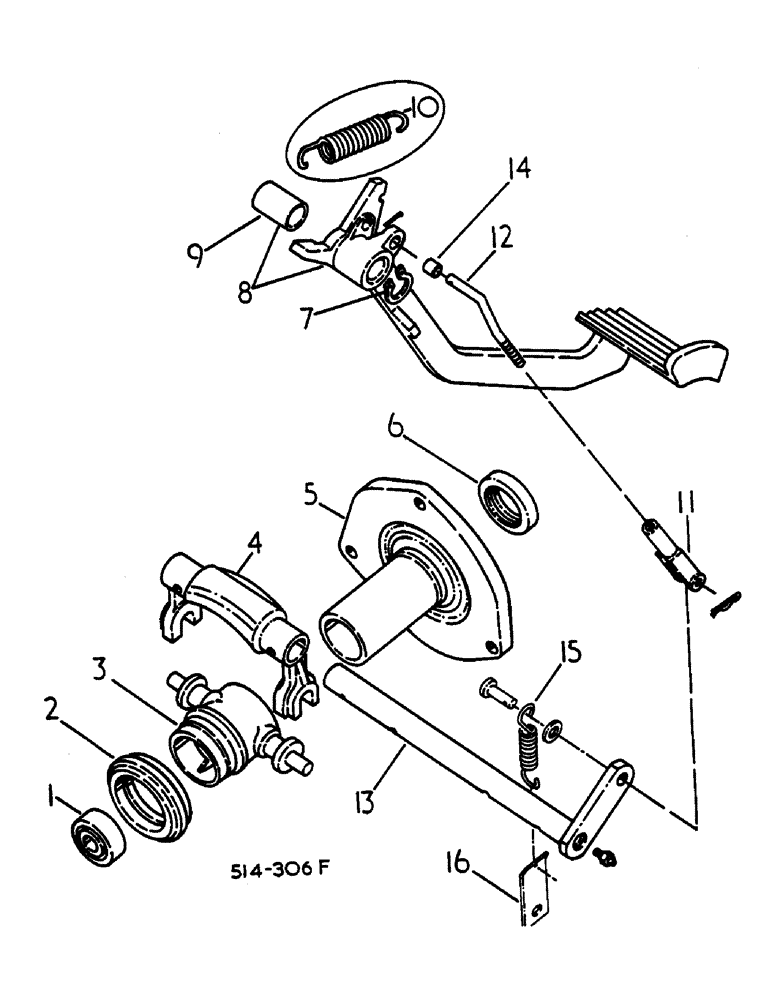

Схема запчастей Case IH 485 - (00E11) - CLUTCH CONTROLS (04) - Drive Train
2
15
5
1
10
8
3
6
16
4
13
12
7
14
11
9

Артикул

Название

Примечание

Количество

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

1

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

CLUTCH PILOT

1шт.

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

CLUTCH PILOT

1шт.

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot - Optional

1шт.

2

158125C92

BEARING, BALL

CLUTCH RELEASE

1шт.

3

105445C1

BUSHING

SLEEVE, CLUTCH RELEASE

1шт.

4

398342R2

CLUTCH FORK

CLUTCH RELEASE

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

5

71229C3

SUPPORT,41.7mm ID x 96.51mm OD x 113.8mm L

CARRIER, CLUTCH RELEASE SLEEVE

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 X 1-3/8 HEX HD PLAIN

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065)

3шт.

6

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

RELEASE SLEEVE, CARRIER

1шт.

6

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

OIL, RELEASE SLEEVE, CARRIER - OPTIONAL

1шт.

7

454331R1

SNAP RING,#87, Ext

Clutch pedal

1шт.

8

1500212C93

PEDAL ASSY.

CLUTCH W/BUSHING

1шт.

52191

BUSHING

29/32 X 1-3/8 X 054 GA

1шт.

9

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

1шт.

10

399743R1

SPRING

CLUTCH PEDAL RETURN

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

SET 5/16-18 X 1-1/4 HEX-HD DV-PT

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 HEX JAM, 485, Serial Range: -7099

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 HEX JAM, 248, Serial Range: -815

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/2 LIGHT ADJ ROD END

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

3114469R1

SPLIT PIN/SAFETY PIN

ROUND COT

1шт.

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

3/8 X 1-3/32 ROD END, 485, Serial Range: -7099

1шт.

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

3/8 X 1-3/32 ROD END, 248, Serial Range: -815

1шт.

12

71086C1

ROD ASSY.

CLUTCH OPERATING

1шт.

432-610

COTTER PIN,3/32" x 5/8"

1шт.

13

398237R3

SHAFT ASSY.

CLUTCH RELEASE

2шт.

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

1/4 DRIVE TYPE 45 DEG

2шт.

14

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

CLUTCH OPERATING ROD, 485, Serial Range: -7099

1шт.

14

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

CLUTCH OPERATING ROD, 248, Serial Range: -815

1шт.

14

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

CLUTCH OPERATING ROD, 385 485, Start Serial: 7100

1шт.

14

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

CLUTCH OPERATING ROD, 248, Start Serial: 816

1шт.

15

1500587C2

SPRING

BEARING PRE - LOAD

1шт.

74528H

PIN, 3/8 X 1344 ROD END

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

.406 X .812 X .051, 385 485, Start Serial: 7100

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

.406 X .812 X .051, 248, Start Serial: 816

1шт.

16

1500594C1

PLATE

SPRING ANCHOR

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

385, 485, Start Serial: 7100

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

248, Start Serial: 816

1шт.

Выбрано товаров: 42
