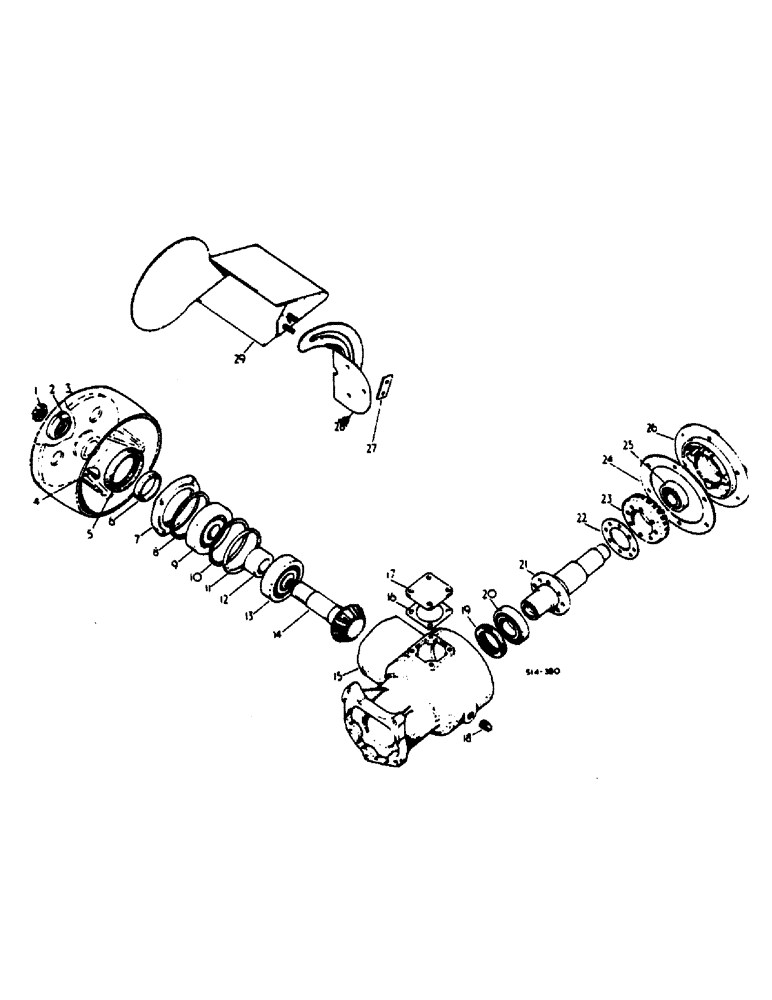

Запчасти Case IH 485 (00E08) - BELT PULLEY, ATTACHMENT, BELT PULLEY, W/SAFETY SHIELD - TRACTORS W/DUAL SPEED IPTO (04) - Drive Train

1

704252R1

NUT

PINION SHAFT

1шт.

2

527834R1

WASHER

SPARE PART BELT PULLEY RETAINER

1шт.

3

527833R11

PULLEY ASSY.

SPARE PART BELT W/BUSHING

1шт.

4

61408

WOODRUFF KEY,#D, 5/16" x 1 1/4"

5/16 X 1-1/4 WOODRUFF D

1шт.

5

704247R91

OIL SEAL

1шт.

5

704247R92

SEAL

OIL - OPTIONAL

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

6

704250R1

BUSHING

SPARE PART

1шт.

7

704246R21

RETAINER

PINION SHAFT W/OIL SEAL

1шт.

8

711872R1

GASKET

PINION SHAFT RETAINER

1шт.

9

137869H

BEARING

PINION OUTER

1шт.

9

704244R91

BEARING

BALL, PINION OUTER

1шт.

9

704245R91

BEARING

BALL, PINION OUTER

1шт.

9

3063609R91

BALL BEARING

PINION OUTER - OPTIONAL

1шт.

10

3073348R1

SHIM

BELT PULLEY

1шт.

11

706745R1

SPACER

BELT PULLEY SHAFT .148

1шт.

12

704243R1

SPACER

SPARE PART BELT PULLEY BEARING

1шт.

13

527832R91

BEARING

SPARE PART PINION INNER ROLLER

1шт.

14

3067916R1

SHAFT

GEAR, DRIVE BEVEL PINION AND SHAFT

1шт.

32-1022

COTTER PIN,5/32" x 1 3/8"

1шт.

15

527830R2

HOUSING

BELT PULLEY DRIVE

1шт.

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8-16 X 1-1/2 HEX HD CAP

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

16

711882R1

GASKET

DRIVE HOUSING TOP COVER PLATE

1шт.

17

711881R1

PLATE

DRIVE HOUSING TOP COVER

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 X 11/16 HEX HD CAP

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

18

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 AUTO SQ-HD PIPE

1шт.

19

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

DRIVE HOUSING

1шт.

19

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL, DRIVE HOUSING

1шт.

19

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL, DRIVE HOUSING - OPTIONAL

1шт.

20

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BELT PULLEY SHAFT INNER

1шт.

20

704234R91

BALL BEARING

BELT PULLEY SHAFT INNER

1шт.

20

3048701R91

BALL BEARING

BELT PULLEY SHAFT INNER - OPTIONAL

1шт.

21

530044R1

CLUTCH ASSEMBLY

SPARE PART BELT PULLEY P T O

1шт.

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

8шт.

60-6634T1

LOCK WASHER

3/8 INT-TOOTH LOCK

8шт.

22

3067911R1

SHIM

SPARE PART BEVEL GEAR

2шт.

492-11038

LOCK WASHER,3/8"

6шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

23

3067910R1

GEAR

SPARE PART BELT PULLEY BEVEL

1шт.

24

3073828R1

SHIM

DRIVE HOUSING

1шт.

25

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BELT PULLEY SHAFT OUTER

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BELT PULLEY SHAFT OUTER

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BELT PULLEY SHAFT OUTER

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BALL, BELT PULLEY SHAFT OUTER

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BELT PULLEY SHAFT OUTER

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BELT PULLEY SHAFT OUTER - OPTIONAL

1шт.

26

3073827R1

COVER

DRIVE HOUSING

1шт.

27

3049001R1

PLATE

SPARE PART BACKING

1шт.

28

3067917R11

BRACKET

SPARE PART REVERSE BELT PULLEY SAFETY SHIELD

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

29

3067919R91

GUARD ASSY.

REVERSE BELT PULLEY SAFETY

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

7/16-14 X 1-1/8 HEX HD CAP

1шт.

492-11044

LOCK WASHER,7/16"

2шт.

425-107

NUT,7/16"-14, G5

2шт.
