Запчасти Case IH 485 (00E05) - SIDE DRIVE POWER TAKE OFF (04) - Drive Train

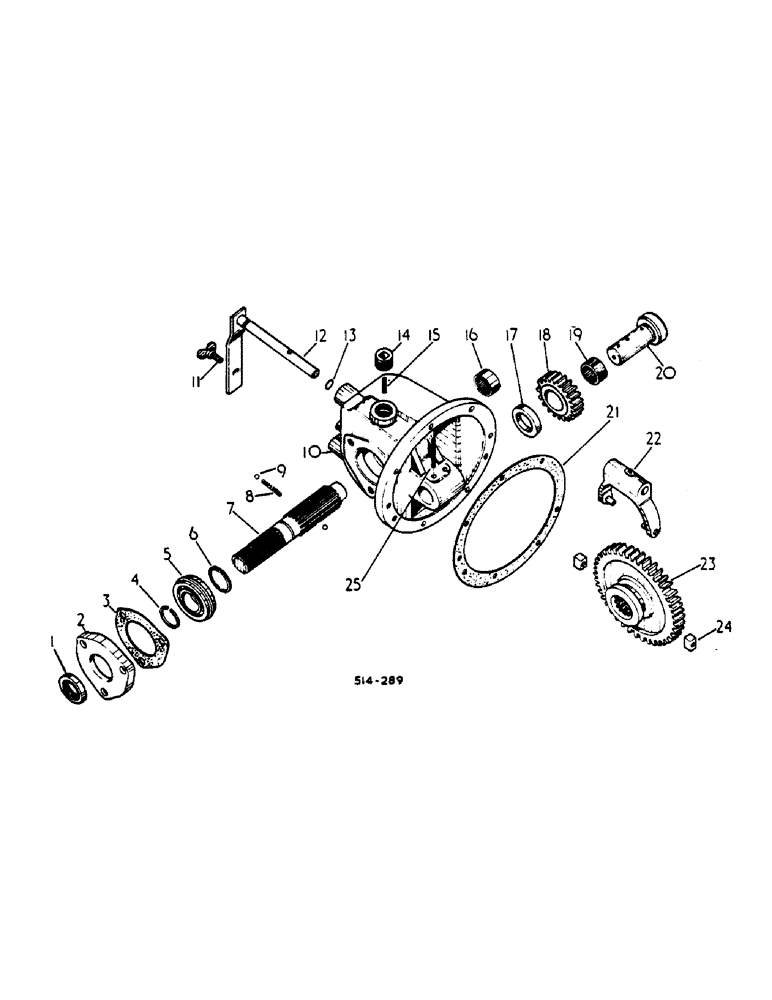

Схема запчастей Case IH 485 - (00E05) - SIDE DRIVE POWER TAKE OFF (04) - Drive Train
2
6
10
23
4
15
13
22
21
20
1
8
19
14
18
17
25
7
11
16
5
9
3
24
12

Артикул

Название

Примечание

Количество

67128C91

HOUSING

ATTACHMENT, SIDE DRIVE PTO - FOR TRACTORS W/SINGLE OR DUAL SPEED IPTO

1шт.

1

381480R91

OIL SEAL

OUTPUT SHAFT

1шт.

1

381480R91

OIL SEAL

OUTPUT SHAFT - OPTIONAL

1шт.

2

529327R1

FLANGED BEARING

OUTPUT SHAFT BEARING

1шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2-13 X 1-1/4 HEX HD CAP

3шт.

3

529328R2

GASKET

OUTPUT SHAFT BEARING RETAINER

1шт.

4

359141R1

RING, SNAP

RING SNAP OUTPUT SHAFT BEARING RETAINER

1шт.

5

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

OUTPUT SHAFT

1шт.

5

704770R91

BALL BEARING

OUTPUT SHAFT

1шт.

5

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

OUTPUT SHAFT - OPTIONAL

1шт.

6

573984R1

SNAP RING

SLIDING GEAR RETAINING

1шт.

7

67131C1

SHAFT

OUTPUT

1шт.

8

529329R1

SPRING

DRIVEN GEAR POPPET

1шт.

9

211-1009

BALL

9/32 CR-STL

2шт.

9

211-1009

BALL

9/32 CR-STL - OPTIONAL

2шт.

10

529322R21

HOUSING ASSY.

SIDE DRIVE P T O

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

11

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SELECTOR FORK SHAFT ARM ADJ

1шт.

12

65772C1

SHAFT ASSY.

SELECTOR FORK - W/PRODUCT GRAPHIC

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 X 5/8 X 3/32

1шт.

14

217-442

PLUG,3/4" - 14

3/4 X 14 AUTOM SQ-SOC-HD PIPE

1шт.

15

19791R1

PIN,1/4" x 1 1/8", Coiled

1/4" x 1 1/8", Coiled

1шт.

16

529323R91

BEARING, NEEDLE

OUTPUT SHAFT

1шт.

17

67130C1

SPACER

IDLER GEAR

1шт.

18

529325R1

GEAR, IDLER

GEAR,IDLE SIDE DRIVE PTO IDLER - 21T

1шт.

19

287057R91

BEARING, NEEDLE

IDLER GEAR

1шт.

19

287057R91

BEARING, NEEDLE

IDLER GEAR - OPTIONAL

1шт.

20

67129C1

SHAFT

SIDE DRIVE PTO IDLER GEAR

1шт.

21

528650R2

GASKET,0.71mm Thk

SIDE DRIVE PTO HOUSING

1шт.

22

529331R1

FORK

DRIVEN GEAR SELECTOR

1шт.

23

67132C1

GEAR

SIDE DRIVE PTO DRIVEN - 44T

1шт.

24

67133C1

BLOCK

SPARE PART SELECTOR FORK

2шт.

25

618573R1

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

1шт.

3124785R91

ATTACHMENT, IPTO CLUTCH CUP GEAR

1шт.

66068C1

GEAR

FRONT CLUTCH CUP, IPTO ATTACHMENT

1шт.

Выбрано товаров: 35
