Запчасти Case IH 485 (00E01) - INDEPENDENT POWER TAKE OFF - DUAL SPEED (04) - Drive Train

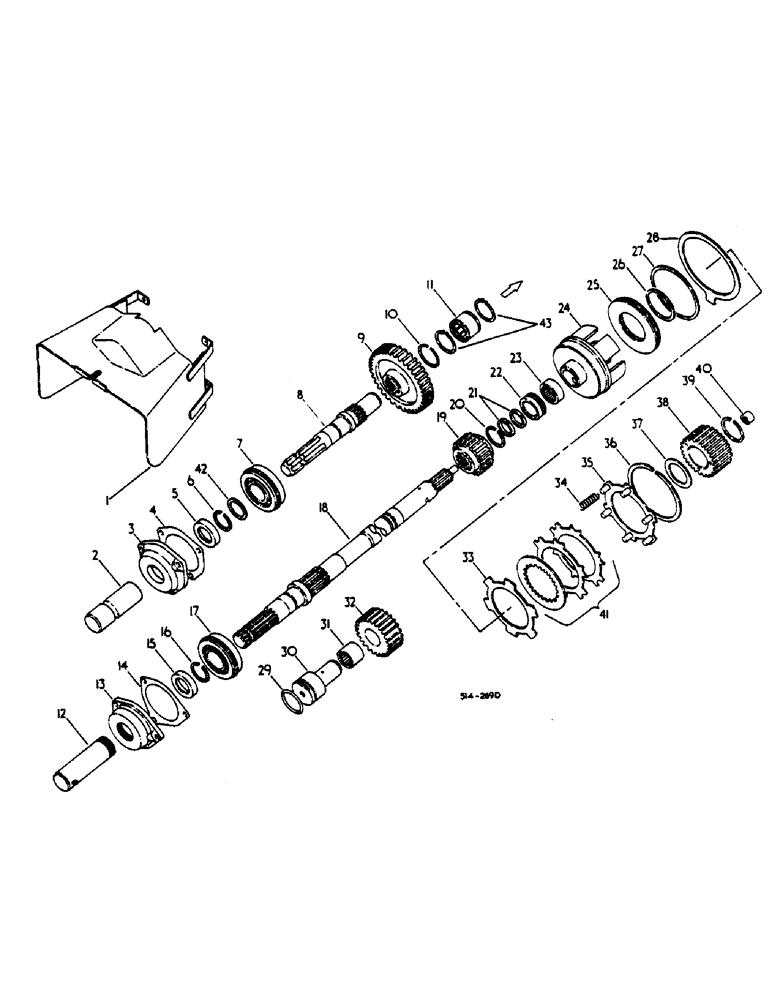

Схема запчастей Case IH 485 - (00E01) - INDEPENDENT POWER TAKE OFF - DUAL SPEED (04) - Drive Train
16
6
31
12
20
14
30
36
26
9
15
37
4
39
27
23
18
17
34
21
35
41
3
2
25
8
5
19
10
7
1
28
32
13
42
29
33
24
38
40
43
11
22

Артикул

Название

Примечание

Количество

1

401734R1

GUARD ASSY.

IPTO SAFETY

1шт.

1

SHIELD ASSY, IPTO SAFETY - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

IPTO SHAFT PROTECTION

1шт.

3

401725R2

FLANGED BEARING

IPTO SHAFT BRG, Serial Range: -5820

1шт.

3

1500086C1

FLANGED BEARING

IPTO SHAFT BEARING, Start Serial: 5821

1шт.

SCREW, 3/8-16 X 7/8 HEX HD CAP

3шт.

4

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

533615R91

BALL BEARING

SHAFT

1шт.

7

71268C91

BALL BEARING

SHAFT

1шт.

7

67655C91

BALL BEARING

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT - OPTIONAL - USED W/UPPER DRIVEN GEAR 36T

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

SHAFT

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT - OPTIONAL - USED W/UPPER DRIVEN GEAR 38T

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT, Serial Range: -5820

1шт.

8

1500087C1

SHAFT

UPPER OUTPUT, Start Serial: 5821

1шт.

9

404237R1

PINION

GEAR, UPPER DRIVEN, 36T

1шт.

9

1342557C2

PINION

UPPER DRIVEN, 38T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

NEEDLE, SHAFT

1шт.

11

112821R91

NEEDLE BEARING

SHAFT, Serial Range: -5820

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

SHAFT - CAGED - OPTIONAL, Start Serial: 5821

1шт.

12

1537007C1

TUBE

IPTO SHAFT PROTECTION

1шт.

13

401725R2

FLANGED BEARING

IPTO SHAFT BEARING, Serial Range: -5820

1шт.

13

1500086C1

FLANGED BEARING

IPTO SHAFT BEARING, Start Serial: 5821

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

14

399843R3

GASKET

SHAFT BEARING RETAINER

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

16

607186R1

SNAP RING,#156, Ext

Brg

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

17

533615R91

BALL BEARING

SHAFT

1шт.

17

71268C91

BALL BEARING

SHAFT

1шт.

17

67655C91

BALL BEARING

SHAFT

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT - OPTIONAL - USED W/LOWER SHAFT DRIVE GEAR 22T

1шт.

17

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

17

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

SHAFT

1шт.

17

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

17

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT - OPTIONAL - USED W/LOWER SHAFT DRIVE GEAR 21T

1шт.

18

66485C1

SHAFT ASSY.

1000 RPM 6 SPLINE

1шт.

18

66180C2

SHAFT ASSY.

1000 RPM 21 SPLINE

1шт.

19

404233R1

PINION

GEAR, LOWER SHAFT DRIVE - 22T

1шт.

19

1342558C2

PINION

LOWER SHAFT DRIVE - 21T

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

21

166972R1

RING

SHAFT SEALING

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

LOWER SHAFT

1шт.

24

3125149R1

CUP

CLUTCH - W/OUT SIDE DRIVE PTO

1шт.

24

66068C1

GEAR

CLUTCH CUP, 44T - W/SIDE DRIVE PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

CLUTCH

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL - INNER

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL - OUTER

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO IDLER

1шт.

31

570450R91

NEEDLE BEARING

NEEDLE, IDLER SHAFT

1шт.

31

570450R91

NEEDLE BEARING

IDLER SHAFT - OPTIONAL

1шт.

32

401727R1

PINION

GEAR, IDLER 24T

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

34

66182C1

SPRING

PISTON RETURN

6шт.

35

66186C92

PLATE ASSY.

CLUTCH BACKING

1шт.

38-32016

PIN,5/16" x 1", Coiled

Pin, 5/16" x 1", Coiled

6шт.

37-1516

DOWEL,5/16" x 1"

5/16 X 1 DOWEL - OPTIONAL

6шт.

36

401720R1

CIRCLIP

BACKING PLATE

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

40

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT - OPTIONAL

1шт.

41

66193C91

PACKAGE

CLUTCH PLATE - SERVICE - CONSISTS OF

1шт.

DISC

5шт.

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

42

1500085C1

WASHER

1шт.

43

202307R1

SNAP RING,#206, Ext

2шт.

1093096R1

PRODUCT GRAPHIC

IPTO SPEED 540/1000 (NOT ILLUSTRATED)

1шт.

1093323R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED 555/1000 (NOT ILLUSTRATED)

1шт.

1093229R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED WARNING - AGRICULTURAL MACHINES - (NOT ILLUSTRATED)

1шт.

1093230R1

PRODUCT GRAPHIC

IPTO SPEED WARNING - INDUSTRIAL MACHINES- (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 88
