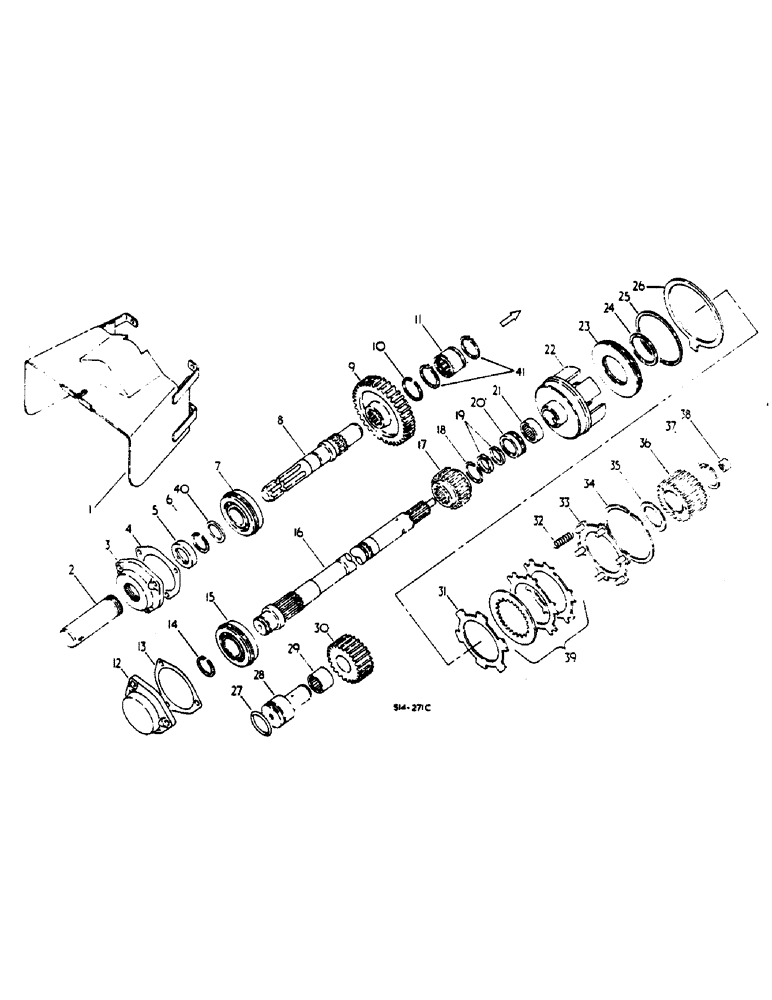

Запчасти Case IH 485 (00D21) - INDEPENDENT POWER TAKE OFF - SINGLE SPEED (04) - Drive Train

1

401734R1

GUARD ASSY.

IPTO SAFETY

1шт.

1

SHIELD ASSY, IPTO SAFETY - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3051841R2

CAP

TUBE ASSY, IPTO SHAFT PROTECTION

1шт.

3

401725R2

FLANGED BEARING

IPTO SHAFT BRG, Serial Range: -5820

1шт.

3

1500086C1

FLANGED BEARING

IPTO SHAFT BEARING, Start Serial: 5821

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

4

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

533615R91

BALL BEARING

SHAFT

1шт.

7

71268C91

BALL BEARING

SHAFT

1шт.

7

67655C91

BALL BEARING

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT - OPTIONAL - USED W/UPPER DRIVEN GEAR 36T

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

SHAFT

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

7

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT - OPTIONAL - USED W/UPPER DRIVEN GEAR 38T

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT, Serial Range: -5820

1шт.

8

1500087C1

SHAFT

UPPER OUTPUT, Start Serial: 5821

1шт.

9

404237R1

PINION

GEAR, DRIVEN 36T-

1шт.

9

1342557C2

PINION

DRIVEN 38T-

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

2шт.

11

112821R91

NEEDLE BEARING

NEEDLE, 614 RPM SHAFT

1шт.

11

112821R91

NEEDLE BEARING

614 RPM SHAFT, Serial Range: -5820

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

NEEDLE, 614 RPM SHAFT - CAGED - OPTIONAL, Start Serial: 5821

1шт.

12

66191C1

FLANGED BEARING

IPTO BRG END

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

13

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

15

533615R91

BALL BEARING

SHAFT

1шт.

15

71268C91

BALL BEARING

SHAFT

1шт.

15

67655C91

BALL BEARING

SHAFT

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT - OPTIONAL - USED W/LOWER SHAFT DRIVE GEAR 22T

1шт.

15

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

15

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

SHAFT

1шт.

15

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT

1шт.

15

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BALL, SHAFT - OPTIONAL - USED W/LOWER SHAFT DRIVE GEAR 21T

1шт.

16

66189C1

SHAFT ASSY.

IPTO DRIVING

1шт.

17

404233R1

PINION

GEAR, LOWER SHAFT DRIVE - 22T

1шт.

17

1342558C2

PINION

LOWER SHAFT DRIVE - 21T

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

19

166972R1

RING

SHAFT SEALING

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

SHAFT

1шт.

21

3125149R1

CUP

CLUTCH - W/OUT SIDE DRIVE PTO

1шт.

22

66068C1

GEAR

CLUTCH CUP, 44T - W/SIDE DRIVE P T O

1шт.

22

3125149R1

CUP

CLUTCH - W/OUTSIDE DRIVE P T O

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

CLUTCH

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL - INNER

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL - OUTER

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

28

401726R1

SHAFT

IPTO IDLER

1шт.

29

570450R91

NEEDLE BEARING

NEEDLE, IDLER SHAFT

1шт.

29

570450R91

NEEDLE BEARING

IDLER SHAFT - OPTIONAL

1шт.

30

401727R1

PINION

GEAR, IDLER -24T-

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

32

66182C1

SPRING

PISTON RETURN

6шт.

33

66186C92

PLATE ASSY.

CLUTCH BACKING

1шт.

38-32016

PIN,5/16" x 1", Coiled

5/16" x 1", Coiled

6шт.

34

401720R1

CIRCLIP

BACKING PLATE

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

38

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

38

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT - OPTIONAL

1шт.

39

66193C91

PACKAGE

PACKAGE, CLUTCH PLATE - SERVICE - CONSISTS OF

1шт.

DISC

5шт.

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

1093111R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED 555 (NOT ILLUSTRATED)

1шт.

1093097R1

PRODUCT GRAPHIC

IPTO SPEED 540 (NOT ILLUSTRATED)

1шт.
