Запчасти Case IH 485 (00D18) - INDEPENDENT POWER TAKE OFF - SINGLE SPEED (04) - Drive Train

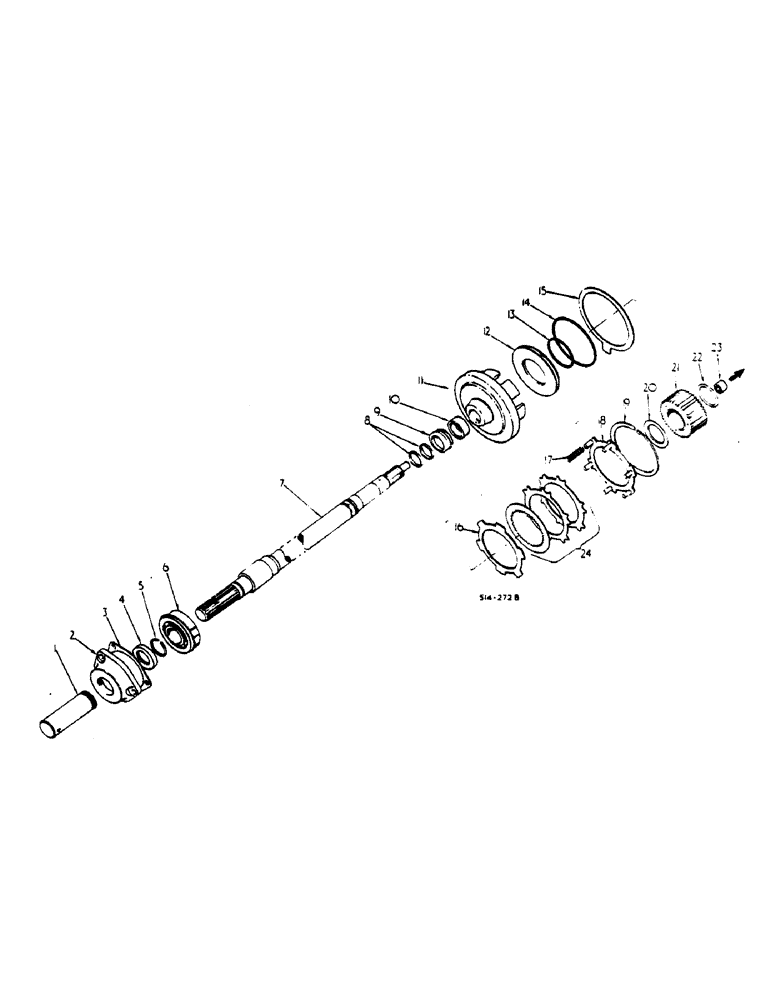

Схема запчастей Case IH 485 - (00D18) - INDEPENDENT POWER TAKE OFF - SINGLE SPEED (04) - Drive Train
17
12
16
14
6
8
7
5
15
24
3
10
21
2
1
13
8
11
23
9
4
22
20
9

Артикул

Название

Примечание

Количество

1

NOT APPLICABLE

1шт.

2

401725R2

FLANGED BEARING

IPTO SHAFT BRG

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

3

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

5

607186R1

SNAP RING,#156, Ext

Brg

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

6

533615R91

BALL BEARING

SHAFT

1шт.

6

71268C91

BALL BEARING

SHAFT

1шт.

6

67655C91

BALL BEARING

SHAFT

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT - OPTIONAL

1шт.

7

1332709C1

SHAFT

COMPRESSER DRIVE

1шт.

8

166972R1

RING

SHAFT SEALING

2шт.

9

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

10

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

623 RPM SHAFT

1шт.

11

66068C1

GEAR

CLUTCH CUP -44T- W/SIDE DRIVE P T O

1шт.

11

3125149R1

CUP

CLUTCH - W/OUTSIDE DRIVE P T O

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

12

401722R1

PISTON

CLUTCH

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL - INNER

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL - OUTER

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

17

66182C1

SPRING

PISTON RETURN

6шт.

18

66186C92

PLATE ASSY.

CLUTCH BACKING

1шт.

38-32016

PIN,5/16" x 1", Coiled

Pin, 5/16" x 1", Coiled

6шт.

37-1516

DOWEL,5/16" x 1"

5/16 X 1 DOWEL - OPTIONAL

6шт.

19

401720R1

CIRCLIP

BACKING PLATE

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

21

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

23

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

23

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT - OPTIONAL

1шт.

24

66193C91

PACKAGE

IPTO CLUTCH PLATE - SERVICE - CONSISTS OF

1шт.

DISC

5шт.

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

1093320R1

PRODUCT GRAPHIC

IPTO SPEED 1000 (NOT ILLUSTRATED)

1шт.

1093229R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED WARNING - AGRICULTURAL MACHINES (NOT ILLUSTRATED)

1шт.

1093230R1

PRODUCT GRAPHIC

IPTO SPEED WARNING - INDUSTRIAL MACHINES (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 43
