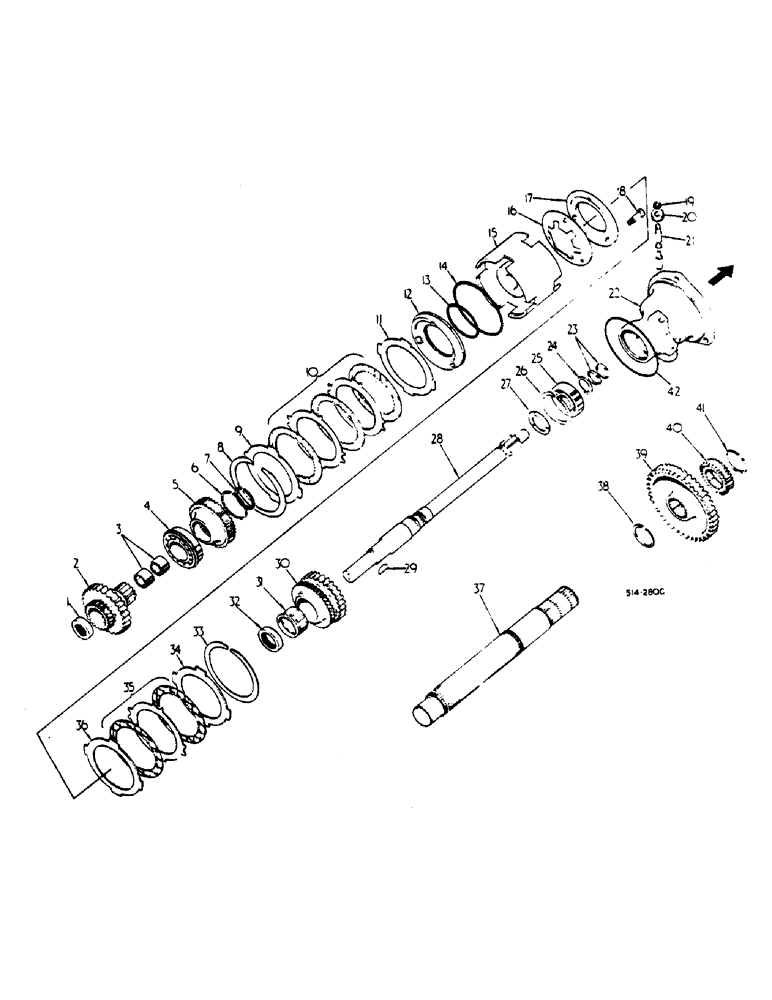

Запчасти Case IH 485 (00D14) - TORQUE AMPLIFIER - SYNCHROMESH DRIVE - (04) - Drive Train

1

3118322R91

BEARING, NEEDLE

1шт.

2

3118321R2

PINION

GEAR DIRECT DRIVE HUB - 28

1шт.

3

550839R91

BEARING, NEEDLE

CLUTCH SHAFT

2шт.

3

550839R91

BEARING, NEEDLE

CLUTCH SHAFT - OPTIONAL

2шт.

4

70126C91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

DIRECT DRIVE GEAR

1шт.

4

42347D

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

398323R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

3066862R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

DIRECT DRIVE GEAR

1шт.

4

3066860R91

BALL BEARING

DIRECT DRIVE GEAR - OPTIONAL

1шт.

5

404199R3

SPROCKET ASSY.

CARRIER, DIRECT DRIVE CLUTCH DISC

1шт.

6

336000R1

SNAP RING,#175, 1.640", Ext

DISC CARRIER RETAINING

1шт.

7

583976R1

SNAP RING,#125, 1.179", Ext

CLUTCH CUP RETAINING

1шт.

8

401720R1

CIRCLIP

BACKING PLATE RETAINING

1шт.

9

402569R1

PLATE

CLUTCH BACKING, 485, Serial Range: -10157

1шт.

9

402569R1

PLATE

CLUTCH BACKING, 248, Serial Range: -858

1шт.

9

1502340C1

PLATE

CLUTCH BACKING, 385 485, Start Serial: 10158

1шт.

9

1502340C1

PLATE

CLUTCH BACKING, 248, Start Serial: 859

1шт.

10

534936R93

KIT

TA CLUTCH PLATE - SERVICE - CONSISTS OF

1шт.

PLATE

6шт.

PLATE

4шт.

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

11

402572R1

PLATE

PISTON BACKING

1шт.

12

402570R1

PISTON

DIRECT DRIVE CLUTCH

1шт.

13

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

CLUTCH PISTON INNER SEALING

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON OUTER SEALING

1шт.

15

1502339C1

HOUSING

CUP, DIRECT DRIVE CLUTCH

1шт.

16

402574R1

BELLEVILLE WASHER

BELLEVILLE

3шт.

17

402573R1

PLATE

CLUTCH LOCK - UP PRESSURE

1шт.

18

402575R1

BOLT,1/4" - 28 x 1-5/16"

PISTON RETURN, 485, Serial Range: -10157

3шт.

18

402575R1

BOLT,1/4" - 28 x 1-5/16"

PISTON RETURN, 248, Serial Range: -858

3шт.

18

1502340C1

PLATE

BOLT, PISTON RETURN, 385 485, Start Serial: 10158

3шт.

18

1502340C1

PLATE

BOLT, PISTON RETURN, 248, Start Serial: 859

3шт.

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

3шт.

65240C1

SQUARE NUT

1/4-28 MACH SCREW

3шт.

19

896045R1

SNAP RING,#37, Ext

1шт.

20

531539R1

COLLAR

TA CONTROL

1шт.

21

536975R1

STEM

TA CONTROL

1шт.

22

531540R5

CAGE

IPTO AND CLUTCH CUP RETAINER

1шт.

23

406275R1

RING

CLUTCH SHAFT PISTON

2шт.

24

359141R1

RING, SNAP

RING SNAP CLUTCH SHAFT BRG OUTER RETAINING

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

CLUTCH SHAFT

1шт.

25

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

CLUTCH SHAFT

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

CLUTCH SHAFT

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

CLUTCH SHAFT

1шт.

25

71270C91

BEARING, BALL

CLUTCH SHAFT - OPTIONAL

1шт.

26

377911R1

RING, SNAP

RING SNAP CLUTCH SHAFT BRG INNER RETAINING

1шт.

27

402562R1

THRUST WASHER

CLUTCH SHAF

1шт.

28

1502173C91

SHAFT ASSY.

CLUTCH

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4-20 X 1/4 HEX-SOC-HD-F-PT SET - OPTIONAL W/102 569

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4-20 X 1/4 HEX-SOC-HD CUP PT SET - OPTIONAL W/222 386

1шт.

29

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

Clutch cup retainer

1шт.

30

402563R2

PINION

GEAR ASSY, DRIVE

1шт.

31

402566R1

BEARING ASSY

CLUTCH ASSY, SPRAG

1шт.

32

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SPRAG BORE

1шт.

33

401720R1

CIRCLIP

BACKING PLATE RETAINING

1шт.

34

402569R1

PLATE

CLUTCH BACKING

1шт.

35

- SEE PACKAGE 534936R93

1шт.

36

402572R1

PLATE

PISTON BACKING

1шт.

37

404104R3

SHAFT

TA

1шт.

38

381486R1

SNAP RING,#187, 1.759", Ext

TA DRIVEN GEAR AND PUMP GEAR RETAINING -

1шт.

39

404105R1

PINION

GEAR, TA DRIVEN - 42 T

1шт.

40

404106R1

GEAR

PUMP DRIVE 27 T

1шт.

41

381486R1

SNAP RING,#187, 1.759", Ext

TA DRIVEN GEAR AND PUMP GEAR RETAINING -

1шт.

42

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 X 5-5/8 X 1/8

1шт.

1502171C91

FIP KIT

AS REQUIRED - CONSISTS OF (NOT ILLUSTRATED)

1шт.

531540R5

CAGE

(NOT ILLUSTRATED)

1шт.

1502173C91

SHAFT ASSY.

CLUTCH (NOT ILLUSTRATED)

1шт.

71230C2

SHAFT

IPTO DRIVE( NOT ILLUSTRATED)

1шт.

1502338C91

SHIM KIT

T/A CLUTCH - CONSISTS OF (NOT ILLUSTRATED)

1шт.

70021C1

SHIM

0.014 (NOT ILLUSTRATED)

2шт.

70022C1

SHIM,98.6mm ID x 125.98mm OD x 0.64mm Thk

0.024 (NOT ILLUSTRATED)

2шт.

70023C1

SHIM,98.6mm ID x 125.98mm OD x 0.89mm Thk

0.036 NOT SERVICED SEPARATELY - (NOT ILLUSTRATED)

2шт.
