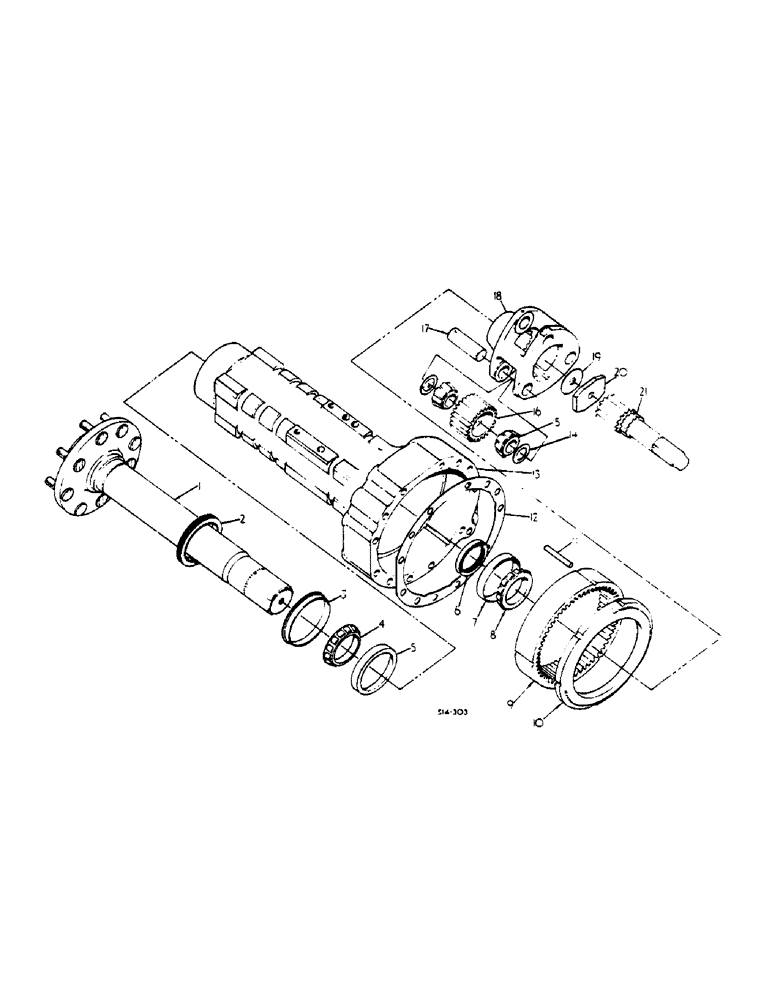

Запчасти Case IH 485 (00D11) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

404340R22

HALF SHAFT

AXLE ASSY REAR

2шт.

539276R1

BOLT (SPREADER)

REAR WHEEL

16шт.

3047575R3

NUT,Wheel, 5/8"-18

REAR WHEEL

16шт.

1

528439R21

AXLE

REAR - TRACTORS W/HAND OPERATED DRUM BRAKE

2шт.

528440R2

BOLT

REAR WHEEL

16шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

5/16-18 X 1 SLT-F-HD MACH

4шт.

2

105470C1

OIL SEAL

REAR AXLE OUTER

2шт.

3

399754R1

SLEEVE

SLEEVE, WEAR

2шт.

4

ST2000A

TAPERED BEARING

REAR AXLE OUTER

2шт.

4

102160H

BEARING ASSY

REAR AXLE OUTER

2шт.

4

399756R91

BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"

REAR AXLE OUTER - OPTIONAL

2шт.

5

BEARING, REAR AXLE OUTER CUP - ORDER ST2000A OR 102160H OR 399756R91

2шт.

6

530094R1

SEAL

REAR AXLE INNER OIL

2шт.

6

530094R1

SEAL

REAR AXLE INNER OIL - OPTIONAL

2шт.

7

BEARING, REAR AXLE INNER CUP - ORDER 298188R91 OR 298198R91 - OPTIONAL W/29214H

2шт.

8

298188R91

BEARING ASSY

REAR AXLE INNER

2шт.

8

298197R91

BEARING ASSY,63.5 mm ID x 21.996 mm

REAR AXLE INNER - OPTIONAL

2шт.

9

535316R1

GEAR, RING

RING, GEAR 66 T

2шт.

10

114620C1

RING,260mm OD

BRAKE OUTER DISC

2шт.

11

529685R1

DOWEL

3/8 X 2-1/4 DOWEL

6шт.

12

399762R4

GASKET

REAR AXLE CARRIER

2шт.

13

399758R4

AXLE CARRIER

REAR LH

1шт.

13

528442R4

CARRIER

REAR AXLE LH - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

13

399761R3

CARRIER

REAR RH

1шт.

13

528443R4

CARRIER

REAR RH - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

5/8-11 X HEX HD CAP

2шт.

14

65420C1

SHIM KIT

PLANET GEAR SERVICE

1шт.

15

710475

ROLLER BEARING

PLANET GEAR

12шт.

16

399784R2

PINION

GEAR, PLANET

6шт.

17

399788R1

PIN

PLANET SHAFT

6шт.

9416325

LOCK PIN,5/16" x 1 1/8", Slotted

5/16" x 1 1/8", Slotted

6шт.

18

404339R3

PINION CARRIER

GEAR CARRIER PLANET - ON ORDERS FOR 404339R2 FURNISH 404339R3 W/3 OFF 399784R2

2шт.

19

65422C1

SHIM KIT

REAR AXLE RETAINER

1шт.

20

399748R1

SPACER

PLANET CARRIER RET

2шт.

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-18 X 1-1/2 HEX-HD CAP

2шт.

21

404338R1

SHAFT

PLANETARY DRIVE RH

1шт.

21

404337R1

SHAFT

PLANETARY DRIVE LH

1шт.
