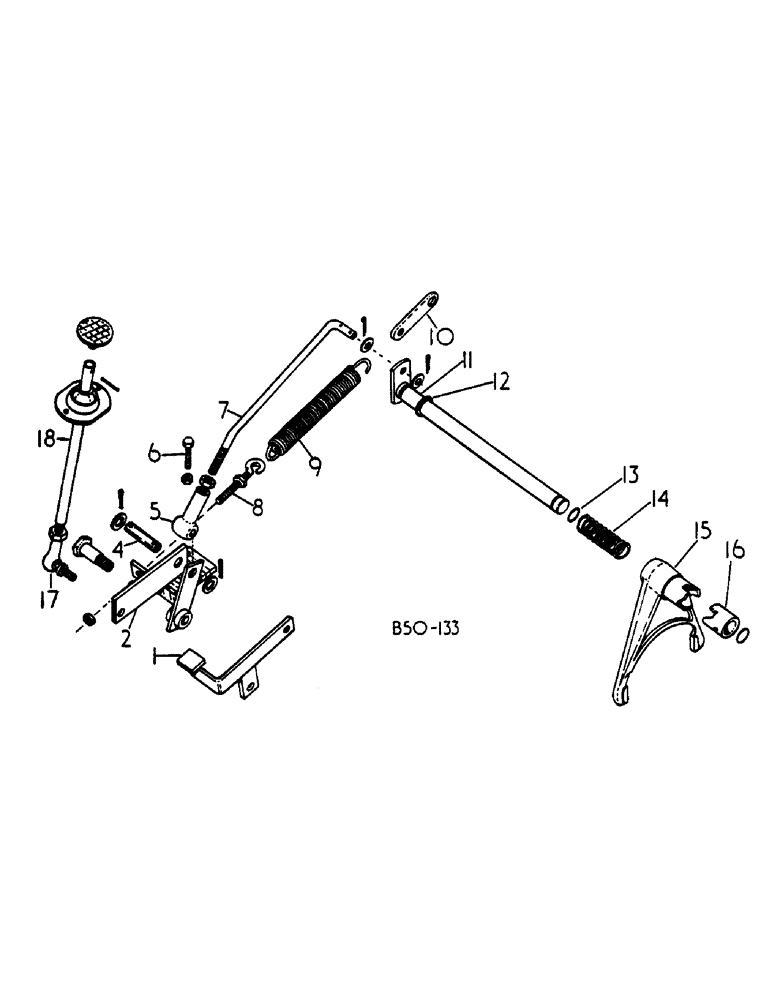

Запчасти Case IH 485 (00D09) - DIFFERENTIAL LOCK - SUPER DELUXE CAB (04) - Drive Train

1

3123910R1

STOP

DIFFERENTIAL LOCK PEDAL

1шт.

2

3123907R1

LEVER ASSY.

DIFFERENTIAL LOCK

1шт.

3

527885R1

BOLT

DIFFERENTIAL LOCK PEDAL PIVOT

1шт.

4

3123908R1

PIN

DIFFERENTIAL LOCK

1шт.

95-81058

WASHER,17/32" x 7/8" x .060"

17/32 X 7/8 X 1/16

2шт.

80756

COTTER PIN,1/8" x 3/4"

2шт.

5

527880R1

END

DIFFERENTIAL LOCK PEDAL RETURN

1шт.

6

353669X1

SCREW

1/4-20 X 1 HEX HD CAP

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

7

527879R1

ROD

DIFFERENTIAL LOCK PEDAL

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

95-51041

WASHER,3/8" x 7/8" x .083"

13/32 X 3/4 X 1/16

2шт.

80756

COTTER PIN,1/8" x 3/4"

2шт.

8

100998A1

BOLT

BOLT, EYE PEDAL RETURN SPRING

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

9

3121849R2

SPRING

DIFFERENTIAL LOCK PEDAL RETURN

1шт.

10

3123909R1

PLATE

DIFFERENTIAL LOCK SPRING

1шт.

11

527871R1

SHAFT ASSY.

DIFFERENTIAL LOCK, Serial Range: -7318

1шт.

11

527871R1

SHAFT ASSY.

DIFFERENTIAL LOCK, 248, Serial Range: -845

1шт.

11

1500384C1

SHAFT ASSY.

DIFFERENTIAL LOCK

1шт.

1500388C2

PIN

CAM ACTUATING

1шт.

38-2810

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 166A FLAT, Start Serial: 7319

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 166A FLAT, 248, Start Serial: 846

1шт.

12

495-81036

WASHER,19.84mm ID x 31.75mm OD x 0.84mm Thk

25/32 X 1-1/4 X 22 GA

1шт.

12

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

23/32 X 1-1/4 X 16 GA - AS REQUIRED

1шт.

13

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

14

527828R1

SPRING, DIFF LOCK FORK ACTUATING

1шт.

15

527874R3

FORK

DIFFERENTIAL LOCK SHAFT, Serial Range: -7318

1шт.

15

527874R3

FORK

DIFFERENTIAL LOCK SHAFT, 248, Serial Range: -845

1шт.

15

1500386C1

FORK

DIFFERENTIAL LOCK SHAFT, Start Serial: 7319

1шт.

15

1500386C1

FORK

DIFFERENTIAL LOCK SHAFT, 248, Start Serial: 846

1шт.

16

527877R1

CAM

DIFFERENTIAL LOCK SHAFT

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

, Serial Range: -7318

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

248, Serial Range: -845

1шт.

17

3125538R1

JOINT

BALL

1шт.

18

3125537R1

PEDAL

SPARE PART DIFFERENTIAL LOCK

1шт.
