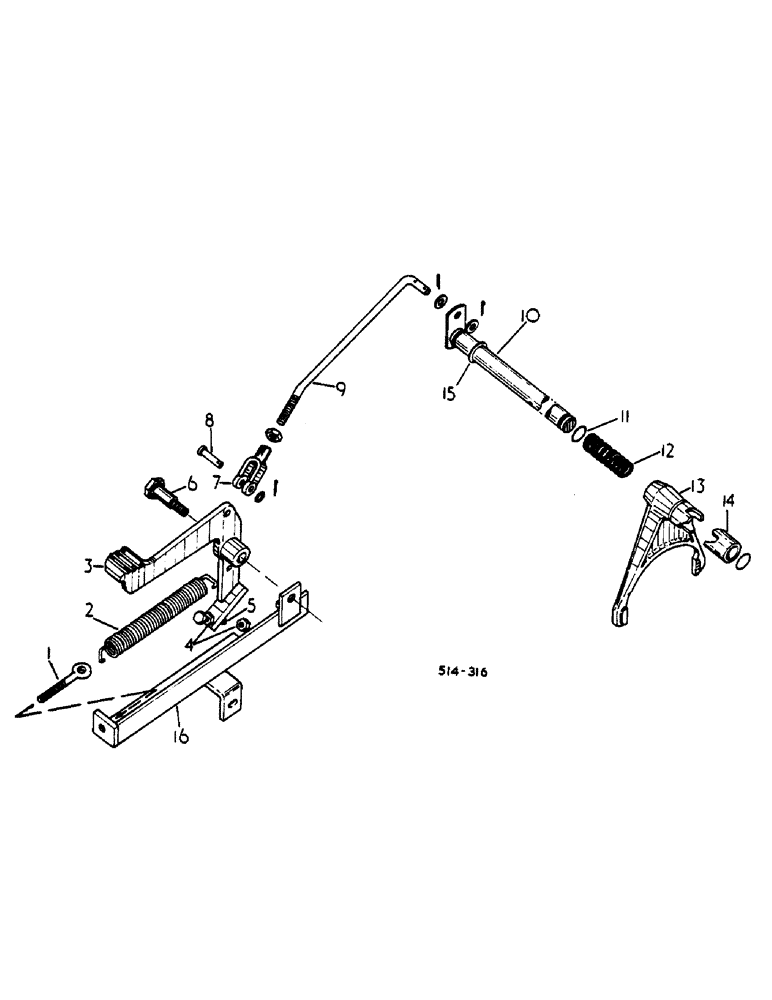

Запчасти Case IH 485 (00D07) - DIFFERENTIAL LOCK, MACHINES FITTED W/CAB (04) - Drive Train

1

100998A1

BOLT

BOLT, EYE PEDAL RETURN SPRING

1шт.

125-10003

NUT,3/8"-16, G5, LH

3/8 HEX

2шт.

2

3121849R2

SPRING

DIFFERENTIAL LOCK PEDAL RETURN

1шт.

3

3116181R3

PEDAL

DIFFERENTIAL LOCK

1шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

5

353669X1

SCREW

1/4-20 X 1 HEX CAP

1шт.

6

3116897R1

BOLT,Lock, 9/16" - 12 x 2.38"

DIFFERENTIAL LOCK PEDAL PIVOT

1шт.

7

753984R1

CLEVIS,3/8" - 16

ROD END

1шт.

8

114785

3/8 X 1-1/16 CLEVIS

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

95-51041

WASHER,3/8" x 7/8" x .083"

13/32 X 3/4 X 1/16

1шт.

9

3116187R91

ROD

DIFFERENTIAL LOCK PEDAL

1шт.

80756

COTTER PIN,1/8" x 3/4"

2шт.

95-51041

WASHER,3/8" x 7/8" x .083"

13/32 X 3/4 X 1/16

2шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

527871R1

SHAFT ASSY.

DIFFERENTIAL LOCK, Serial Range: -7319

1шт.

10

527871R1

SHAFT ASSY.

DIFFERENTIAL LOCK, 248, Start Serial: 845

1шт.

10

1500384C1

SHAFT ASSY.

DIFFERENTIAL LOCK

1шт.

1500388C2

PIN

CAM ACTUATING

1шт.

38-2810

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 166A FLAT, Start Serial: 7319

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 166A FLAT, 248, Start Serial: 846

1шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

12

527878R1

SPRING

DIFFERENTIAL LOCK FORK ACTUATING

1шт.

13

527874R3

FORK

DIFFERENTIAL LOCK SHAFT, Serial Range: -7318

1шт.

13

527874R3

FORK

DIFFERENTIAL LOCK SHAFT, 248, Serial Range: -845

1шт.

13

1500386C1

FORK

DIFFERENTIAL LOCK SHAFT 7319, Start Serial: 7319

1шт.

13

1500386C1

FORK

DIFFERENTIAL LOCK SHAFT, 248, Start Serial: 846

1шт.

14

527877R1

CAM

DIFFERENTIAL LOCK SHAFT

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

, Serial Range: -7318

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

248, Serial Range: -845

1шт.

15

495-81036

WASHER,19.84mm ID x 31.75mm OD x 0.84mm Thk

25/32 X 1-1/4 X 22

1шт.

15

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 X 16 - AS REQUIRED

1шт.

16

3116182R1

SUPPORT ASSY.

DIFFERENTIAL LOCK PEDAL

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

495-11053

WASHER,1/2", SAE

531 X 1.062 X .074

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.
