Запчасти Case IH 485 (00D05) - DIFFERENTIAL LOCK, MACHINES NOT FITTED W/CAB (04) - Drive Train

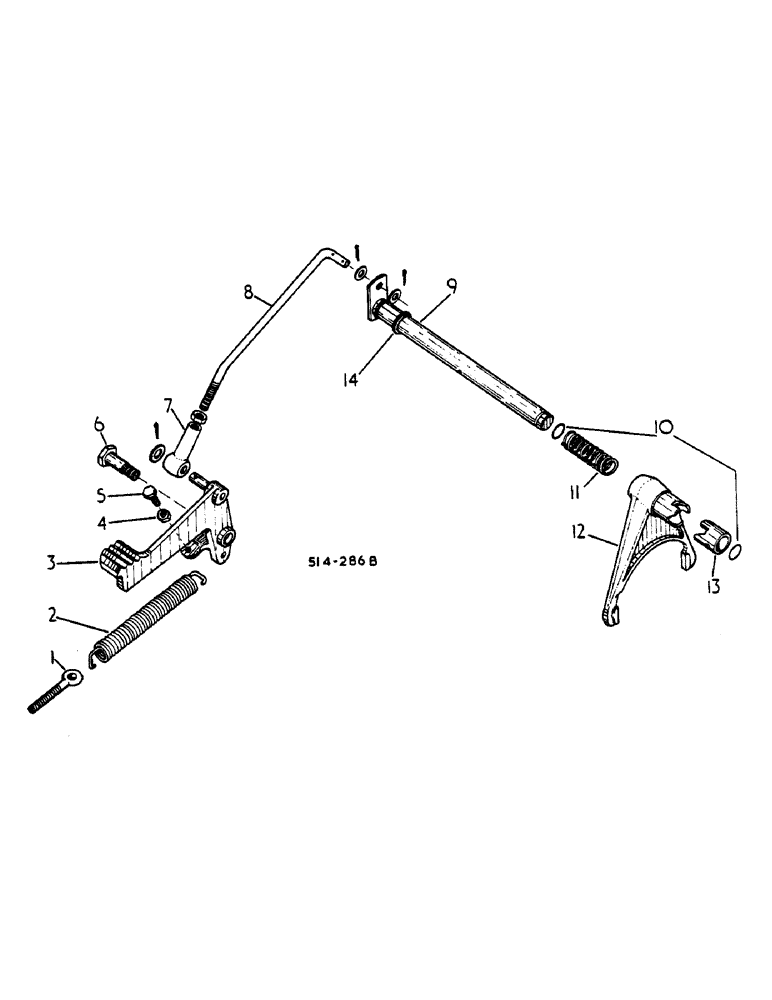

Схема запчастей Case IH 485 - (00D05) - DIFFERENTIAL LOCK, MACHINES NOT FITTED W/CAB (04) - Drive Train
7
9
10
11
12
5
3
4
1
6
13
8
2
1
14

Артикул

Название

Примечание

Количество

1

530046R1

BOLT

PEDAL RETURN SPRING EYE

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

2

3121849R2

SPRING

DIFFERENTIAL LOCK PEDAL RETURN

1шт.

3

66441C1

PEDAL

DIFFERENTIAL LOCK

1шт.

95-81058

WASHER,17/32" x 7/8" x .060"

17/32 X 7/8 X 1/16

1шт.

80756

COTTER PIN,1/8" x 3/4"

1шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

5

353669X1

SCREW

1/4 - 20 X 1 HEX HD CAP

1шт.

6

527885R1

BOLT

DIFFERENTIAL LOCK PEDAL RETURN

1шт.

7

527880R1

END

DIFFERENTIAL LOCK PEDAL RETURN

1шт.

8

527879R1

ROD

DIFFERENTIAL LOCK PEDAL

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

95-51041

WASHER,3/8" x 7/8" x .083"

13/32 X 3/4 X 1/16

2шт.

Q103384

PIN, 1/8 X 3/4 COT

2шт.

9

527871R1

SHAFT ASSY.

DIFFERENTIAL LOCK, Serial Range: -7318

1шт.

9

527871R1

SHAFT ASSY.

DIFFERENTAIL LOCK, 248, Serial Range: -845

1шт.

9

1500384C1

SHAFT ASSY.

DIFFERENTIAL LOCK

1шт.

1500388C2

PIN

CAM ACTUATING

1шт.

38-2810

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 166A FLAT, Start Serial: 7319

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 166A FLAT, 278, Start Serial: 846

1шт.

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 166A FLAT 278, Start Serial: 846

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

11

527878R1

SPRING

DIFFERENTIAL LOCK FORK ACTUATING

1шт.

12

527874R3

FORK

DIFFERENTIAL LOCK SHAFT, Serial Range: -7318

1шт.

12

527874R3

FORK

DIFFERENTIAL LOCK SHAFT, 248, Serial Range: -845

1шт.

12

1500386C1

FORK

DIFFERENTIAL LOCK SHAFT, Start Serial: 7319

1шт.

12

1500386C1

FORK

DIFFERENTIAL LOCK SHAFT, 248, Start Serial: 846

1шт.

13

527877R1

CAM

DIFFERENTIAL LOCK SHAFT

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

, Serial Range: -7318

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

248, Serial Range: -845

1шт.

14

495-81036

WASHER,19.84mm ID x 31.75mm OD x 0.84mm Thk

25/32 X 1-1/4 X 22 GA

1шт.

14

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 X 1-1/4 X 16 GA - AS REQUIRED

1шт.

Выбрано товаров: 33
