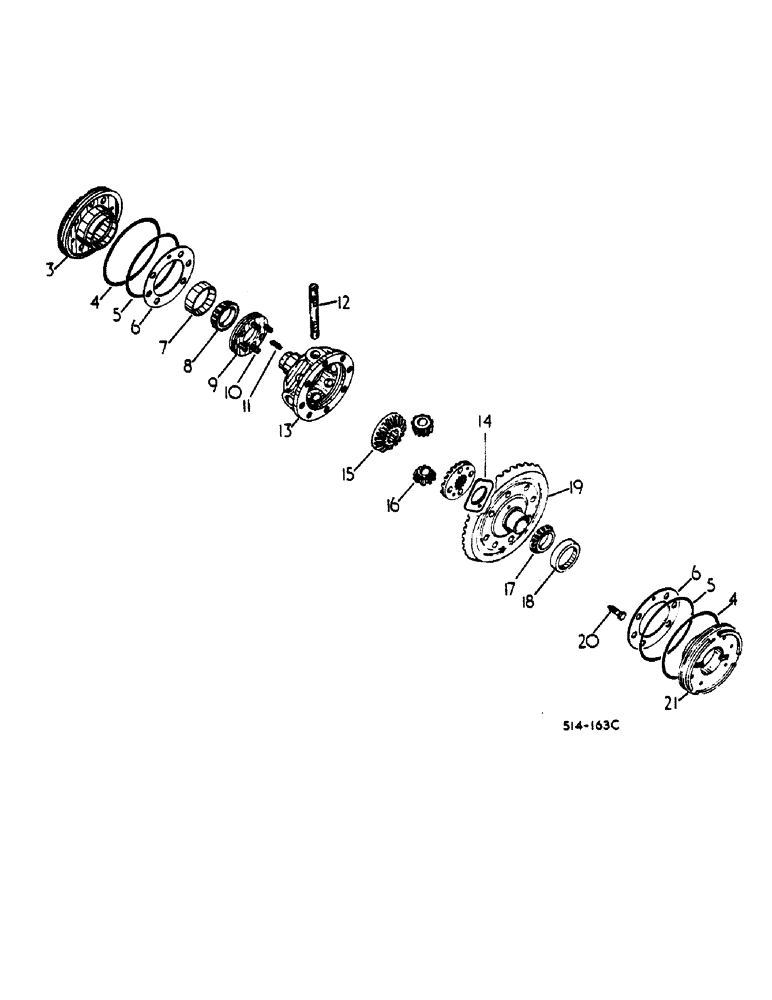

Запчасти Case IH 485 (00D03) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

- NOT APPLICABLE

1шт.

2

- NOT APPLICABLE

1шт.

3

399770R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG RH

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2-13 X 1-1/2 HEX HD CAP

4шт.

4

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

Differential brg carrier

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 X 7-7/8 X 3/16 - DIFFERENTIAL BRG CARRIER SEAL

2шт.

6

65419C1

BEARING CARRIER

DIFFERENTIAL BRG CARRIER - AS REQUIRED

1шт.

7

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

DIFFERENTIAL RH

1шт.

7

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

DIFFERENTIAL RH - OPTIONAL

1шт.

8

BEARING ASSY, DIFFERENTIAL CONE RH - ORDER 105504H OR 402353R91

1шт.

9

399764R11

LOCKING RING

DIFFERENTIAL LOCK

1шт.

10

399765R1

PIN

COUPLING

4шт.

11

400867R1

SPRING

DIFFERENTIAL LOCK

2шт.

12

399775R1

SHAFT

DIFFERENTIAL PINION

4шт.

13

399763R1

PINION CARRIER

GEAR CARRIER DIFFERENTIAL

1шт.

14

399778R1

THRUST WASHER

DIFFERENTIAL BEVEL GEAR THRUST

1шт.

15

404336R1

PINION

GEAR, DIFFERENTIAL BEVEL 20T

2шт.

16

399776R1

PINION

GEAR, DIFFERENTIAL PINION 10T

2шт.

17

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

DIFFERENTIAL LH

1шт.

17

399766H

BEARING ASSY, DIFFERENTIAL LH - OPTIONAL

1шт.

18

BEARING ASSY, DIFFERENTIAL CUP LH - ORDER 105502H OR 399766R91

1шт.

19

99449C1

GEAR, BEVEL

BEVEL GEAR SET, BEVEL GEARS MATCHED -12/53T - CONSISTS OF

1шт.

SHAFT

1шт.

GEAR

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

1/2-13 X 2-1/8 DOWEL

4шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE 8

4шт.

21

399769R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG LH

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE 8

4шт.
