Запчасти Case IH 485 (00D01) - SPEEDOMETER DRIVE (04) - Drive Train

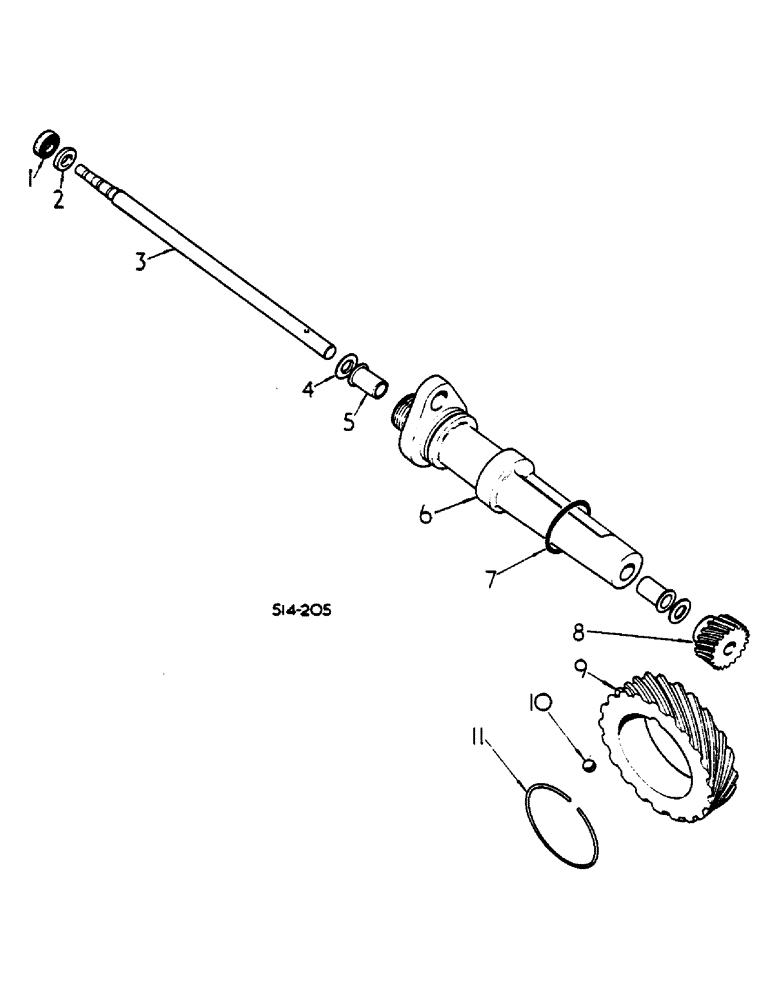

Схема запчастей Case IH 485 - (00D01) - SPEEDOMETER DRIVE (04) - Drive Train
3
4
6
7
8
9
11
10
5
2
1

Артикул

Название

Примечание

Количество

1

529762R1

SEAL

DRIVE SHAFT OIL

1шт.

2

529758R1

COLLAR

SPEEDOMETER DRIVE SHAFT

1шт.

3

529757R11

PIN

SHAFT ASSY, SPEEDOMETER DRIVE

1шт.

4

529760R1

WASHER, THRUST

SPARE PART DRIVE SHAFT

2шт.

5

529761R1

BUSHING

BEARING, DRIVE SHAFT

2шт.

6

529763R1

HOUSING

SPARE PART SPEEDOMETER

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

7

370943R1

O-RING,1.114" ID x 0.07" Width

1-1/8 X 1-1/4 X 1/16

1шт.

8

529778R1

GEAR

SPEEDOMETER DRIVEN 20T

1шт.

38-3810

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

9

529777

GEAR, SPEEDOMETER DRIVEN 16T

1шт.

10

16008R1

BALL,1/4" Dia, Steel

1/4 CR-STL

1шт.

11

381486R1

SNAP RING,#187, 1.759", Ext

DRIVE GEAR RETAINER

1шт.

Выбрано товаров: 13
