Запчасти Case IH 485 (00C17) - CLUTCH, 484/5719 & UP, 385485/7000 & UP, 248/692 & UP (04) - Drive Train

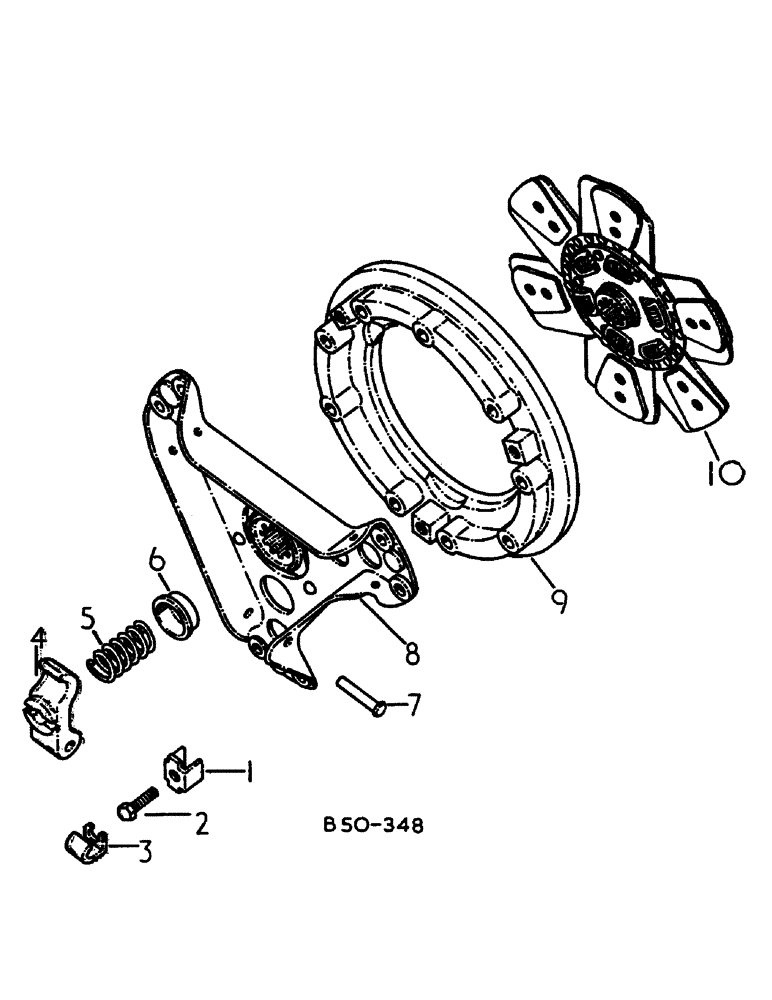

Схема запчастей Case IH 485 - (00C17) - CLUTCH, 484/5719 & UP, 385485/7000 & UP, 248/692 & UP (04) - Drive Train
10
6
4
5
3
8
9
1
2
7

Артикул

Название

Примечание

Количество

1500655C91

COVER ASSY

CLUTCH PRESSURE PLATE - CONSISTS OF REF NOS 1-9

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

1

NSS

NOT SOLD SEPARAT

WASHER

1шт.

2

1500654C1

SUPPORT

KIT, WEAR CLIP

3шт.

3

1500653C1

KIT

COVER PARTS - W/SCREW CLIP NUT AND WASHER

1шт.

3

1500653C1

KIT

COVER PARTS - W/SCREW CLIPS AND NUT

1шт.

NSS

NOT SOLD SEPARAT

NUT, 5/16-24 HEX

3шт.

4

102812A1

PACKAGE, REPAIR

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

6

NSS

NOT SOLD SEPARAT

CUP, SPRING

3шт.

7

NSS

NOT SOLD SEPARAT

PIN, PIVOT

3шт.

8

69914C1

HUB ASSY.

KIT, BRACKET

1шт.

9

69913C1

KIT

PRESSURE PLATE

1шт.

10

293248A1

CLUTCH DISC,279.4mm OD

CLUTCH DISK PLATE ASSY, DRIVEN

1шт.

10

293248A1R

REMAN-CLUTCH DISC

248 SN 692 & Aft., 485 SN 7000 & Up, N.A. Only

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

Выбрано товаров: 17
