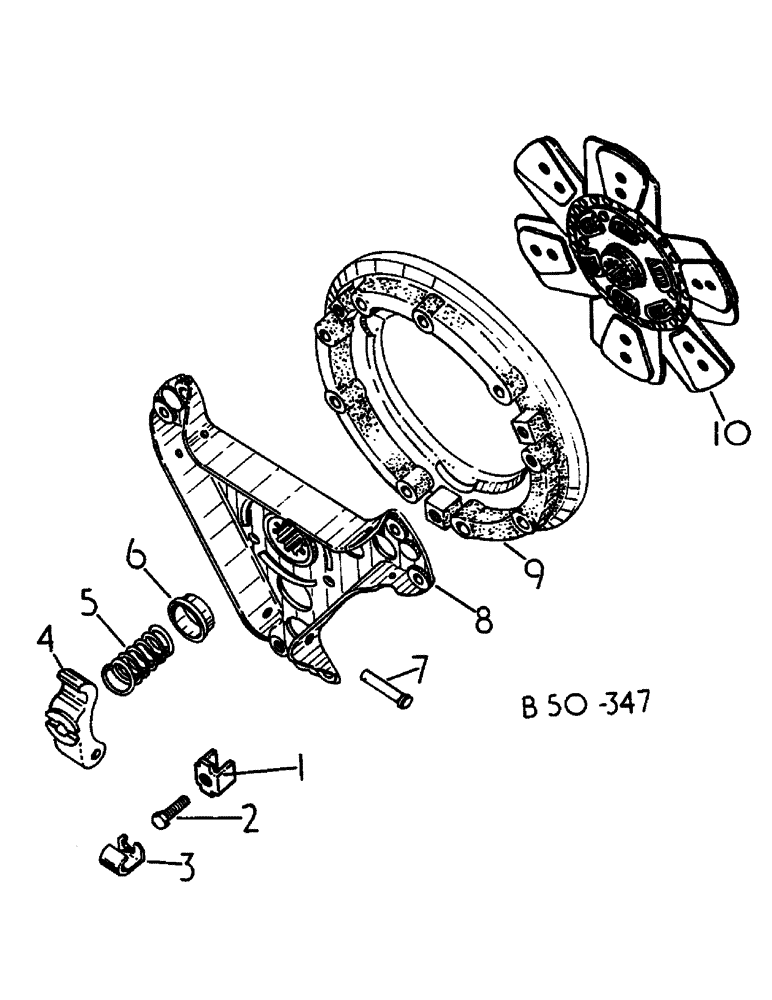

Запчасти Case IH 485 (00C13) - CLUTCH, 484/5719 & UP, 385485/7000 & UP, 248/692 & UP (04) - Drive Train

1500655C91

COVER ASSY

CLUTCH PRESSURE PLATE - CONSISTS REF NOS 1-9

1шт.

492-11031

LOCK WASHER,5/16"

6шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

1

1500654C1

SUPPORT

KIT, WEAR CLIP

3шт.

2

1500653C1

KIT

COVER PARTS - W/SCREW CLIP NUTS AND WASHER

1шт.

2

1500653C1

KIT

COVER PARTS - W/SCREW CLIPS AND NUT

1шт.

NSS

NOT SOLD SEPARAT

NUT, 5/16-24 HEX

3шт.

3

NSS

NOT SOLD SEPARAT

CLIP, RETURN - NOT SERVICED

3шт.

4

102812A1

PACKAGE, REPAIR

LEVER, AND PIVOT PIN

1шт.

5

69910C2

KIT

SPRING, AND CUP PRESSURE

1шт.

6

NSS

NOT SOLD SEPARAT

CUP, SPRING - NOT SERVICED

3шт.

7

NSS

NOT SOLD SEPARAT

PIN, PIVOT - NOT SERVICED

3шт.

8

69914C1

HUB ASSY.

BRACKET

1шт.

9

69913C1

KIT

PLATE, PRESSURE

1шт.

10

293248A1

CLUTCH DISC,279.4mm OD

CLUTCH DISK CLUTCH DISC - 5 RIVETS

1шт.

10

293248A1R

REMAN-CLUTCH DISC

248 SN 692 & Aft., 485 SN 7000 & Up, N.A. Only

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

10

3129463R91

PLATE ASSY.

CLUTCH DRIVEN DISC - OPTIONAL

1шт.
