Запчасти Case IH 485 (00C09) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

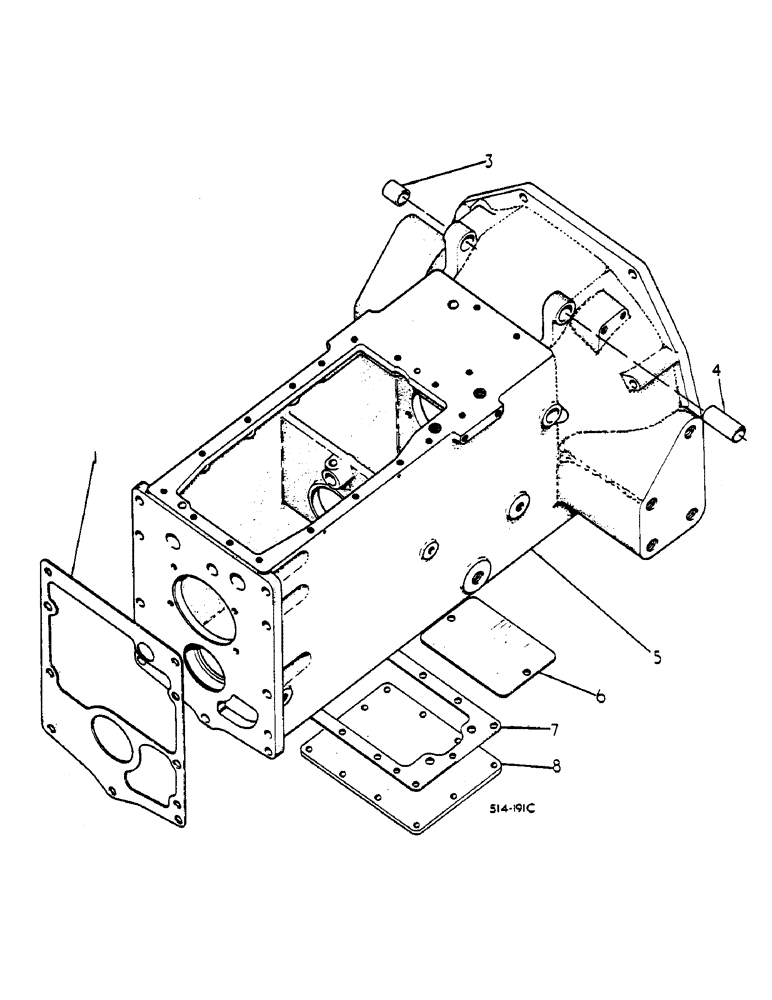

Схема запчастей Case IH 485 - (00C09) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train
3
1
4
6
5
7
8

Артикул

Название

Примечание

Количество

1

399814R5

GASKET

CLUTCH HOUSING TO REAR FRAME

1шт.

2

NOT APPLICABLE

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

CLUTCH AND BRAKE SHAFT

1шт.

4

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

BUSHING, LH BRAKE PEDAL PIVOT

1шт.

4

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

LH BRAKE PEDAL PIVOT - OPTIONAL

1шт.

5

537097R96

HOUSING

CLUTCH - ALSO INCLUDES BEARING 399820R91 OR 527746R91 IN SPEED TRANSMISSION

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2-13 X 1-1/2 HEX HD CAP TO REAR FRAME

9шт.

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1/2-13 X 5-1/2 HEX HD CAP THRU SPACER TO CLUTCH HSG

1шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 HEX HD CAP THRU CLUTCH HSG/SPACER TO CRANKCASE

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2-13 X 3-1/2 HEX HD CAP THRU PAN/SPACER TO CLUTCH HSG

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Thru Spacer to Clutch Hsg

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

425-108

NUT,1/2" - 13, Gr 5

3шт.

703785

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2-13 X 6 HEX HD CAP THRU SPACER TO CLUTCH HSG

1шт.

63776

DOWEL,3/8" x 3/4"

3/8 X 3/4 DOWEL CLUTCH HSG TOP COVER

1шт.

20556R1

DOWEL,1/2" x 3/4"

1шт.

37-1816

DOWEL,1/2" x 1"

1/2 X 1 DOWEL REAR ENGINE SUPPORT

2шт.

327411

PLUG

5/8 CUP

1шт.

3113103R1

PLUG

3/4-14 AUTO HEX HD PIPE

1шт.

9410359

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 TUBE TA PRESSURE PORT PLUG

1шт.

6

399817R1

COVER

CLUTCH COMPARTMENT

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

7

402556R3

GASKET,1.04mm Thk

CLUTCH HOUSING BOTTOM REAR COVER

1шт.

8

1536388C1

COVER

CLUTCH HOUSING BOTTOM REAR

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.

Выбрано товаров: 26
