Запчасти Case IH 485 (00C02) - RANGE TRANSMISSION - IN REAR FRAME - (04) - Drive Train

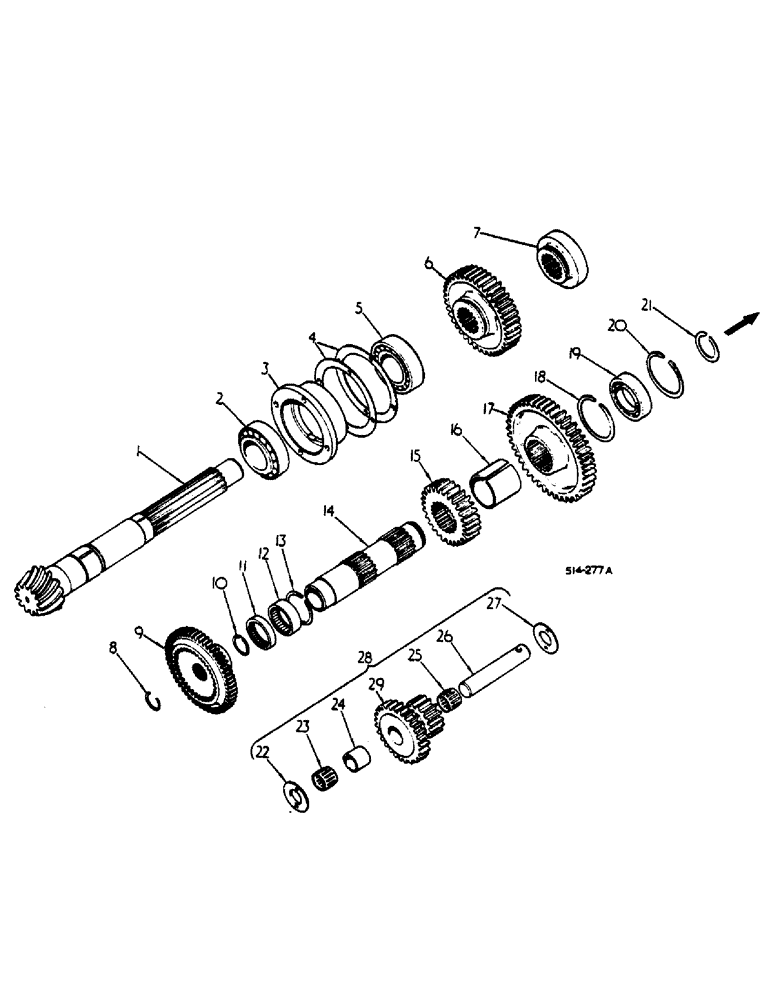

Схема запчастей Case IH 485 - (00C02) - RANGE TRANSMISSION - IN REAR FRAME - (04) - Drive Train
26
2
12
24
29
22
18
27
25
7
3
11
23
20
8
21
4
16
14
28
1
15
10
13
17
9
19
6
5

Артикул

Название

Примечание

Количество

1

99449C1

GEAR, BEVEL

BEVEL GEAR SET, BEVEL GEARS MATCHED - 12/53T - CONSISTS OF

1шт.

SHAFT

1шт.

GEAR

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

MAIN SHAFT REAR

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

MAIN SHAFT REAR - OPTIONAL

1шт.

3

399825R2

BALL RACE

CAGE, MAIN SHAFT BRG

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

MAIN SHAFT BRG CAGE - SERVICE - CONSISTS OF

1шт.

SHIM

2шт.

SHIM

5шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

MAIN SHAFT FRONT

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

MAIN SHAFT FRONT - OPTIONAL

1шт.

6

1286469C1

GEAR

FWD REVERSE SLIDING, 40T - SYNCHROMESH DRIVE TRACTORS - SLOW SPEED TYPE A

1шт.

6

1286470C1

GEAR

FWD REVERSE SLIDING, 42T - SYNCHROMESH DRIVE TRACTORS - FAST SPEED TYPE B

1шт.

7

399830R2

COLLAR

HI-SPEED - SYNCHROMESH DRIVE TRACTORS

1шт.

8

533266R1

RING, SNAP

RING SNAP IPTO FRONT DRIVEN SHAFT REAR

1шт.

9

404218R1

GEAR

PUMP DRIVE, 55T

1шт.

9

404217R1

GEAR

SPARE PART PUMP DRIVE 62T - 385

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

PUMP DRIVE GEAR RETAINER

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

PUMP DRIVE GEAR

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

PUMP DRIVE GEAR - OPTIONAL

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT - OPTIONAL

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

LO RANGE DRIVING GEAR RET

1шт.

14

404096R1

SHAFT

RANGE TRANSMISSION

1шт.

15

404100R1

PINION

GEAR, LO RANGE DRIVING, 27T - SYNCHROMESH DRIVE TRACTORS - SLOW SPEED TYPE A

1шт.

15

103150C1

PINION

GEAR, LO RANGE DRIVING, 24T - FAST SPEED TRAIN TYPE B

1шт.

16

399835R1

BUSHING

COUNTERSHAFT GEARS

1шт.

17

404097R1

GEAR

CONSTANT MESH, 46T - SYNCHROMESH DRIVE TRACTORS

1шт.

18

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

19

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

COUNTERSHAFT FRONT

1шт.

19

G10418

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

G10418

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

G10418

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

G10418

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

G10418

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

G10418

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

G10418

BEARING, BALL

COUNTERSHAFT FRONT - OPTIONAL

1шт.

20

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

2шт.

21

327068R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG EXT EXT

1шт.

22

3112846R1

THRUST WASHER

IDLER

1шт.

23

G10420

NEEDLE BEARING

REVERSE IDLER GEAR - SYNCHROMESH DRIVE TRACTORS -

1шт.

23

G10420

NEEDLE BEARING

NEEDLE REVERSE IDLER GEAR - SYNCHROMESH DRIVE TRACTORS - OPTIONAL

1шт.

24

3112845R1

SPACER

IDLER BEARING

1шт.

25

G10420

NEEDLE BEARING

REVERSE IDLER GEAR

1шт.

25

G10420

NEEDLE BEARING

NEEDLE REVERSE IDLER GEAR - OPTIONAL

1шт.

26

399838R3

SHAFT

REVERSE IDLER

1шт.

616387R1

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

1шт.

27

3112846R1

THRUST WASHER

IDLER

1шт.

28

3112847R91

KIT

REVERSE IDLER GEAR NEEDLE SLOW SPEED TRAIN TYPE A - CONSISTS OF

1шт.

3112843R1

GEAR

1шт.

G10420

NEEDLE BEARING

2шт.

3112845R1

SPACER

1шт.

3112846R1

THRUST WASHER

2шт.

399838R3

SHAFT

1шт.

28

3112848R92

10 NEEDLE BRG KIT

REVERSE IDLER GEAR NEEDLE FAST SPEED TRAIN TYPE B - CONSISTS OF

1шт.

70298C1

PINION

1шт.

G10420

NEEDLE BEARING

2шт.

3112845R1

SPACER

1шт.

3112846R1

THRUST WASHER

2шт.

399838R3

SHAFT

1шт.

29

70298C1

PINION

GEAR, REVERSE IDLER 20 AND 24T FAST SPEED TRAIN TYPE B

1шт.

29

3112843R1

GEAR

REVERSE IDLER 18 AND 27 T SLOW SPEED TRAIN TYPE A

1шт.

Выбрано товаров: 63
