Запчасти Case IH 485 (00B22) - SPEED TRANSMISSION - IN CLUTCH HOUSING - (04) - Drive Train

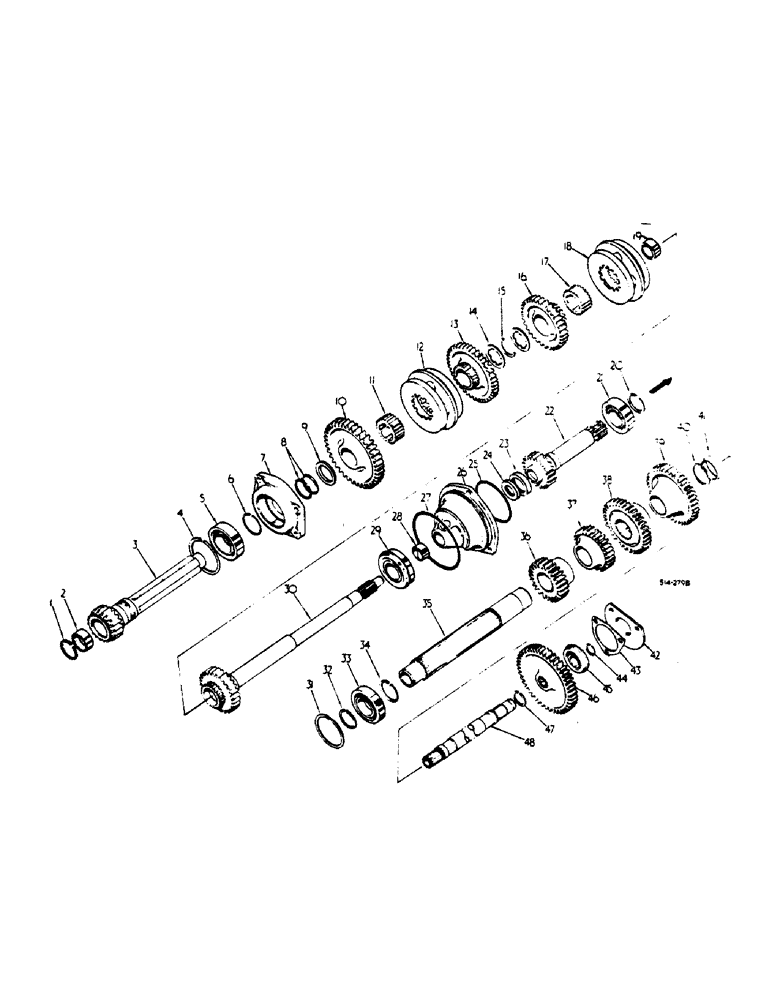

Схема запчастей Case IH 485 - (00B22) - SPEED TRANSMISSION - IN CLUTCH HOUSING - (04) - Drive Train
8
15
28
47
11
7
2
27
34
42
33
1
26
18
9
21
6
43
20
17
23
29
41
4
35
22
44
40
10
36
38
31
25
12
5
32
14
16
19
45
13
39
48
46
24
37
30
3

Артикул

Название

Примечание

Количество

1

66014C1

SNAP RING

FRONT NEEDLE BRG INT

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

MAIN SHAFT NEEDLE

1шт.

3

65258C1

SHAFT

MAIN

1шт.

3

3118323R1

SHAFT

MAIN - TORQUE AMPLIFIER

1шт.

4

398334R1

SNAP RING

MAIN SHAFT BRG RETAINER INNER

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

MAIN SHAFT

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

MAIN SHAFT

1шт.

5

3048701R91

BALL BEARING

MAIN SHAFT

1шт.

5

704234R91

BALL BEARING

MAIN SHAFT

1шт.

5

71271C91

BALL BEARING

MAIN SHAFT - OPTIONAL

1шт.

6

327068R1

RING, SNAP

RING SNAP MAIN SHAFT BRG RETAINER OUTER

1шт.

7

534411R1

BEARING ASSY

CAGE ASSY, MAIN SHAFT BRG

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

MAINSHAFT LUB LINE SEAL

2шт.

9

398332R2

THRUST WASHER

RING

1шт.

10

398269R2

GEAR

1ST SPEED DRIVEN -44T SLOW SPEED TRAIN TYPE A

1шт.

10

398331R3

PINION

GEAR, 1ST SPEED DRIVEN - 41T FAST SPEED TRAIN TYPE B

1шт.

11

398325R1

HUB

3RD AND 4TH SPEED SHIFT

1шт.

12

65793C5

SYNCHRONIZER

PACKAGE - SERVICE

1шт.

13

398270R4

PINION

GEAR, 2ND SPEED DRIVEN - 39 SLOW SPEED TRAIN TYPE A

1шт.

13

398330R4

PINION

GEAR, 2ND SPEED DRIVEN - 33T FAST SPEED TRAIN TYPE B

1шт.

14

398328R3

THRUST WASHER

MAIN SHAFT

2шт.

15

398329R1

CIRCLIP

SYNCHRONIZER LOCATING

1шт.

16

398330R4

PINION

GEAR, 3RD SPEED DRIVEN - 33T SLOW SPEED TRAIN TYPE A

1шт.

16

398327R4

PINION

GEAR, 4TH SPEED DRIVEN 24T FAST SPEED TRAIN TYPE B

1шт.

17

398325R1

HUB

1ST AND 2ND SPEED SHIFT

1шт.

18

65793C5

SYNCHRONIZER

PACKAGE - SERVICE

1шт.

19

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

CLUTCH SHAFT

1шт.

20

101-11177

SNAP RING,#177, 1.657", Ext

IPTO DRIVE SHAFT BRG RETAINER

1шт.

21

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

IPTO DRIVE SHAFT

1шт.

21

65354C91

BALL BEARING

IPTO DRIVE SHAFT

1шт.

21

67653C91

BEARING

IPTO DRIVE SHAFT - OPTIONAL

1шт.

22

71230C2

SHAFT

IPTO DRIVE

1шт.

22

71231C2

SHAFT

IPTO DRIVE - 385

1шт.

23

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

IPTO DRIVE SHAFT

1шт.

24

1277445C2

SEAL

CLUTCH SHAFT

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 X 4 X 1/8

1шт.

26

398318R31

CAGE

IPTO AND CLUTCH SHAFT BRG - COMPLETE W/BUSHING

1шт.

27

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 X 5-5/8 X 1/8 BRG CAGE

1шт.

28

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

CLUTCH SHAFT

1шт.

29

70126C91

BALL BEARING

CLUTCH SHAFT

1шт.

29

398323R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

CLUTCH SHAFT

1шт.

29

42347D

BALL BEARING

CLUTCH SHAFT

1шт.

29

3066862R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

3066860R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

CLUTCH SHAFT - OPTIONAL

1шт.

30

1502168C1

SHAFT

CLUTCH

1шт.

31

574964R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG

1шт.

32

101-11177

SNAP RING,#177, 1.657", Ext

COUNTERSHAFT BRG

1шт.

33

452883R91

BALL BEARING

COUNTERSHAFT

1шт.

33

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

COUNTERSHAFT

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

COUNTERSHAFT

1шт.

33

67646C91

BALL BEARING

COUNTERSHAFT

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

COUNTERSHAFT - OPTIONAL

1шт.

34

398268R1

BUSHING

RING SPACER, 485, Start Serial: 7366

1шт.

34

398268R1

BUSHING

RING SPACER, 248, Start Serial: 862

1шт.

34

398264R1

SNAP RING,#215, 2.026", Ext

RETAINING, 1ST SPEED DRIVE GEAR SLOW AND/OR FAST, 385 485, Serial Range: -7367

1шт.

34

398264R1

SNAP RING,#215, 2.026", Ext

RETAINING, 1ST SPEED DRIVE GEAR SLOW AND/OR FAST, 248, Serial Range: -863

1шт.

35

404089R2

SHAFT

SPEED TRANSMISSION

1шт.

36

404095R1

GEAR

1ST SPEED DRIVE, 23T - SLOW SPEED TRAIN TYPE A

1шт.

36

404093R1

GEAR

GEAR, 1ST SPEED DRIVE, 26T - FAST SPEED TRAIN TYPE B

1шт.

37

404094R1

PINION

GEAR, 2ND SPEED DRIVE, 28T - SLOW SPEED TRAIN TYPE A

1шт.

37

404092R1

PINION

GEAR, 2ND SPEED DRIVE, 34T- FAST SPEED TRAIN TYPE B

1шт.

38

404092R1

PINION

GEAR, 3RD SPEED DRIVE, 34T- SLOW SPEED TRAIN TYPE A

1шт.

38

404091R1

PINION

GEAR, 4TH SPEED DRIVE, 43T- FAST SPEED TRAIN TYPE B

1шт.

39

404090R1

PINION

GEAR, CONSTANT MESH DRIVEN 39T

1шт.

40

398264R1

SNAP RING,#215, 2.026", Ext

CONSTANT MESH DRIVEN GEAR RETAINING

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT FRONT

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT FRONT - OPTIONAL

1шт.

42

398259R1

LARGE PLATE

PLATE, LARGE RETAINER, IPTO DRIVEN SHAFT FRONT BRG CAP

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

43

398260R3

GASKET,0.89mm Thk

IPTO DRIVEN SHAFT FRONT BRG RETAINER

1шт.

44

555601R1

RING, SNAP

RING SNAP IPTO DRIVEN SHAFT FRONT BRG RETAINER

1шт.

45

69384C91

BALL BEARING

IPTO DRIVEN SHAFT FRONT

1шт.

45

65353C91

BALL BEARING

IPTO DRIVEN SHAFT FRONT

1шт.

45

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

IPTO DRIVEN SHAFT FRONT

1шт.

45

67654C91

BALL BEARING

IPTO DRIVEN SHAFT FRONT - OPTIONAL

1шт.

46

404213R1

GEAR

IPTO DRIVEN 53T -385-

1шт.

46

1342559C2

GEAR

IPTO DRIVEN, 46T - TRACTORS W/DUAL SPEED IPTO, Serial Range: -2644

1шт.

46

1342559C2

GEAR

IPTO DRIVEN, 46T - TRACTORS W/DUAL SPEED IPTO, Start Serial: 4600

1шт.

46

527770R1

GEAR

IPTO DRIVEN, 46T - AND TA DRIVE

1шт.

-33T- - TRACTORS W/TORQUE AMP FITTED - W/DE-LUXE CAB, Start Serial: 2645

1шт.

-33T- - TRACTORS W/TORQUE AMP FITTED - W/DE-LUXE CAB, Serial Range: -4599

1шт.

47

399837R1

SNAP RING,#118, 1.121", Ext

IPTO DRIVEN GEAR RETAINER

1шт.

48

536748R1

SHAFT ASSY.

IPTO DRIVEN

1шт.

1502169C91

FIP KIT

- AS REQUIRED - CONSISTS OF

1шт.

398318R31

CAGE

1шт.

1502168C1

SHAFT

CLUTCH

1шт.

71230C2

SHAFT

IPTO DRIVE

1шт.

Выбрано товаров: 90
