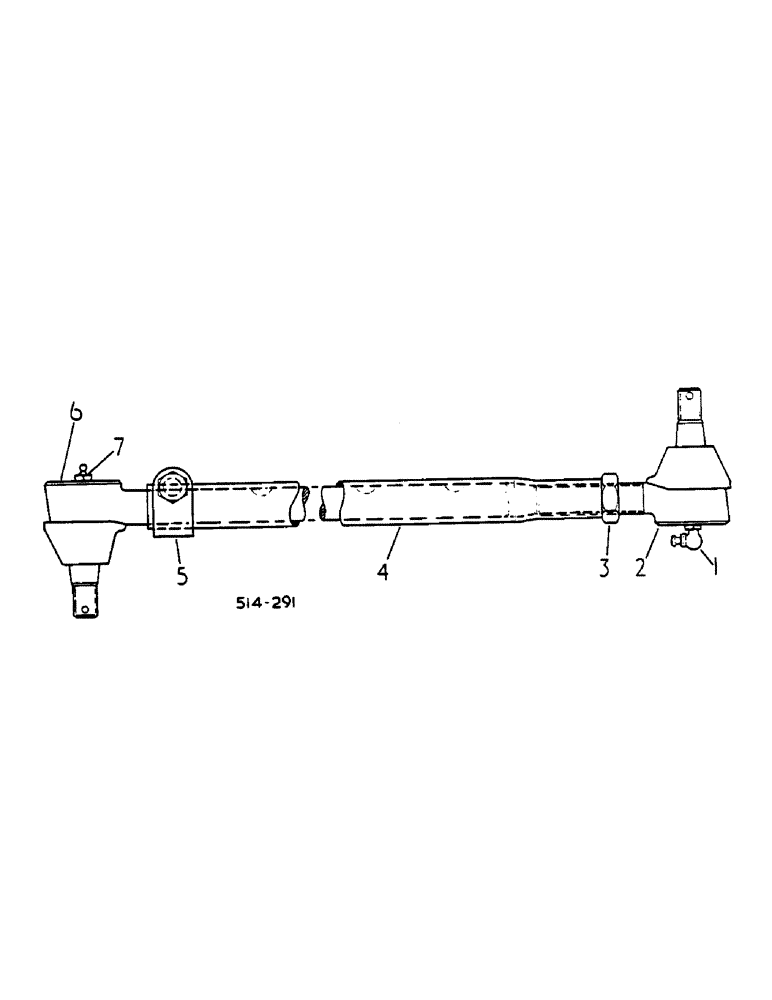

Запчасти Case IH 485 (C05-3) - TIE ROD ASSEMBLY Suspension

.

ROD ASSY, ADJ TIE - IH

2шт.

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 90 DEG SPECIAL TAPER DRIVE THD SELF TAP

1шт.

2

527658R91

BALL JOINT

END ASSY, RH

1шт.

2

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

.

425-139

SLOTTED NUT,9/16"-18, G5

9/16-18 SLT HEX

1шт.

.

80755

COTTER PIN,1/8" OD x 1" L

1шт.

3

390686R1

JAM NUT

11/16-18 HEX JAM

1шт.

4

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

1шт.

5

43747D

CLAMP

1шт.

.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 X 1-7/8 HEX HD P

1шт.

.

92-31044

LOCK WASHER,7/16"

1шт.

.

271505

BODY

7/16

1шт.

6

3116321R93

TIE-ROD

TIE ROD LH

1шт.

.

425-139

SLOTTED NUT,9/16"-18, G5

9/16-18 SLT HEX

1шт.

.

80755

COTTER PIN,1/8" OD x 1" L

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
