(C01-3) - FRONT BOLSTER, FOR USE WITH CAMERON GARDNER LOADER

Запчасти Case IH 485 (C01-3) - FRONT BOLSTER, FOR USE WITH CAMERON GARDNER LOADER Suspension

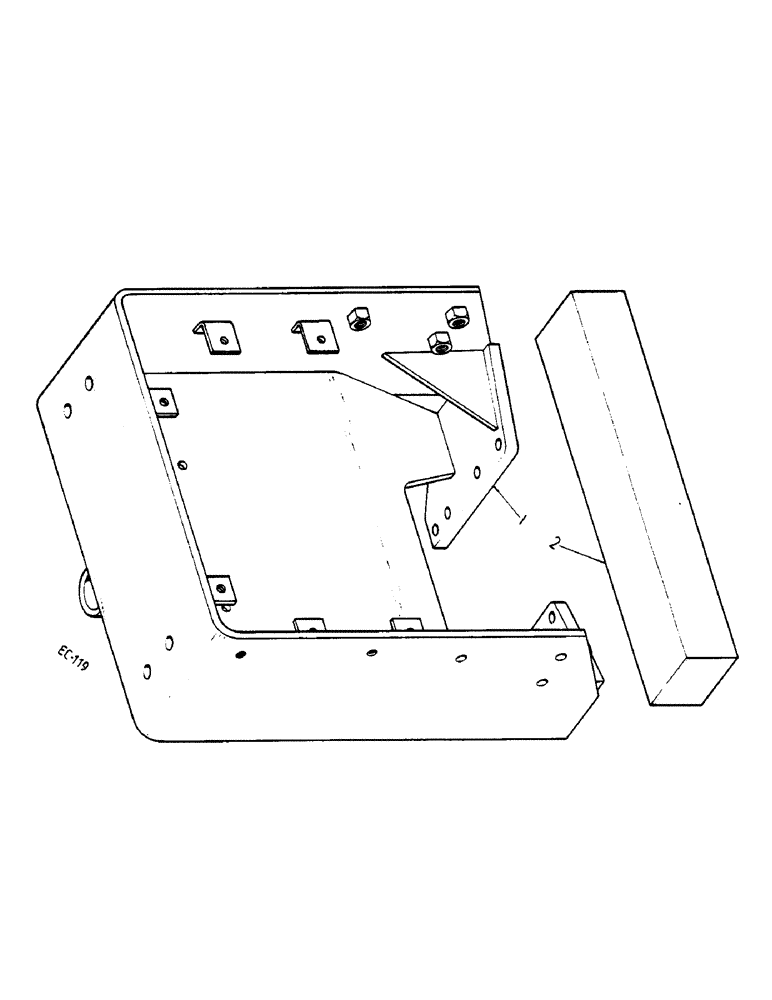

Схема запчастей Case IH 485 - (C01-3) - FRONT BOLSTER, FOR USE WITH CAMERON GARDNER LOADER Suspension
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1204293C1

BOLSTER

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

8шт.

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5/8 TYPE A

8шт.

425-107

NUT,7/16"-14, G5

4шт.

492-11044

LOCK WASHER,7/16"

4шт.

2

397234R1

BAFFLE

SPARE PART FOAM

1шт.
