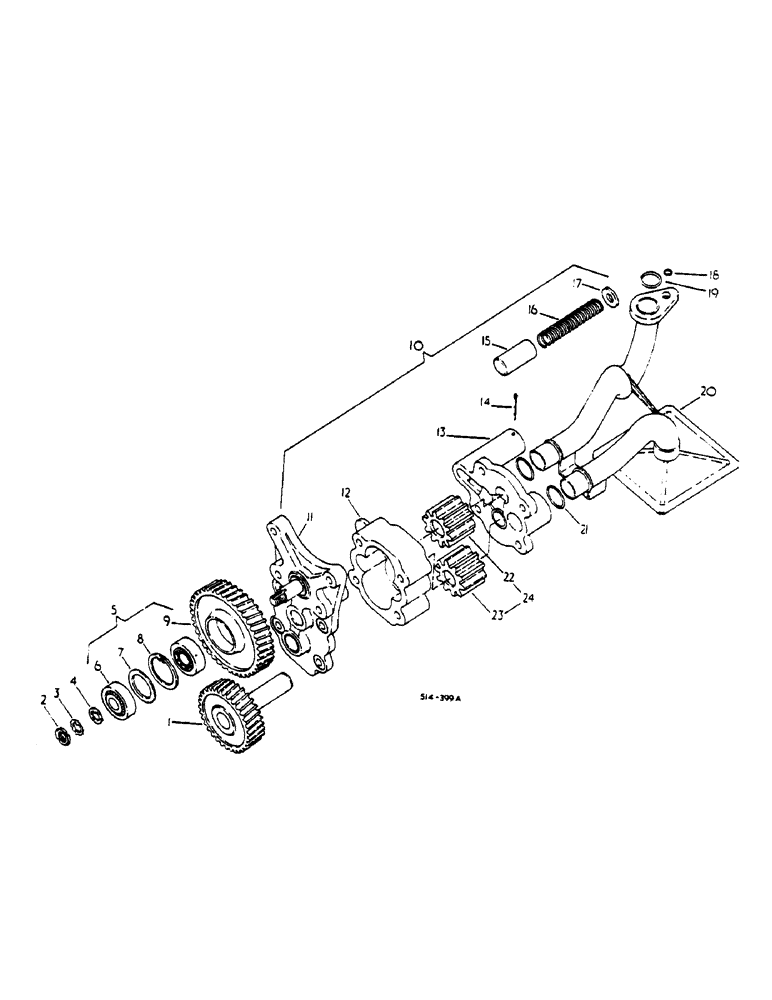

Запчасти Case IH 485 (0G23-2) - LUBRICATING OIL PUMP Power

3136429R95

PUMP, ENGINE OIL

CONSISTS ITEMS 2 THRU 17 INCL - AND ITEMS 22 AND 23

1шт.

492-11031

LOCK WASHER,5/16"

4шт.

61-516

HEX SOC SCREW,5/16"-18 x 1"

5/16-18 X 1 HEX-SOC-HD CAP

4шт.

1

3136437R9

GEAR ASSY, DRIVE

1шт.

2

3228141R1

LOCK NUT

SHAFT

1шт.

3

NOT USED

1шт.

4

NOT USED

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSY, IDLER - NOT FURNISHED AS AN ASSEMBLY

1шт.

6

3055294R91

TAPERED BEARING

2шт.

7

3055292R1

WASHER

WASHER

1шт.

8

933579R1

SNAP RING,M35, Int

1шт.

9

3055291R1

PINION

GEAR

1шт.

10

3136435R95

HOUSING ASSY.

CARRIER, W/3 PIN 932597R1

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

3шт.

11

NSS

NOT SOLD SEPARAT

CARRIER, C/W BUSHING - NOT SERVICED SEPARATELY

1шт.

12

NSS

NOT SOLD SEPARAT

CASE, OIL PUMP GEAR - NOT SERVICED SEPARATELY

1шт.

13

NSS

NOT SOLD SEPARAT

COVER ASSY, OIL PUMP - NOT SERVICED SEPARATELY

1шт.

492-11031

LOCK WASHER,5/16"

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

15

3055202R2

VALVE

PISTON RELIEF

1шт.

16

3136264R1

SPRING

PRESSURE RELIEF VALVE

1шт.

17

3139620R1

SPRING WASHER

SPRING

1шт.

18

717222R1

O-RING

1шт.

19

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

1шт.

20

3132828R94

PIPE ASSY.

OIL PRESSURE AND SUCTION

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

21

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

2шт.

22

NSS

NOT SOLD SEPARAT

GEAR, IDLER

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR

1шт.

24

3136440R91

GEAR-SET

OIL PUMP

1шт.
