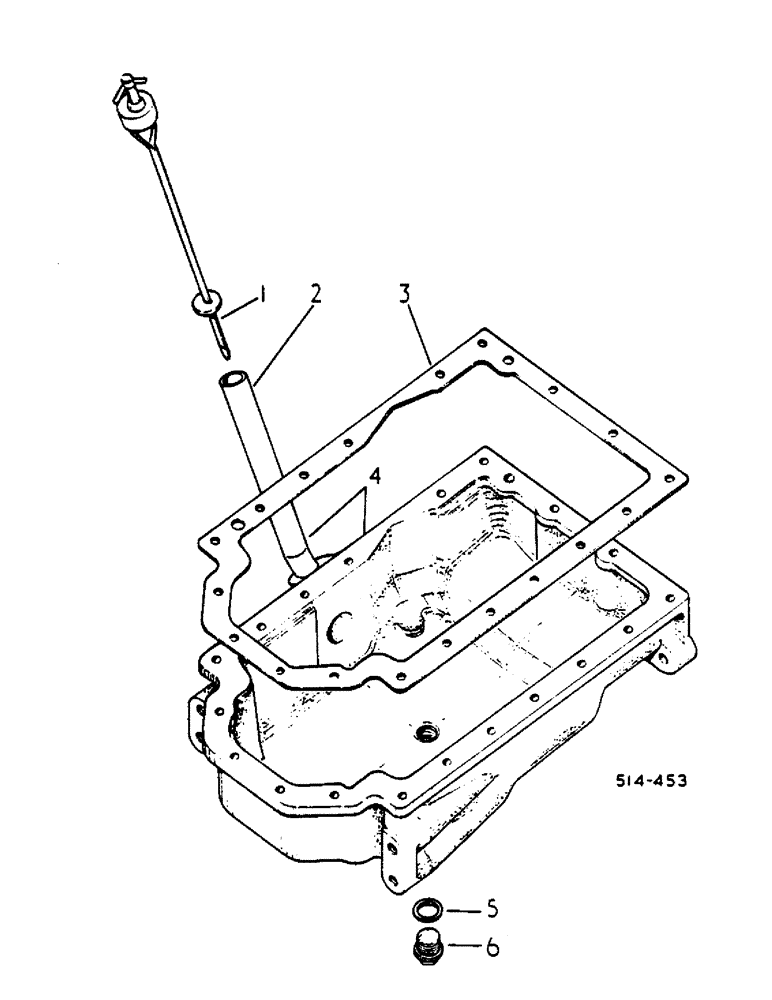

Запчасти Case IH 485 (0F12-2) - CRANKCASE OIL PAN Power

1

3136242R2

DIPSTICK

OIL LEVEL

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

OIL FILLING

1шт.

3

3055160R3

OIL PAN GASKET SET

OIL PAN

1шт.

4

3136042R95

SUMP

PAN ASSY, OIL

1шт.

353680X1

SCREW

5/16-18 X 1-1/8 HEX HD CAP

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

4шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

3050129R2

WASHER, LOCK

15шт.

5

933608R1

SEALING RING,M26 x 31 x 2

1шт.

6

3132544R2

PLUG

FILLER AND DRAIN

1шт.
