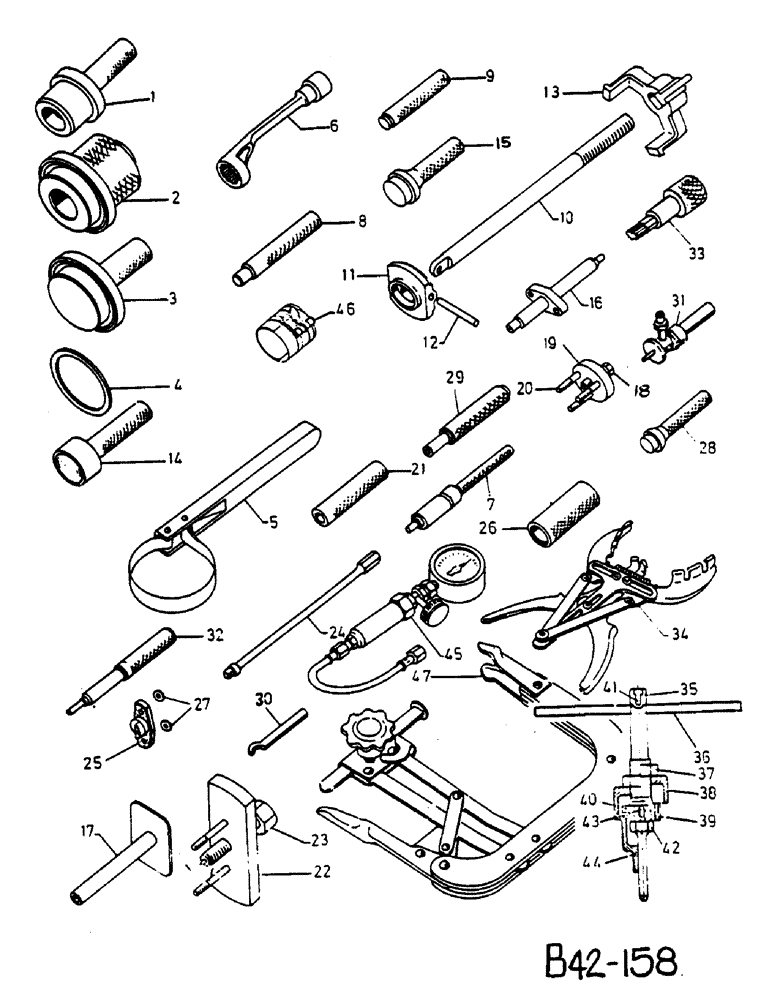

Запчасти Case IH 485 (0E15-2) - SERVICE TOOLS Power

3055714R97

TOOL

SET, SERVICE - CONSISTS OF

1шт.

1

3228342R1

TOOL

DRIFT PUNCH - FOR CRANKSHAFT FRONT OIL SEAL

1шт.

2

3228341R1

PUNCH

DRIFT PUNCH - FOR CRANKSHAFT FRONT OIL SEAL

1шт.

3

3055687R11

TOOL

DRIFT PUNCH - FOR OIL SEAL 3055310R92

1шт.

4

3055709R1

DISC

FOR DRIFT PUNCH - 3055687R11

1шт.

4

3055709R1

DISC

FOR DRIFT PUNCH - 3055687R11

2шт.

5

3136279R1

TOOL

WRENCH - FOR OIL FILTER

1шт.

6

3055795R2

TOOL

WRENCH - CRANKED FOR CYL HEAD BOLTS

1шт.

6

3055794R2

TOOL

WRENCH - CRANKED FOR CYL HEAD NUTS

1шт.

7

3132007R1

PLUG

SPARE PART GAUGE NOZZLE HOLDER SLEEVE

1шт.

8

3055679R1

TOOL

DRIFT PUNCH - FOR PISTON PIN 3055217R1

1шт.

9

3055684R1

TOOL

DRIFT - FOR SEALING CAP 933537R1

1шт.

9

3055703R1

TOOL

DRIFT - FOR TAPER ROLLER BEARING

1шт.

10

3055690R1

SPINDLE

CYLINDER SLEEVE PULLER

1шт.

425-1516

JAM NUT,Jam, 1"-14, G5

HEX THICK

1шт.

11

3055693R1

PLATE

CYLINDER SLEEVE PULLER

1шт.

NLS

NO LONGER SERVICED

HEADLESS SLTD OVAL POINT

1шт.

12

2700167R1

PIN

SLEEVE PULLER JOINT

1шт.

13

3055691R1

TOOL

CYLINDER SLEEVE PULLER TRIPOD

1шт.

14

3055688R11

TOOL

DRIFT PUNCH - FOR EXPANSION PLUG

1шт.

15

3055694R1

TOOL

DRIFT PUNCH - FOR U-PLUG

1шт.

16

3055712R11

ADAPTER

COMPRESSION GAUGE

1шт.

17

3055704R11

BRACKET

PIPE, SPRING COMPRESSION

1шт.

18

2700159R1

SCREW

SPINDLE, PRESSURE

1шт.

19

2711375R11

PLATE, PULLER

1шт.

20

2711376R1

BOLT

3шт.

934788R1

COTTER PIN,M2 x 16

3шт.

21

3055699R1

TOOL

DRIFT PUNCH - FOR VALVE GUIDE

1шт.

3055707R91

TOOL

PULLER - FOR CRANKSHAFT PULLEY - CONSISTS

1шт.

3055707R91

TOOL

1шт.

3055707R91

TOOL

1шт.

413-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

2шт.

279826

BOLTS

2шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

22

8003/02029

COMPOSITE RING

PLATE, DETACHING PULLER

1шт.

413-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

5/16-18 X 1-7/8 HEX HD

2шт.

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

23

3055707R91

TOOL

PRESSURE PULLER

1шт.

24

3055700R1

TOOL

EXTENSION

1шт.

25

3132000R91

TOOL

WINDOW, TIMING, ENGINE - CONSISTS

1шт.

3079021R1

WASHER

2шт.

3132002R1

BOLT,Fillister

SPARE PART

2шт.

3132000R91

TOOL

1шт.

3132004R1

GASKET

1шт.

26

3055702R1

BUSHING

FOR PACKING 3055285R92

1шт.

27

3079021R1

WASHER

ENGINE TIMING WINDOW

2шт.

28

3055695R1

TOOL

DRIFT PUNCH - FOR SEALING 933573R1

1шт.

28

3055698R1

TOOL

DRIFT PUNCH - FOR INSERT 3132005R1

1шт.

29

3132006R1

GUIDE

SPARE PART COUNTER NOZZLE HOLDER SLEEVE

1шт.

30

3055706R1

TOOL

HOOK WRENCH

1шт.

31

3144778R3

ELECTRICAL GAUGE

INJ TIMING ADV AND FEED

1шт.

3218090R1

FLANGE

SPARE PART INTERMEDIATE

1шт.

32

3055696R1

TOOL

DRIFT FOR SLEEVE 3055344R1

1шт.

32

3136223R1

TOOL

DRIFT FOR SLEEVE 3132025R1

1шт.

3132005R1

TOOL

DRIFT FOR SLEEVE 3055406R1

1шт.

33

3132291R1

TOOL

SPARE PART SOCKET, SCREW, BALANCE WEIGHT- CRANKSHAFT (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

34

2712136R91

EXPANDER

PISTON RING (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

3132120R91

TOOL KIT

SPARE PART EXHAUST VALVE SEAT (NOT INCLUDED IN SERVICE TOOL SETS) - CONSISTS ITEMS 35 - 44 INCL

1шт.

35

3132357R1

SHAFT

REAMER (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

36

3132356R1

REAMER

ROD, SHAFT (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

37

219755

BACK-UP RING

1-14 HEX JAM (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

38

3132355R1

SPACER

(NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

39

3132358R1

REAMER

TOOL - 0-40 /VERSIZE (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

39

3132359R1

TOOL

REAMER - 0-15 OVERSIZE (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

40

3132363R1

CUTTER

TOOL, REAMER TAPERED (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

41

426816

SCREW,Hex Soc Hd, 1/4"-20 x 3/4"

1/4-20 X 3/4 HEX SOC , HD CAP (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

42

329-1410

JAM NUT,Jam, 5/8"-11, G8

Not included in service tool sets

1шт.

43

932666R1

KEY

(NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

44

3132360R1

BUSHING

ADJUSTER (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

45

2712141R91

GAUGE

SPARE PART COMPRESSION (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

46

2712139R91

TOOL

SPARE PART COMPRESSOR, PISTON RING (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

47

2712138R91

COMPRESSOR

SPARE PART VALVE SPRING (NOT INCLUDED IN SERVICE TOOL SETS)

1шт.

3132743R95

TOOL KIT

SET, SERVICE TOOLS - SMALL - CONSISTS OF

1шт.

3228341R1

PUNCH

PUNCH (NOT ILLUSTRATED)

1шт.

3055687R11

TOOL

PUNCH (NOT ILLUSTRATED)

1шт.

3055709R1

DISC

(NOT ILLUSTRATED)

1шт.

3055709R1

DISC

(NOT ILLUSTRATED)

2шт.

3055795R2

TOOL

WRENCH (NOT ILLUSTRATED)

1шт.

3055690R1

SPINDLE

(NOT ILLUSTRATED)

1шт.

3355693R1

PLATE (NOT ILLUSTRATED)

1шт.

2700167R1

PIN

(NOT ILLUSTRATED)

1шт.

3055691R1

TOOL

TRIPOD (NOT ILLUSTRATED)

1шт.

3055712R11

ADAPTER

(NOT ILLUSTRATED)

1шт.

3055704R11

BRACKET

PIPE (NOT ILLUSTRATED)

1шт.

2700159R1

SCREW

SPINDLE (NOT ILLUSTRATED)

1шт.

2711375R11

PULLER (NOT ILLUSTRATED)

1шт.

2711376R1

BOLT

(NOT ILLUSTRATED)

3шт.

934788R1

COTTER PIN,M2 x 16

(NOT ILLUSTRATED)

1шт.

3055699R1

TOOL

PUNCH (NOT ILLUSTRATED)

1шт.

3055700R1

TOOL

EXTENSION (NOT ILLUSTRATED)

1шт.

3055702R1

BUSHING

(NOT ILLUSTRATED)

1шт.

3055696R1

TOOL

PUNCH (NOT ILLUSTRATED)

1шт.

3136223R1

TOOL

PUNCH (NOT ILLUSTRATED)

1шт.
