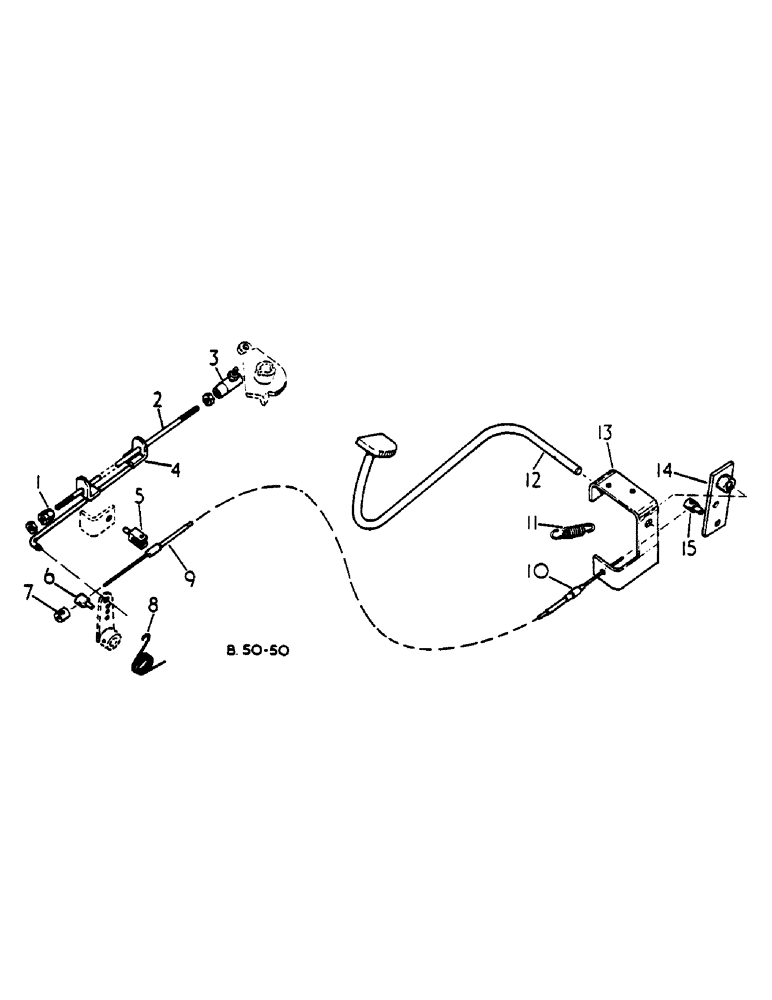

Запчасти Case IH 485 (0E09-2) - FOOT ACCELERATOR, MACHINES FITTED W/CAB Power

1

528776R1

NUT

FOOT ACCELERATOR PICK-UP ROD SWIVEL

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

528775R1

ROD

FOOT ACCELERATOR

1шт.

3

276835R91

BALL JOINT,1/4" - 28 x 1"

1/4 UNF

1шт.

3

276835R91

BALL JOINT,1/4" - 28 x 1"

1/4 UNF

1шт.

3

276835R91

BALL JOINT,1/4" - 28 x 1"

1/4 UNF

1шт.

4

3121956R1

ROD ASSY.

BELL CRANK PULL

1шт.

732-1616

COTTER PIN,M1.6 x 16

1.6 X 16 MM COTTER

1шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 X 17 X 1.6 MM

1шт.

5

534621R1

CLAMP

SWIVEL

1шт.

32-410

COTTER PIN,1/16" x 5/8"

1шт.

492-11010

LOCK WASHER,#10

1шт.

463-61012

SCREW,Hex Hd, #10-32 x 3/4"

NO 10-32 X 3/4 HEX HD MACH

1шт.

225-14210

NUT,#10-32

1шт.

6

3121958R2

PIVOT

FOOT ACCELERATOR CABLE

1шт.

933346R1

WASHER,M6 x 12 x 1.6

6.4 X 12.5 X 1.6 MM

1шт.

190003920034

PIN, SPLIT (COTTER)

PIN, COTTER 1.6 X 10 MM COTTER

1шт.

7

3121959R1

STOP

FOOT ACCELERATOR CABLE END

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

NO 8-32 X 3/8 FILL SLT MACH

1шт.

8

539012R2

SPRING

TORSION

1шт.

9

1502356C1

CABLE,1046mm L

1шт.

10

677516R1

BUSHING

1шт.

11

704526R1

SPRING

ACCEL BELL CRANK ARM RETURN

1шт.

12

3121948R3

PEDAL ASSY.

FOOT ACCELERATOR

1шт.

13

3121950R2

BRACKET

PEDAL ASSY FOOT ACCELERATOR

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

2шт.

425-115

NUT,5/16"-24, G5

2шт.

14

1287742C1

ARM ASSY.

ACCELERATOR BELL CRANK

1шт.

15

396388R1

PIVOT

ACCELERATOR ARM

1шт.

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1/8" x 7/8", Slotted

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

1шт.

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

1/4 X 1/2 X .036

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 FIL HD SLT MACH

1шт.
