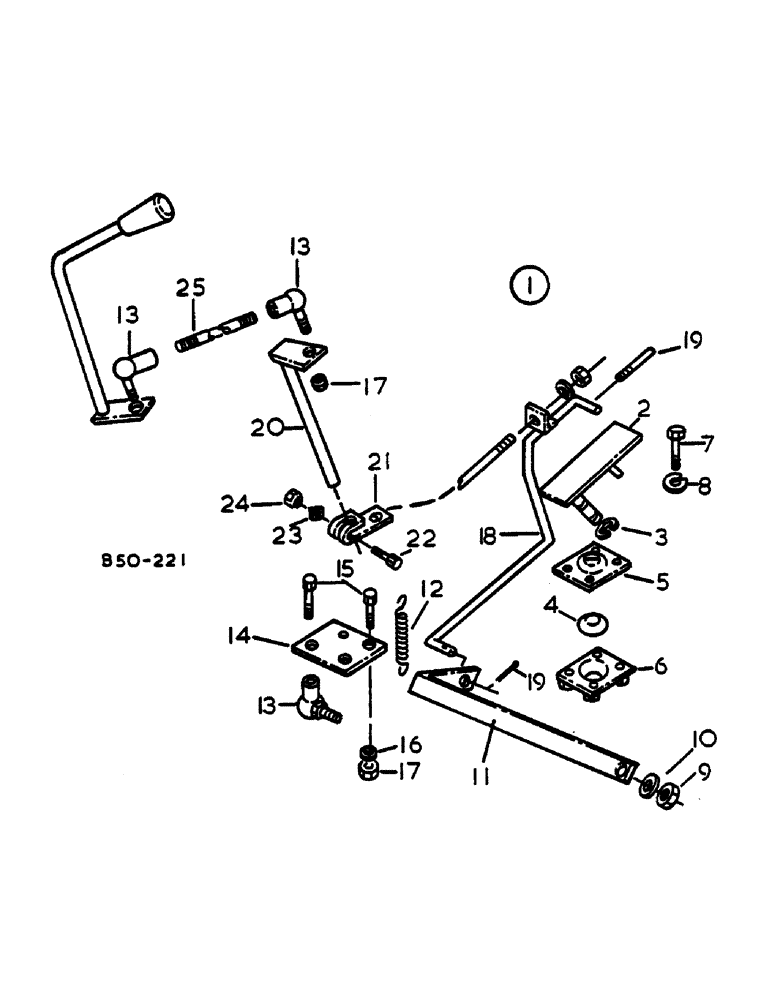

Запчасти Case IH 485 (0E07-2) - ACCELERATOR CONTROLS - SUPER DE-LUXE CAB Power

1

NOT APPLICABLE

1шт.

2

3125515R1

PEDAL

SPARE PART ACCELERATOR

1шт.

3

3125516R1

RING

SPARE PART RETAINING

1шт.

4

3125517R1

BALL

1шт.

5

3125518R1

SOCKET/RECEPTACLE

BALL UPPER

1шт.

6

3125519R1

SOCKET/RECEPTACLE

BALL LOWER

1шт.

7

3125520R1

SCREW

M5 X 12

4шт.

8

K651776

WASHER

TOOTHED

4шт.

9

3125521R1

NUT

M16

1шт.

10

3125522R1

WASHER

TOOTHED

1шт.

11

3125523R1

LEVER

CRANKED

1шт.

12

3125524R1

SPRING

SPARE PART

1шт.

13

K303757

BALL JOINT

BALL

1шт.

14

3125526R1

PLATE

TOGGLE

1шт.

15

3125527R1

SET

SCREW M6 X 16

3шт.

16

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

3шт.

17

829-1306

NUT,M6, Cl 10

3шт.

18

3125528R1

SHAFT

SPARE PART ACCELERATOR

1шт.

19

3125529R1

PIN

2.5 X 18

2шт.

20

3125530R1

SHAFT

THROTTLE

1шт.

21

3125531R1

LEVER

THROTTLE

1шт.

22

3125532R1

SCREW

SPARE PART M6 X 12 POINTED

1шт.

23

NOT APPLICABLE

1шт.

24

829-1306

NUT,M6, Cl 10

1шт.

25

3125533R1

ROD

TIE

1шт.
