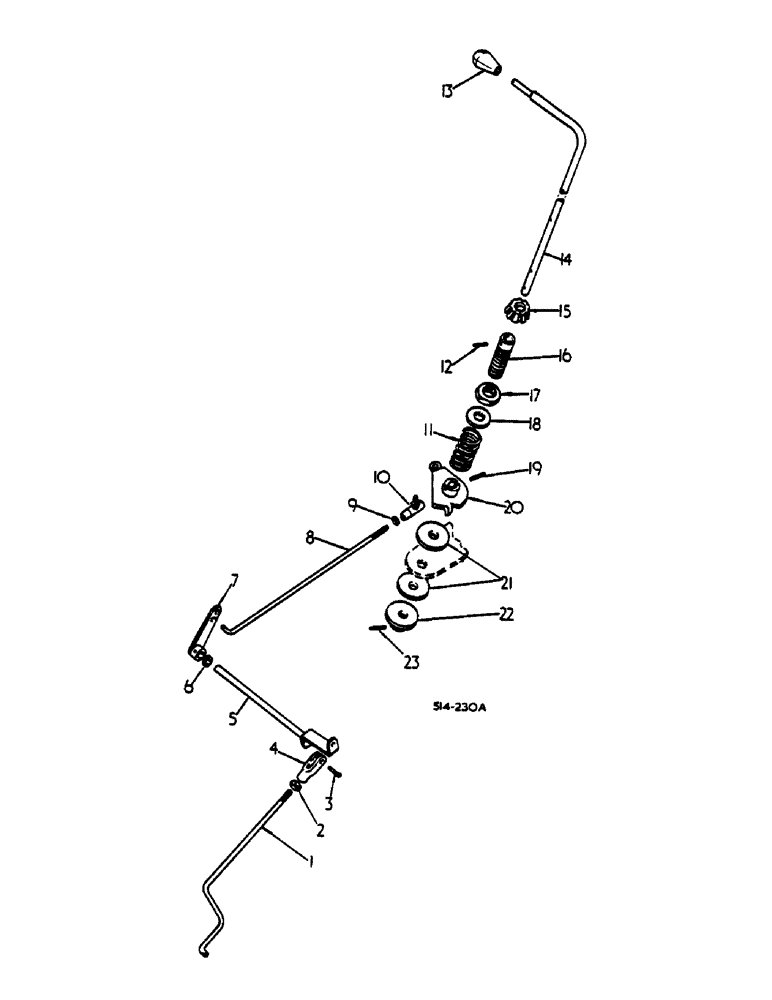

Запчасти Case IH 485 (0E05-2) - GOVERNOR CONTROLS - BOSCH Power

1

528321R4

ROD

FRONT GOVERNOR CONTROLS

1шт.

PIN, 1/16 X 1/2 COTTER

1шт.

2

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

3

427-4077

CLEVIS PIN,1/4" x .770"

1/4 X .766 ROD END

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

Short adj rod end

1шт.

5

528325R2

ARM

GOVERNOR CONTROL IDLER

1шт.

6

95-51041

WASHER,3/8" x 7/8" x .083"

13/32 X 3/4 X 16 GA PLAIN

1шт.

6

20285H

WASHER

13/32 X 3/4 X 11 GA PLAIN - OPTIONAL

1шт.

7

539572R3

LEVER ASSY.

IDLER ARM

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

5/32" x 7/8", Coiled

1шт.

8

528336R3

ROD

REAR GOVERNOR CONTROL

1шт.

432-48

COTTER PIN,1/16" x 1/2"

5/32 X 7/8 HV COILED SPRING

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

10

276835R91

BALL JOINT,1/4" - 28 x 1"

1/4-28

1шт.

10

276835R91

BALL JOINT,1/4" - 28 x 1"

1/4-28

1шт.

10

276835R91

BALL JOINT,1/4" - 28 x 1"

1/4-28 - OPTIONAL

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

92-4

LOCK WASHER,1/4"

1шт.

11

65344C1

SPRING

GOVERNOR FRICTION CONTROL

1шт.

12

38-31014

PIN,5/32" x 7/8", Coiled

5/32 X 1 HV COILED SPRING

1шт.

13

1536683C1

HANDLE GRIP

KNOB, GOVERNOR CONTROL HANDLE

1шт.

14

3121391R6

ROD

GOVERNOR CONTROL HANDLE

1шт.

15

528290R1

GUIDE RING

COLLAR, GOVERNOR CONTROL HANDLE

1шт.

83-3086

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX SOC HD F PT

1шт.

16

65345C1

SPACER

ADJUSTABLE

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 ZND HEX JAM

1шт.

18

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 X 1-1/2 X .120 ZND

1шт.

19

38-31014

PIN,5/32" x 7/8", Coiled

5/32" x 7/8", Coiled

1шт.

20

528291R3

ARM ASSY.

GOVERNOR CONTROL ROD

1шт.

21

3123275R1

FRICTION WASHER

GOVERNOR CONTROL

2шт.

22

528294R1

PLATE ASSY.

GOVERNOR CONTROL FRICTION

1шт.

63370

PIN,5/32" x 1", Slotted

1шт.

23

38-31014

PIN,5/32" x 7/8", Coiled

5/32" x 7/8", Coiled

1шт.
