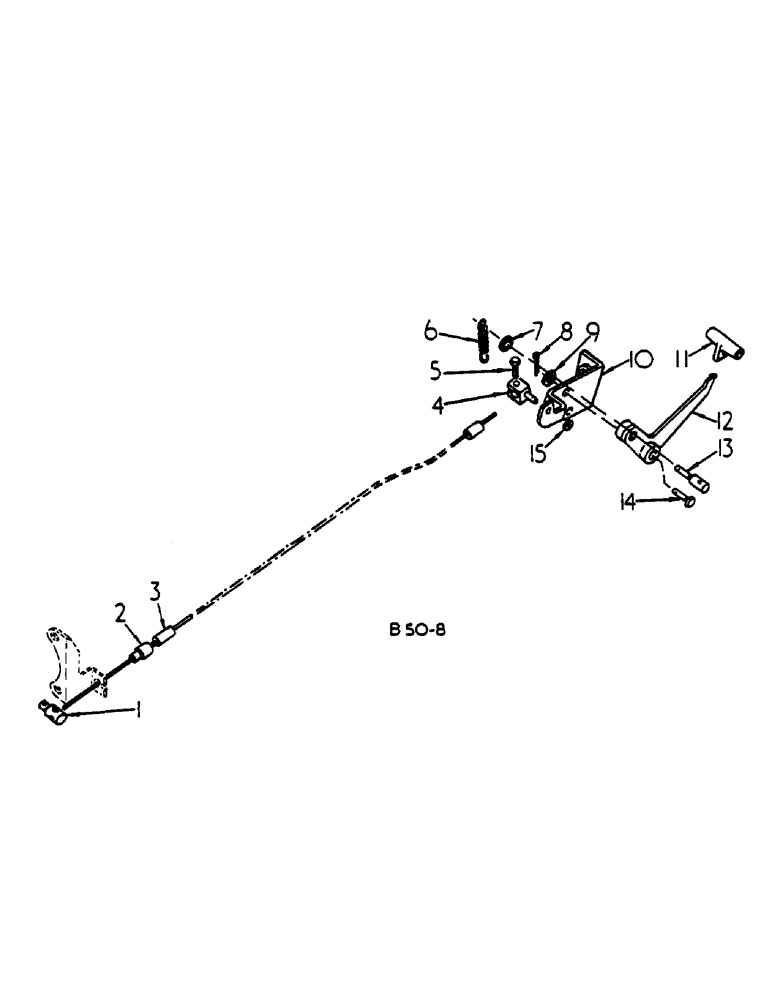

Запчасти Case IH 485 (0E01-2) - FUEL SHUT OFF CONTROLS, UP TO 485/7098 Power

1

396388R1

PIVOT

FUEL SHUT OFF LEVER SWIVEL

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 SLT-FIL-HD

1шт.

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

1/4 X 1/2 X .036

1шт.

2

677516R1

BUSHING

FUEL SHUTOFF CONTROL CABLE

1шт.

3

3112806R1

CABLE

FUEL SHUT OFF CONTROL

1шт.

3

3125552R1

CABLE

FUEL SHUT OFF CONTROL - SEKURA 382301

1шт.

4

534621R1

CLAMP

CABLE SWIVEL

1шт.

4

536852R1

CLAMP

CABLE SWIVEL - OPTIONAL

1шт.

32-410

COTTER PIN,1/16" x 5/8"

1шт.

225-14210

NUT,#10-32

1шт.

492-11010

LOCK WASHER,#10

1шт.

5

463-61012

SCREW,Hex Hd, #10-32 x 3/4"

10/32 X 3/4 C-Z HEX HD MACH

1шт.

6

528998R2

SPRING

FUEL SHUT OFF CONTROL CABLE

1шт.

7

528999R1

CIRCLIP

FUEL SHUT OFF CONTROL CABLE SPRING

1шт.

7

528999R1

CIRCLIP

FUEL SHUT OFF CONTROL CABLE SPRING - OPTIONAL

1шт.

8

648002

KNIFE

1/8" x 3/4"

1шт.

9

495-51041

WASHER,3/8"

3/8 X 13/32 X .060 C-Z

1шт.

10

528992R1

BRACKET

FUEL SHUT OFF LEVER

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

11

3121392R1

KNOB

CONTROL

1шт.

12

531335R1

ARM ASSY.

FUEL SHUT OFF CONTROL

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

SPARE PART 8/32 X 5/8 C-Z SLT-FIL-HD

1шт.

13

528997R1

BRACKET, PIVOT

PIVOT BRACKET FUEL SHUT OFF CONTROL CABLE

1шт.

14

23369R1

HEADED PIN,3/8" x 7/8"

1шт.

15

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

1/4 X 1/2 X .036

1шт.

289862R1

STRAP, CABLE LOCK (NOT ILLUSTRATED)

1шт.
