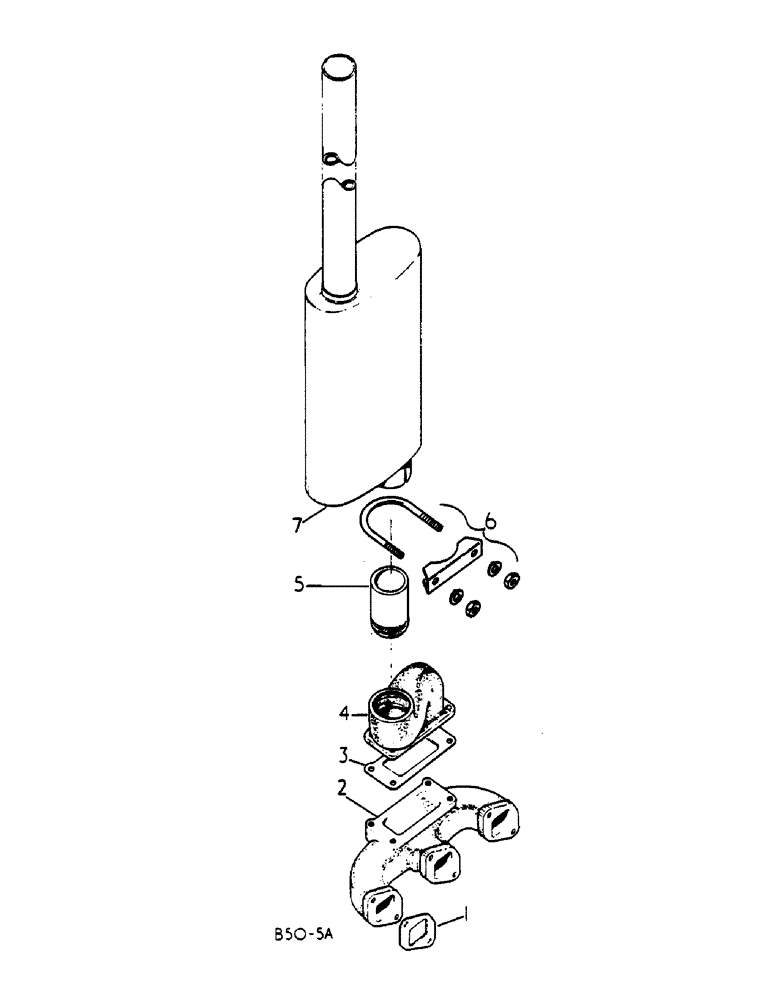

Запчасти Case IH 485 (0D23-2) - VERTICAL EXHAUST Power

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD

3шт.

2

3121373R3

MANIFOLD

1шт.

20285H

WASHER

13/32 X 3/4 X 11 GA

6шт.

425-116

NUT,3/8" - 24, Gr 5

Hex

6шт.

3

3136248R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD ELBOW

1шт.

4

3136250R1

ELBOW

EXHAUST MANIFOLD

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

5

80547C1

TUBE

385

1шт.

5

80547C1

TUBE

EXHAUST

1шт.

5

80547C1

TUBE

EXHAUST - SUPER DE-LUXE CAB

1шт.

5

80548C1

TUBE

EXHAUST - SWEDEN

1шт.

6

1502294C1

CLAMP

'U' TYPE MUFFLER

1шт.

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8-16 X 1-1/2 HEX HD - FOR USE W/CLAMP 403585R1

1шт.

492-11038

LOCK WASHER,3/8"

For use w/clamp 403585R1

1шт.

425-106

NUT,3/8"-16, Cl 5

For use w/Clamp 403585R1

1шт.

7

3123869R1

MUFFLER

1шт.

7

3121378R2

MUFFLER

1шт.

7

3125788R1

MUFFLER

OPTIONAL

1шт.
