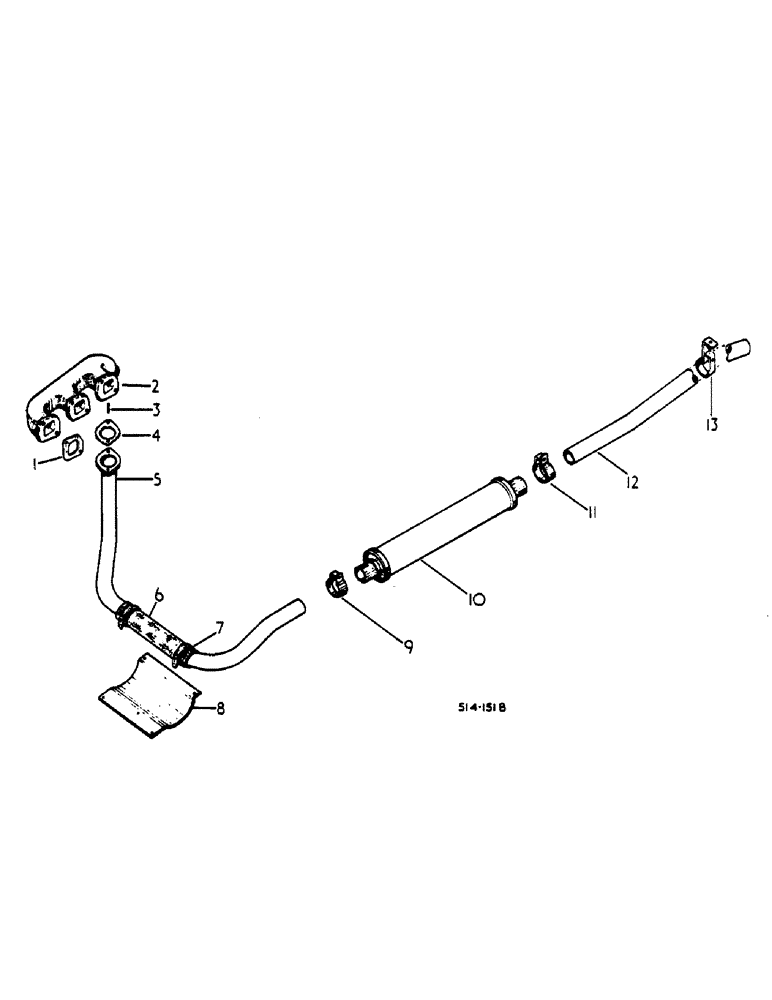

Запчасти Case IH 485 (0D21-2) - UNDERSLUNG EXHAUST AND MANIFOLD Power

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD

3шт.

2

3055124R12

MANIFOLD ASSY

EXHAUST

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex

8шт.

492-11038

LOCK WASHER,3/8"

2шт.

20285H

WASHER

13/32 X 3/4 X 11 GA

6шт.

3

3228189R1

STUD

EXHAUST MANIFOLD

2шт.

4

401486R2

MANIFOLD GASKET

EXHAUST MANIFOLD PIPE

1шт.

5

401485R12

PIPE ASSY.

EXHAUST MANIFOLD

1шт.

66287C91

PIPE

EXHAUST MANIFOLD - 385

1шт.

6

114614C1

SHIELD

FIBRE GLASS HEAT

1шт.

7

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

#32 hose

2шт.

8

401488R1

GUARD

PIPE

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

9

67672R1

CLAMP, MUFFLER

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 ZND HEX HD CAP

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

10

401489R2

MUFFLER

1шт.

11

67672R1

CLAMP, MUFFLER

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 HEX HD CAP

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

12

401490R2

PIPE

TAIL

1шт.

13

3125262R1

SUPPORT

TAIL PIPE REAR

1шт.

413-1014

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 ZND HEX HD CAP

1шт.

92-11062

LOCK WASHER,5/8"

1шт.
